PE Large Pipe Line

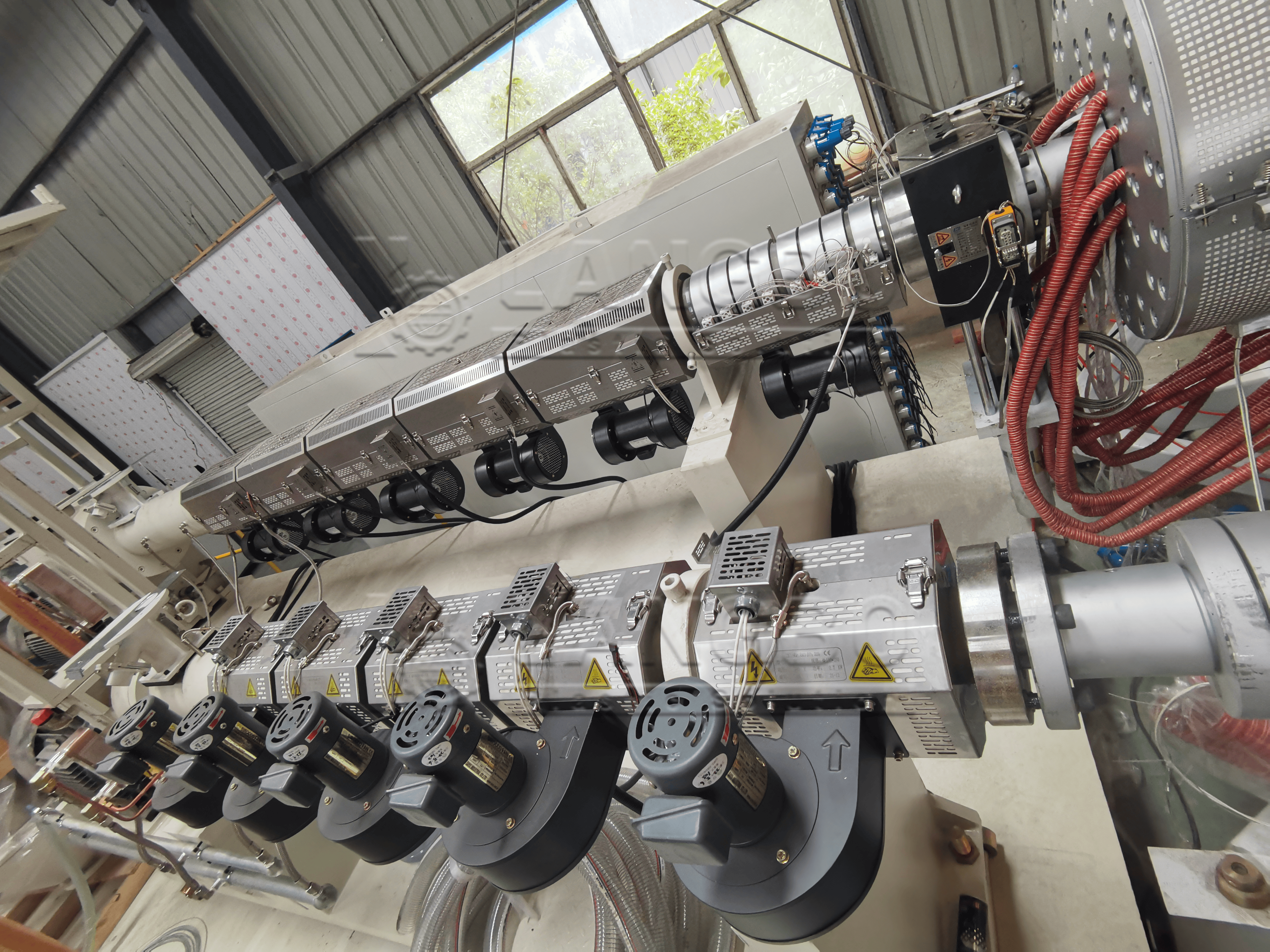

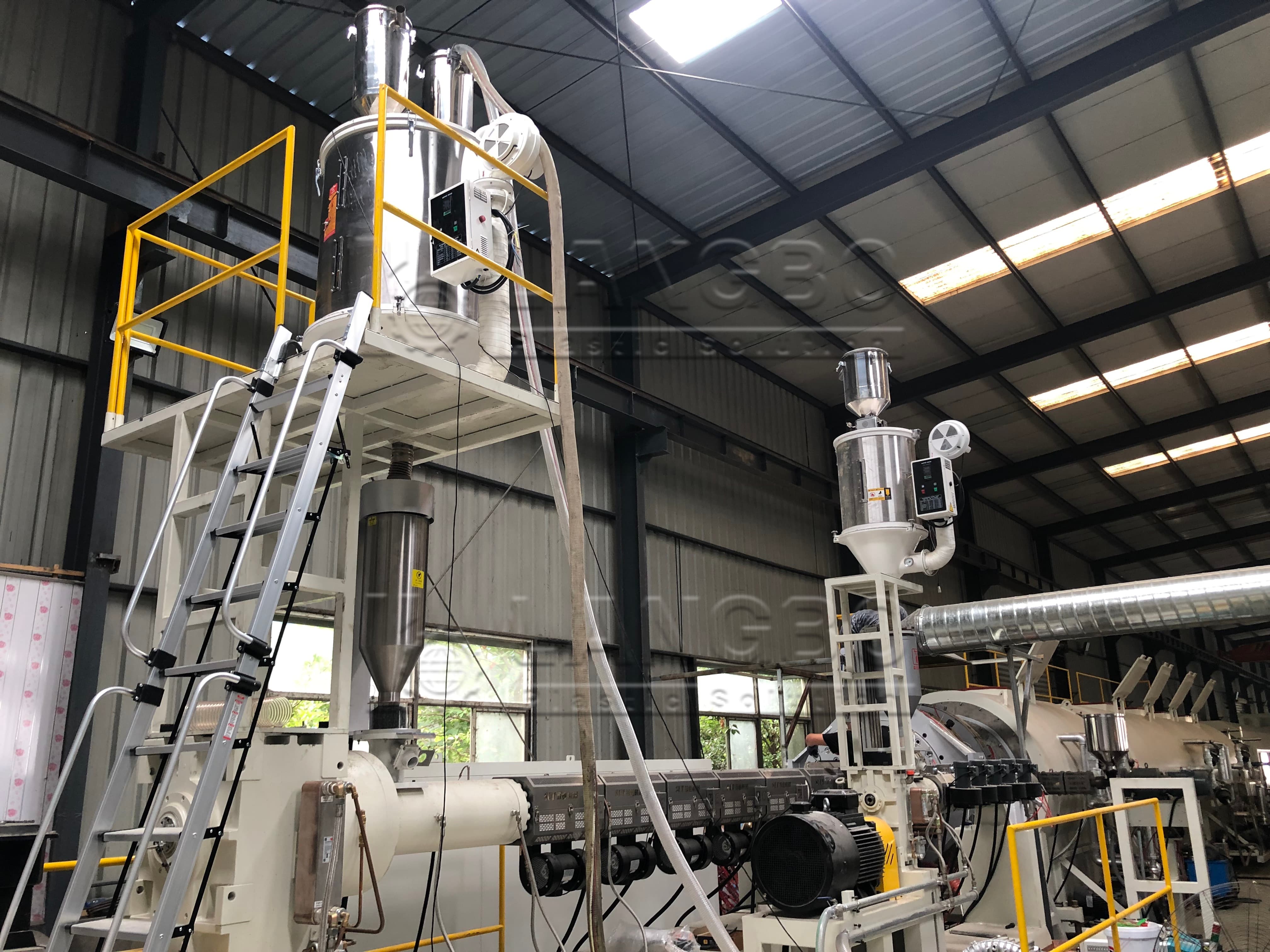

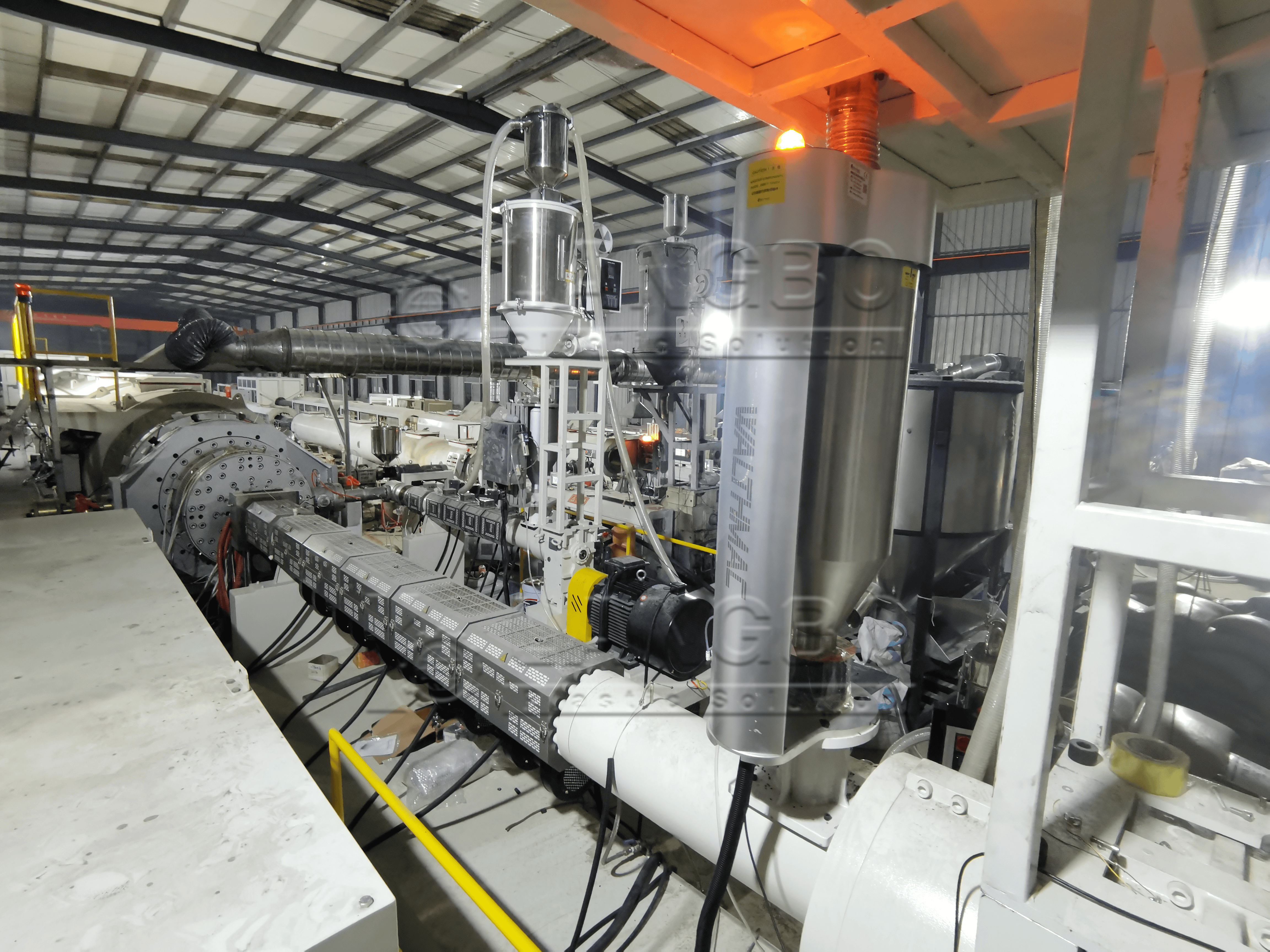

Extruders with Platform

Clever matching between motor and screw based on production condition for high performance and output
High processing torque design for better plasticizing
Surface coated screw and barrel for long service time
Platform for co-extruders ensures operation safety and convenience

Mould

Specially designed of flow channel for superb pipe shaping and reasonable melt pressure. The large spiral distributor ensures the excellent plasticizing effect.

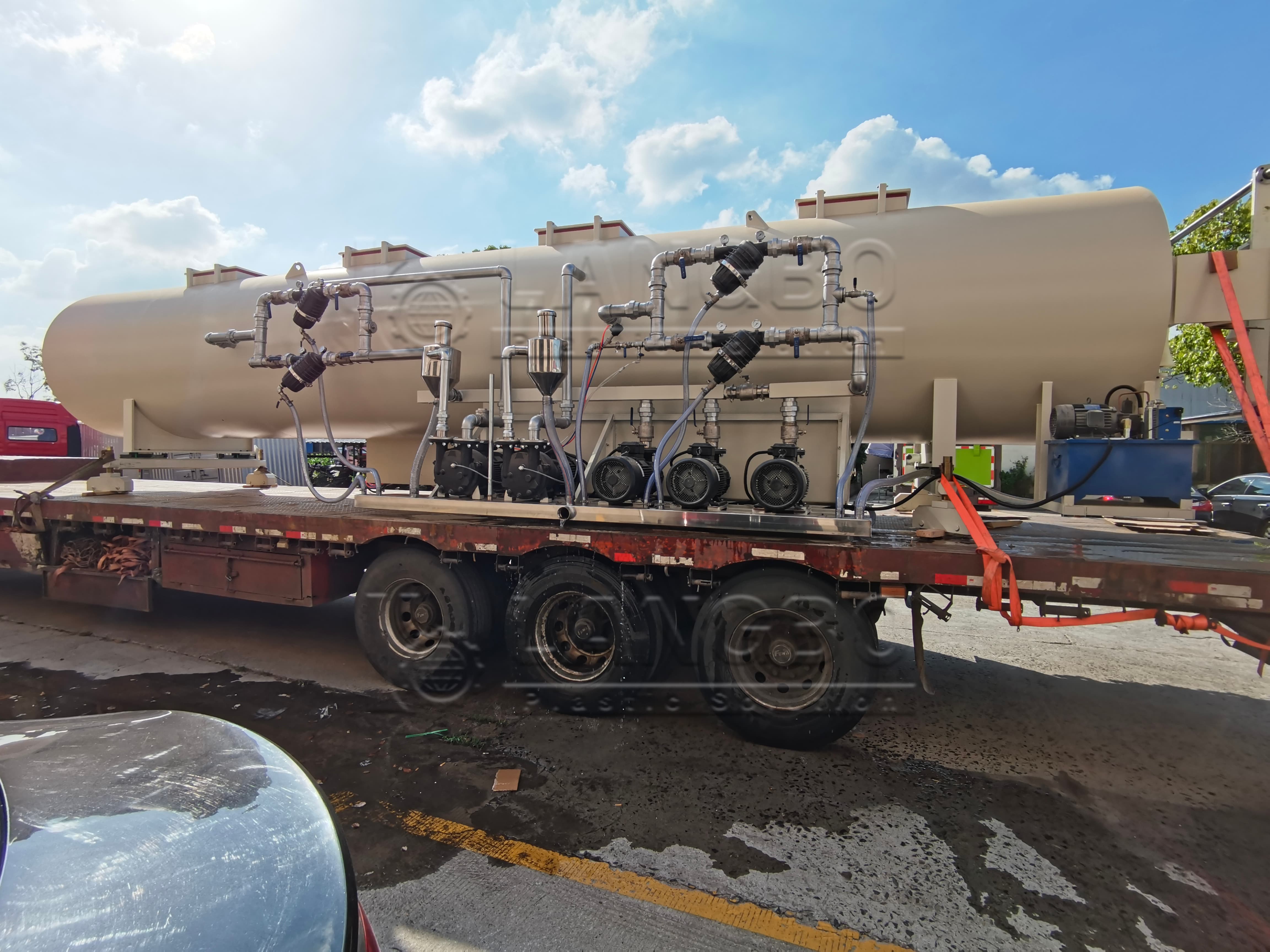

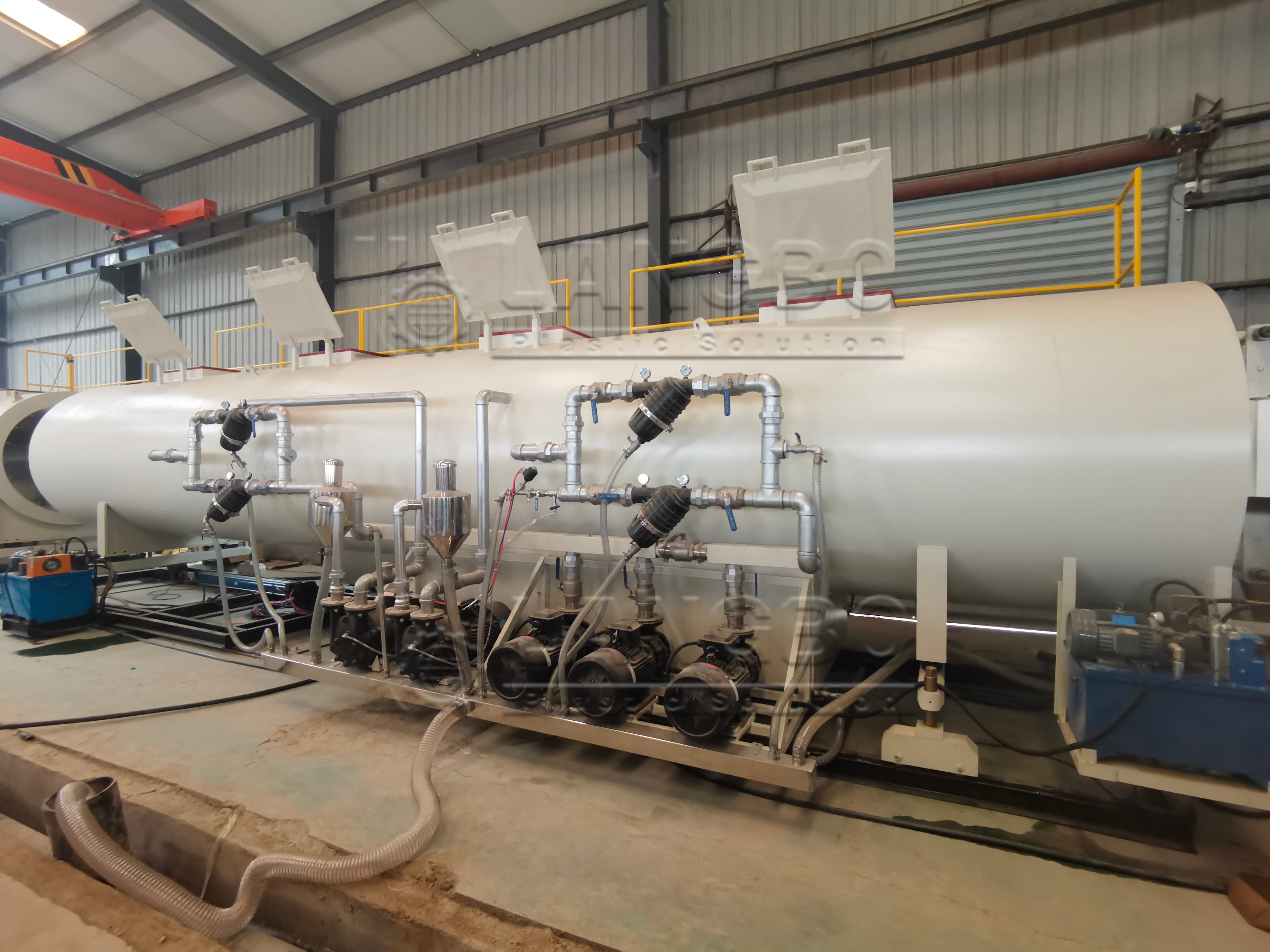

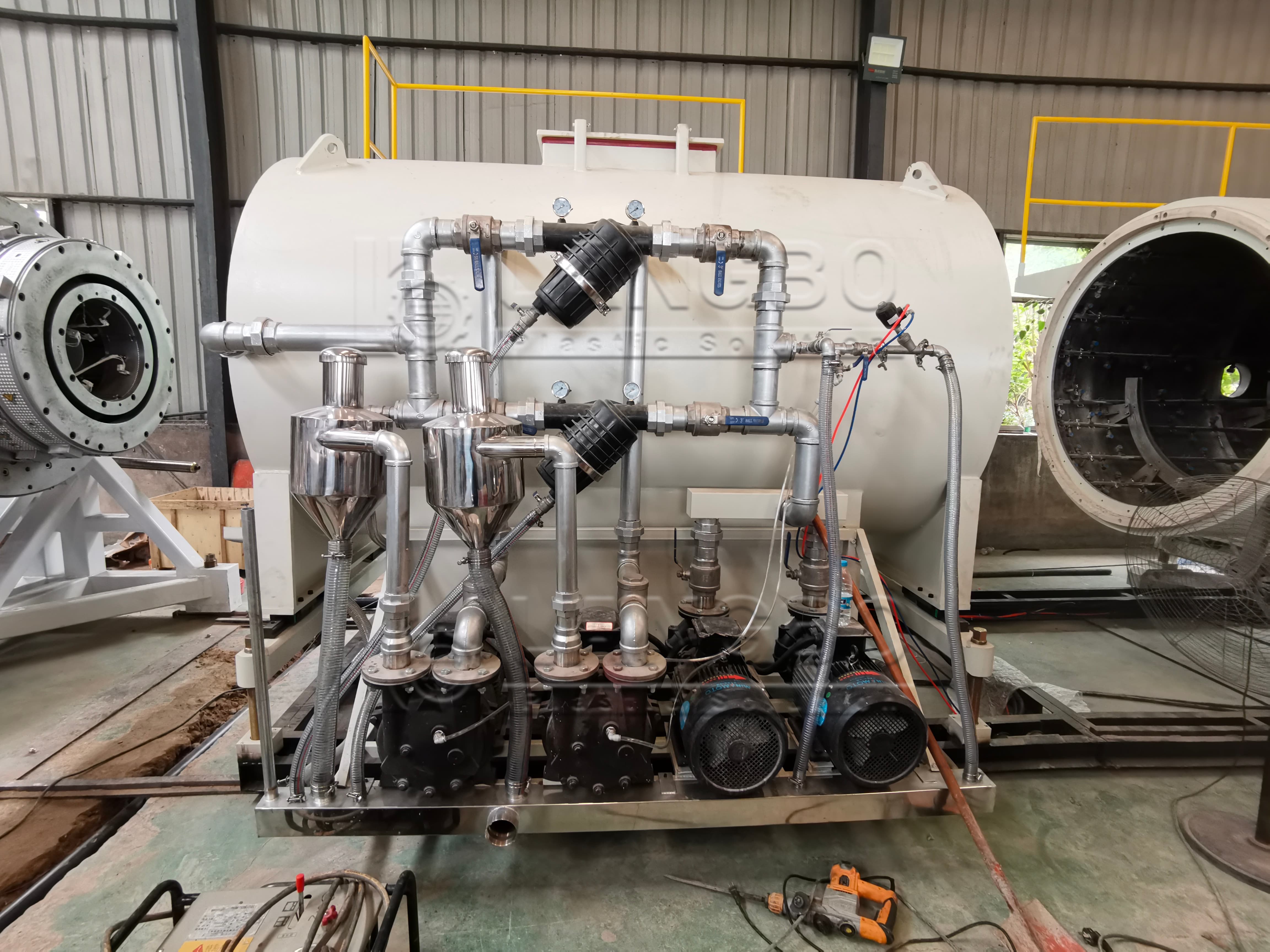

Vacuum Calibration & Cooling

frequency conversion vacuum control system for constant vacuum environment with lowest energy consumption.
Backup pumps for each section of vacuum tanks to ensure a reliable production

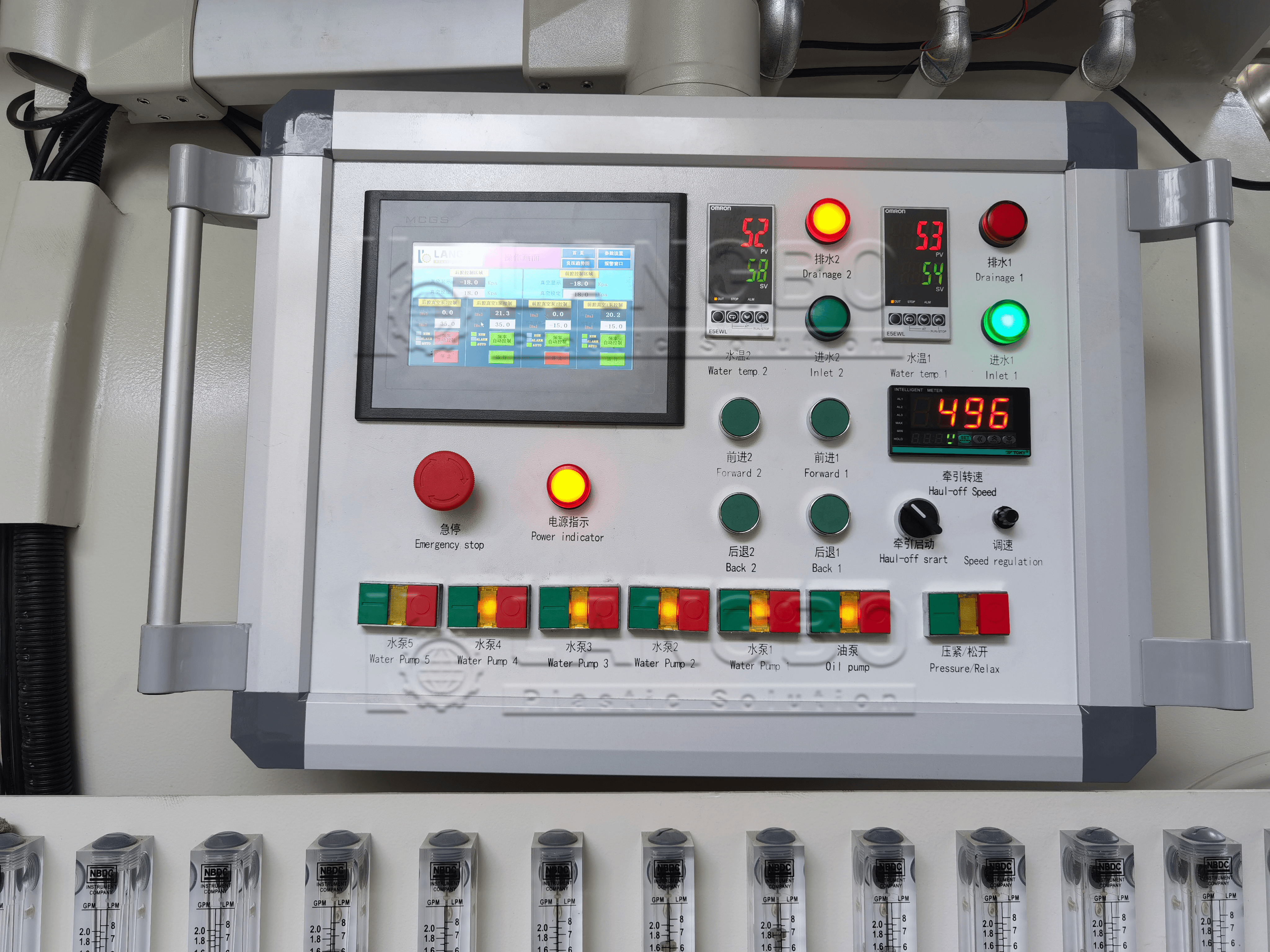

Easy operation and clear display layout
Robust concept of components for stable running

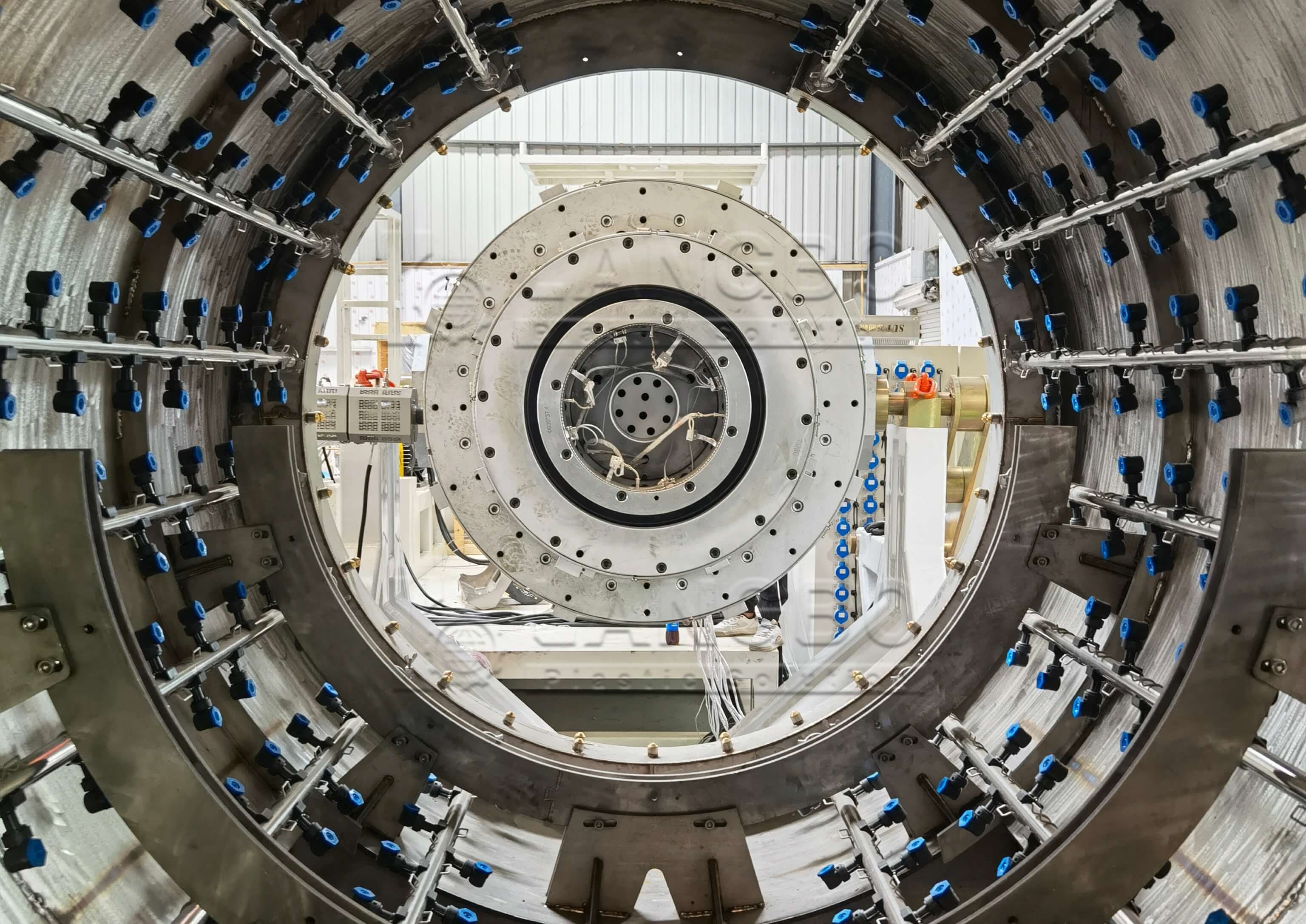

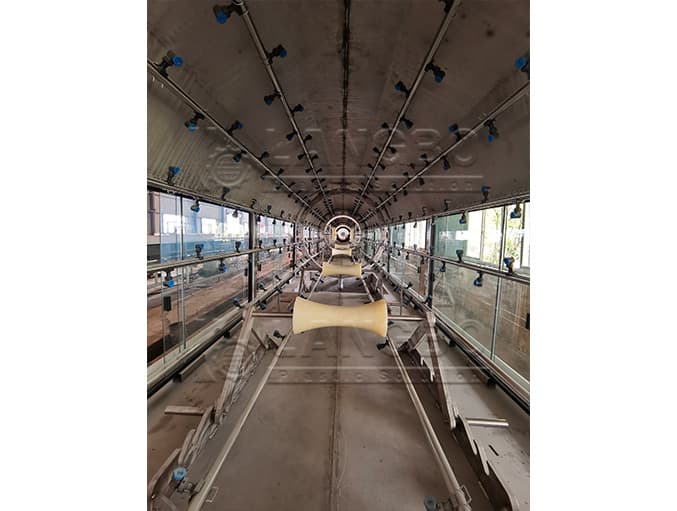

Spraying Tank

Energy Efficiency pump and enlarged water tank for sufficient cooling effect
High quality part, robust structure design ensures a long service time

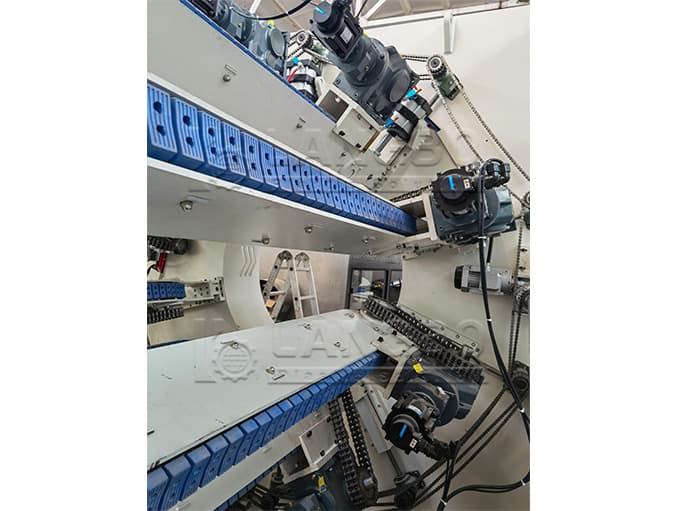

Haul-off Unit

Servo Motor and high-quality reducer for synchronized movement of belt or caterpillar

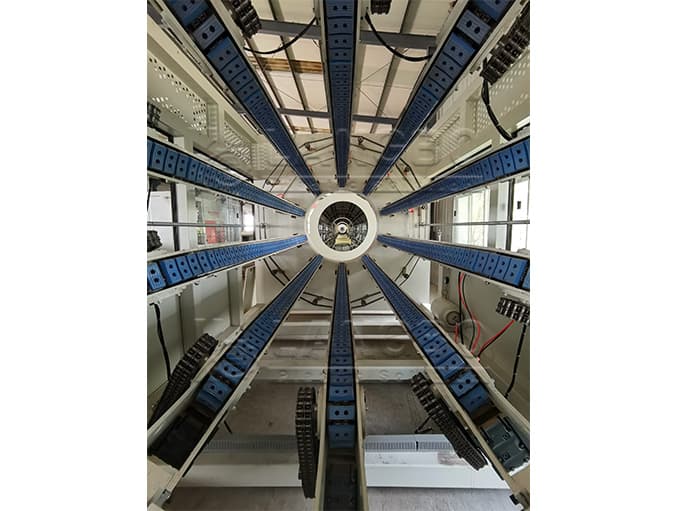

Ten caterpillars haul off for hauling off of different pipe diameter
Tailored hauling concept adopted based on production requirement of customers
Easy maintenance mechanical concept

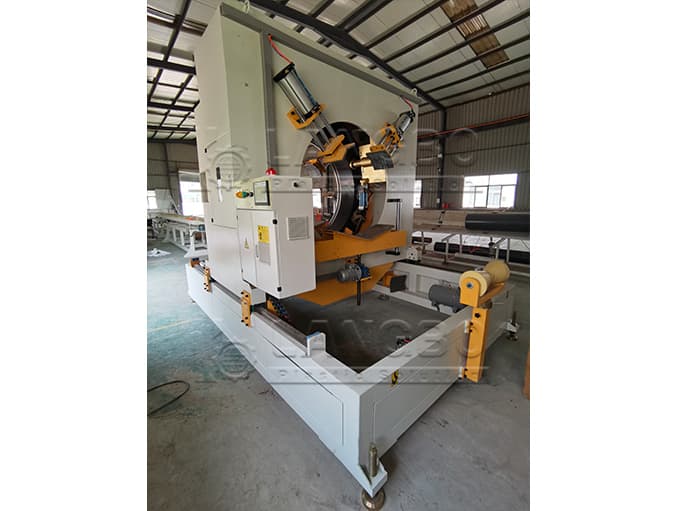

Cutting Unit

Double cutting concept for different production requirement
high accuracy encoder ensures a precise and stable cutting length
Hauling-off and cutting combination is optional with the advantage of space saving.

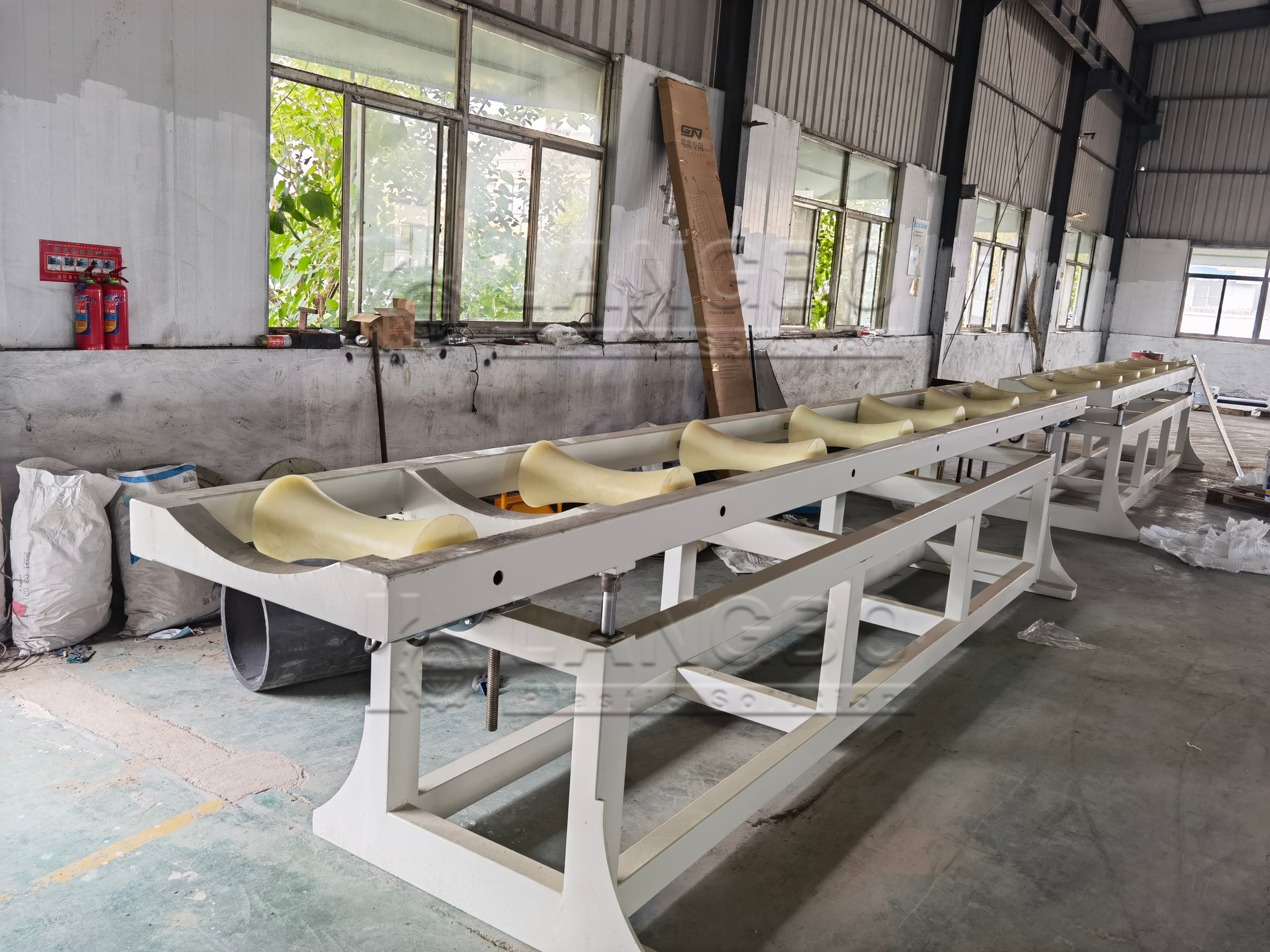

Electrical Pipe Holder

The electrical motor for adjustment of the height of holder.
robust structure of holder for stable pipe holding for further transportation of pipes
