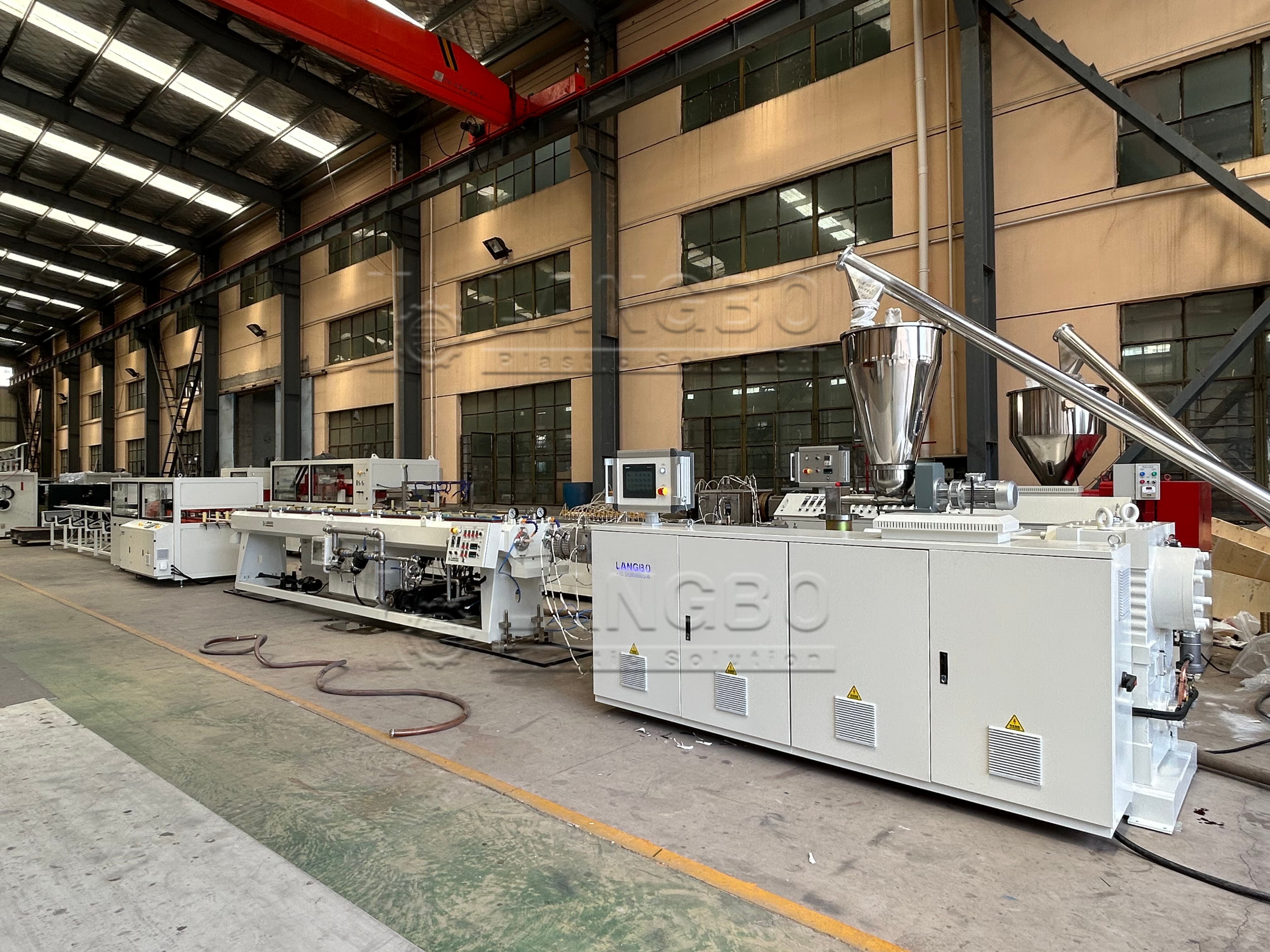

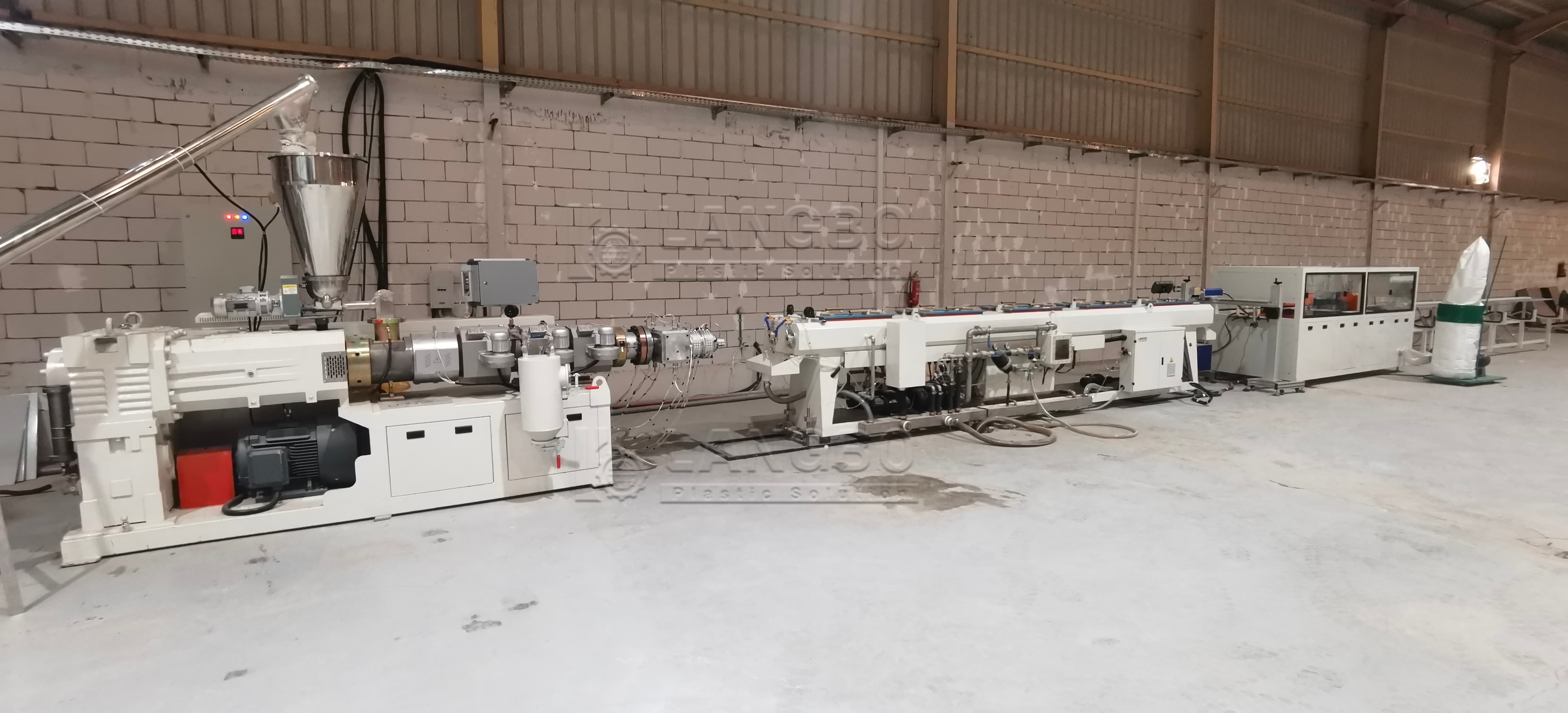

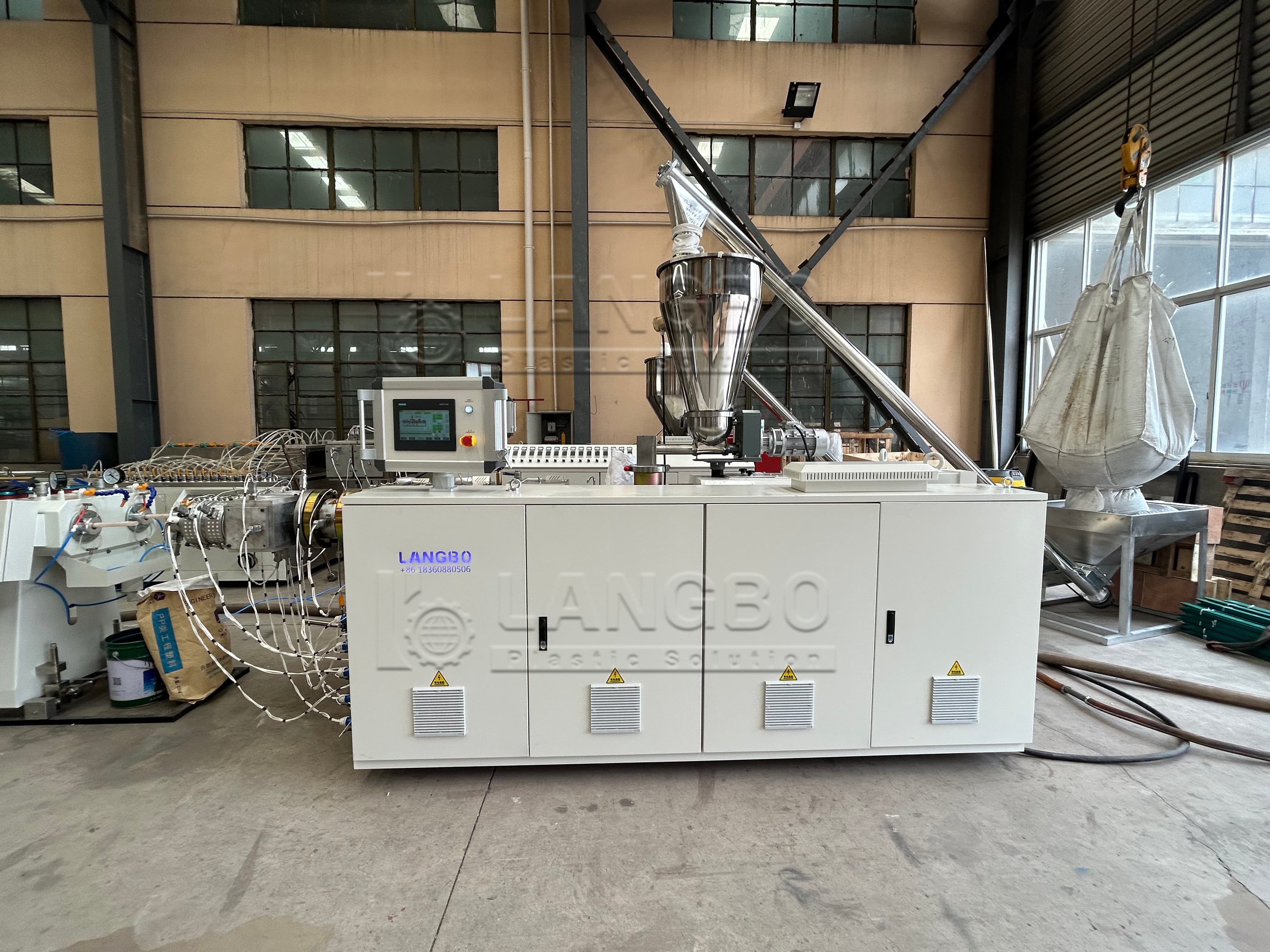

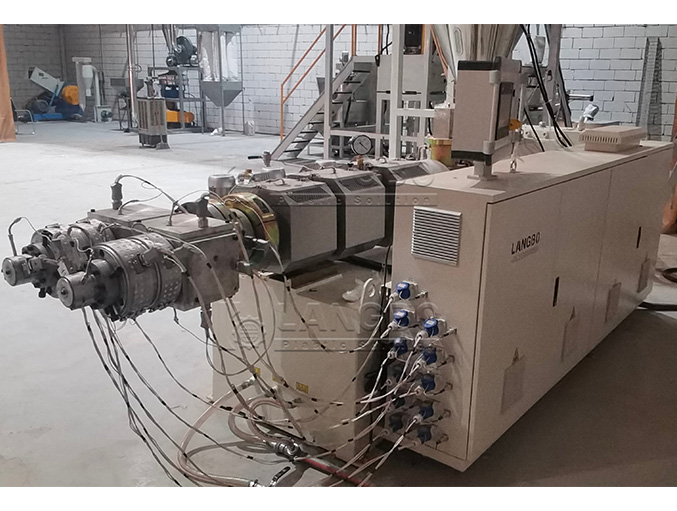

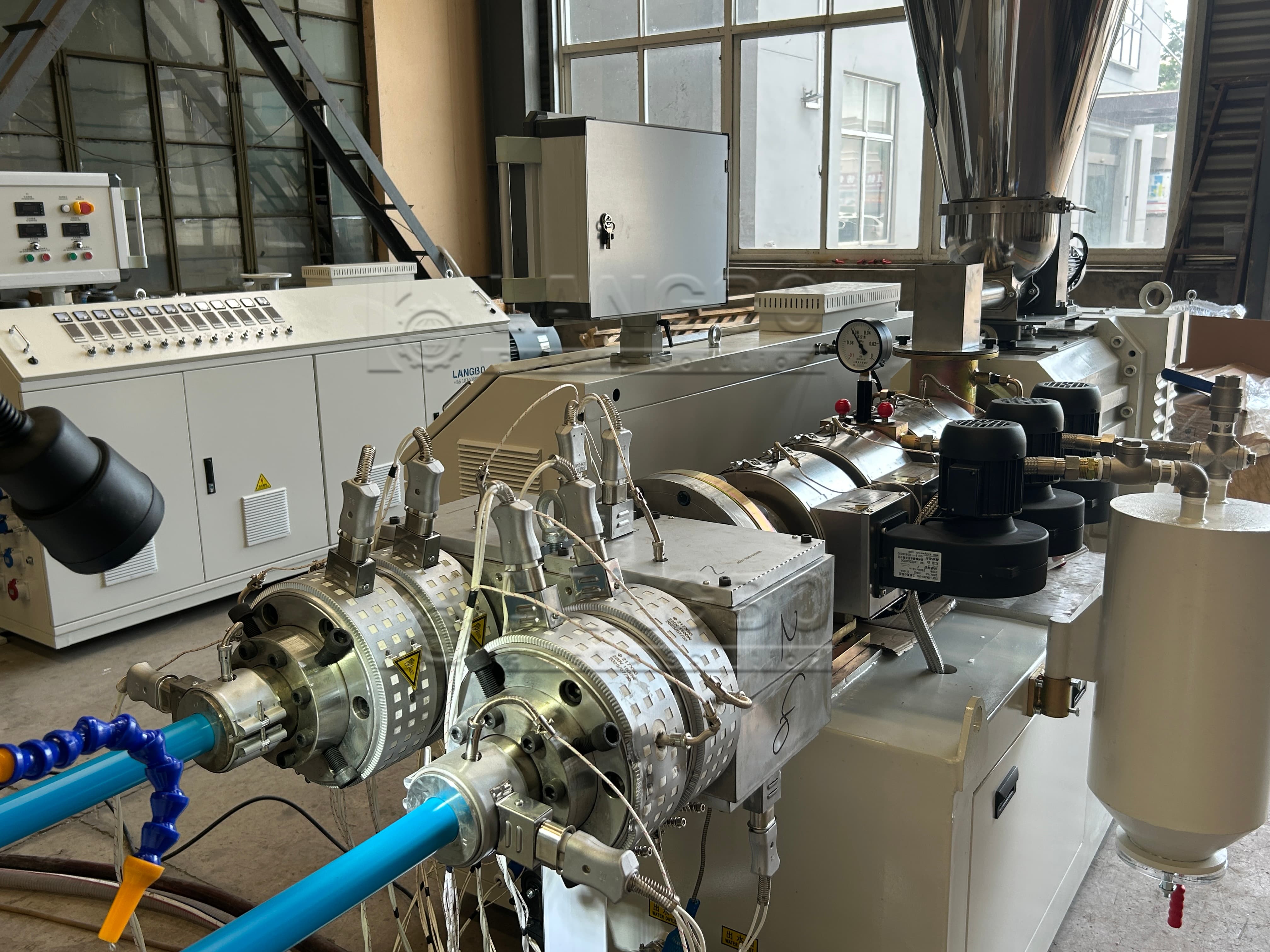

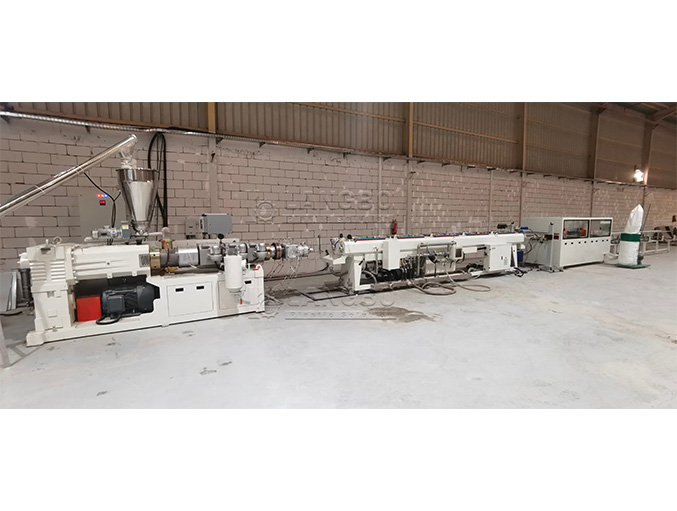

PVC Dual Pipe Line

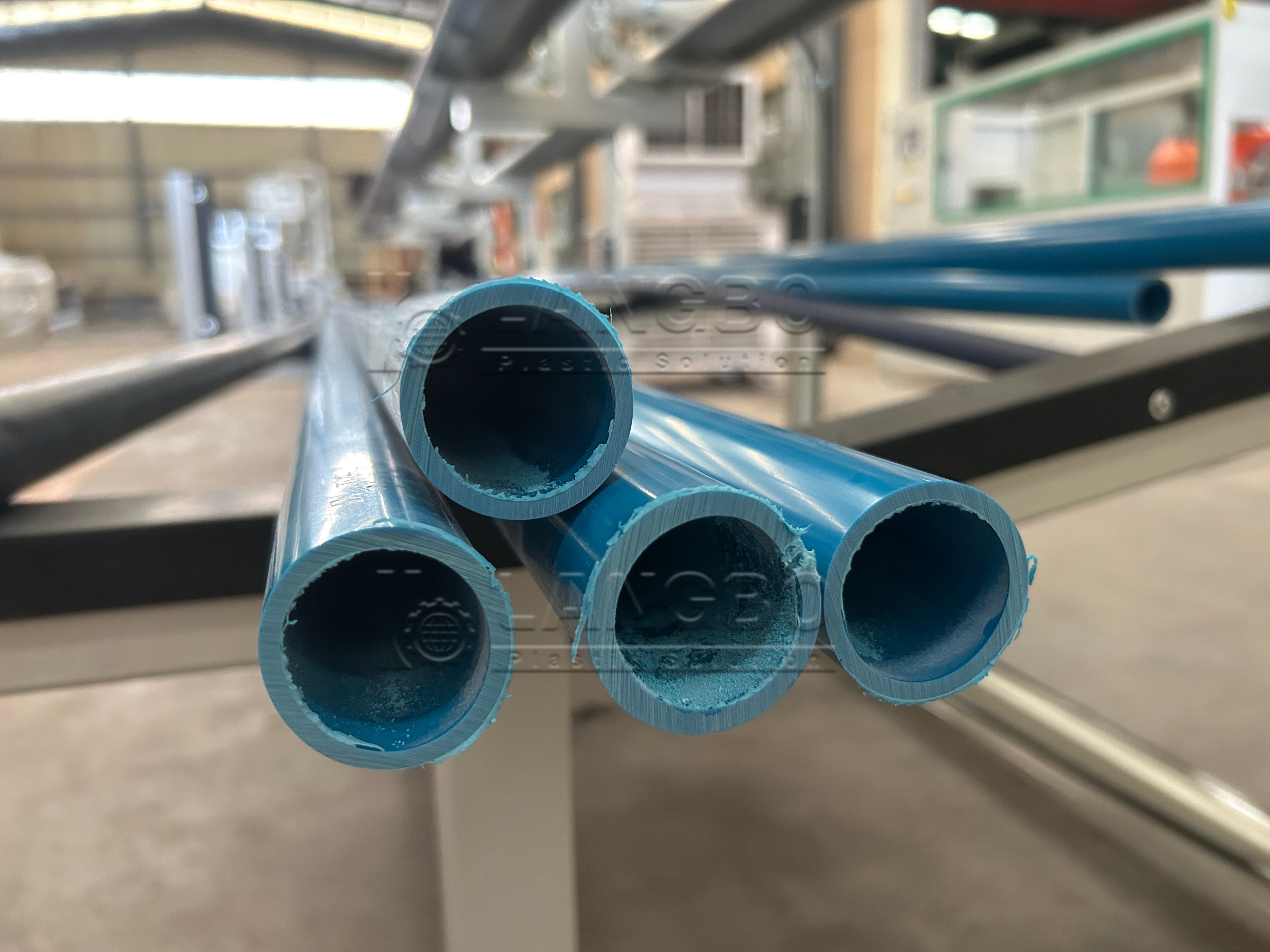

Double Strand Line keeps the perfect balance between wide diameter range capability and productivity.
12x2
Production Speed (m/min)
Ø16-Ø63
Pipe Range (mm)
250
Max Output (kg/h)
23-34
Line Length (m)
Line Details
Optimized design by experienced engineer
Self-friction as the heating source, energy efficiency as result

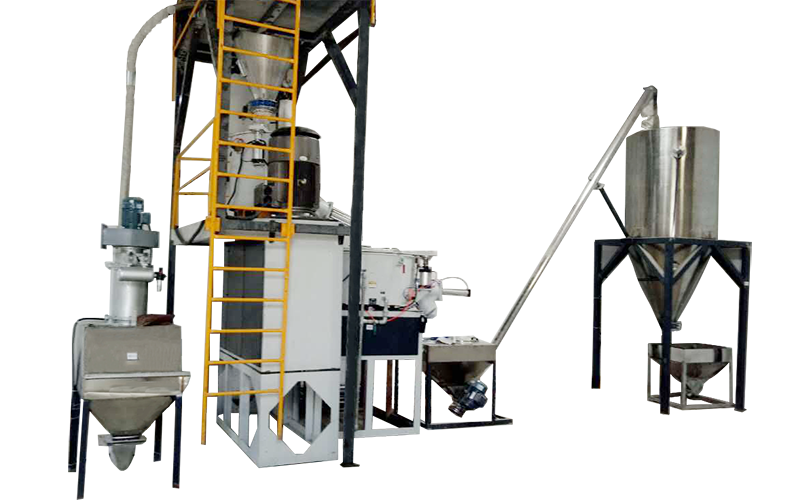

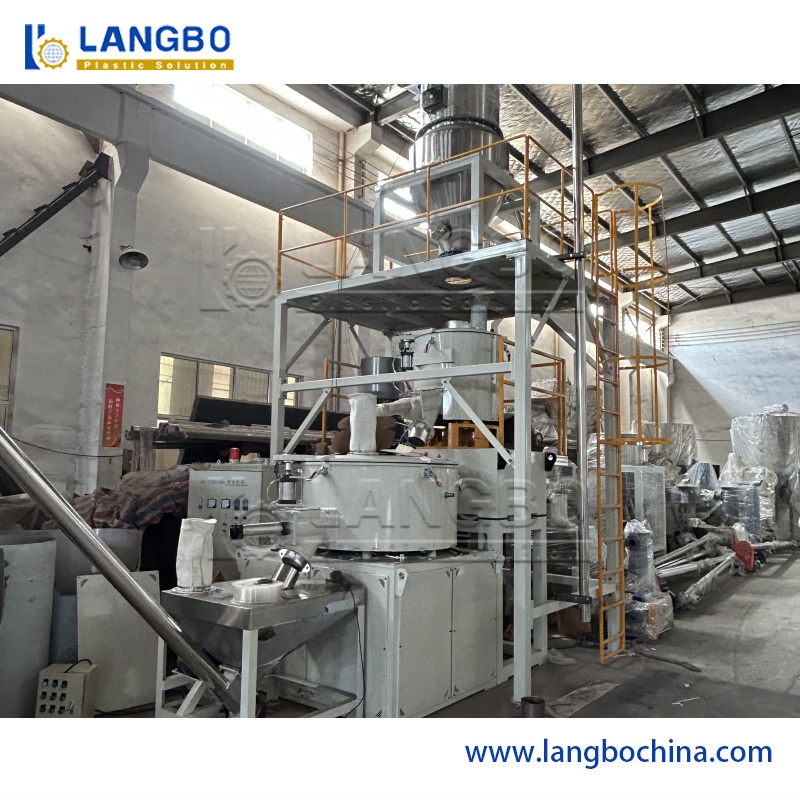

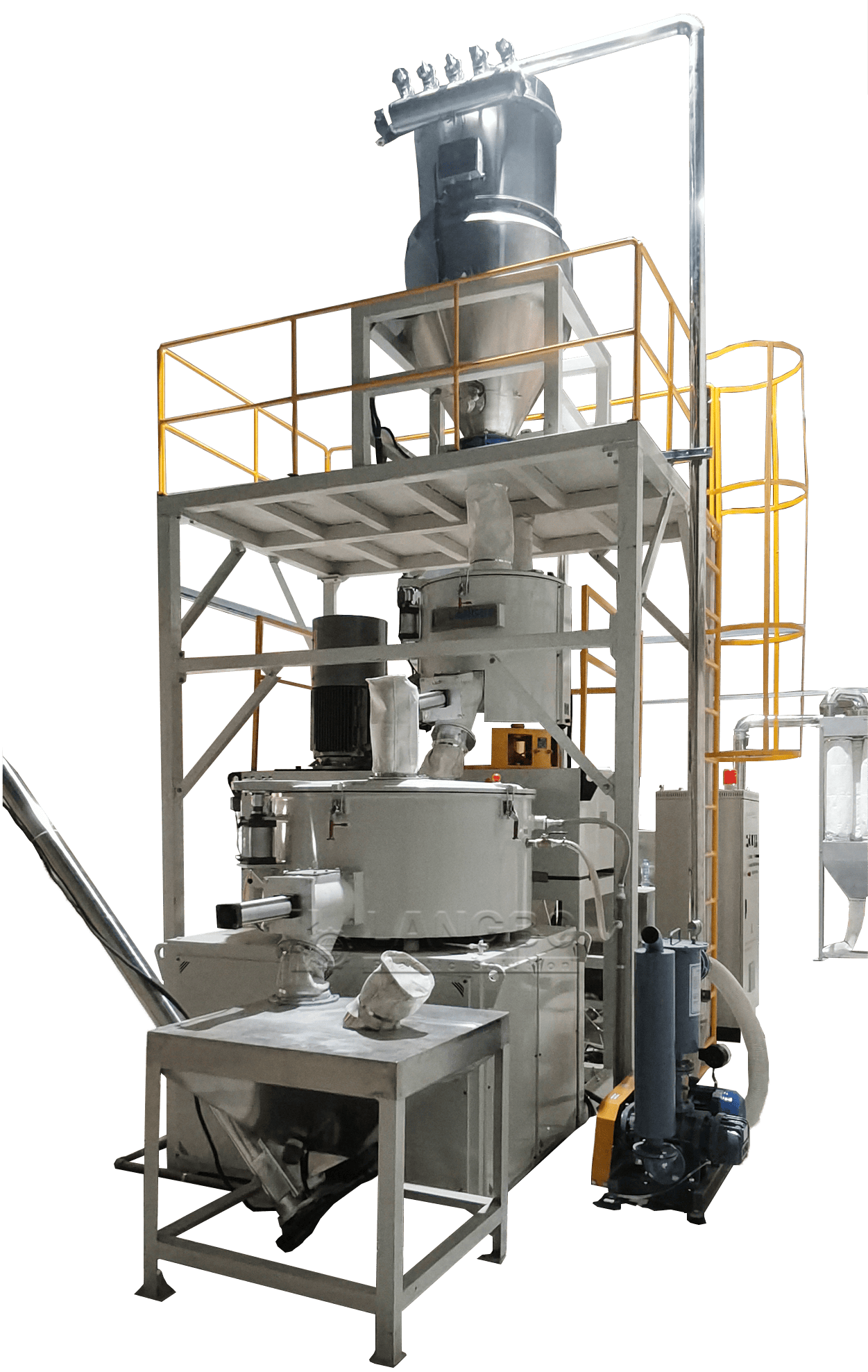

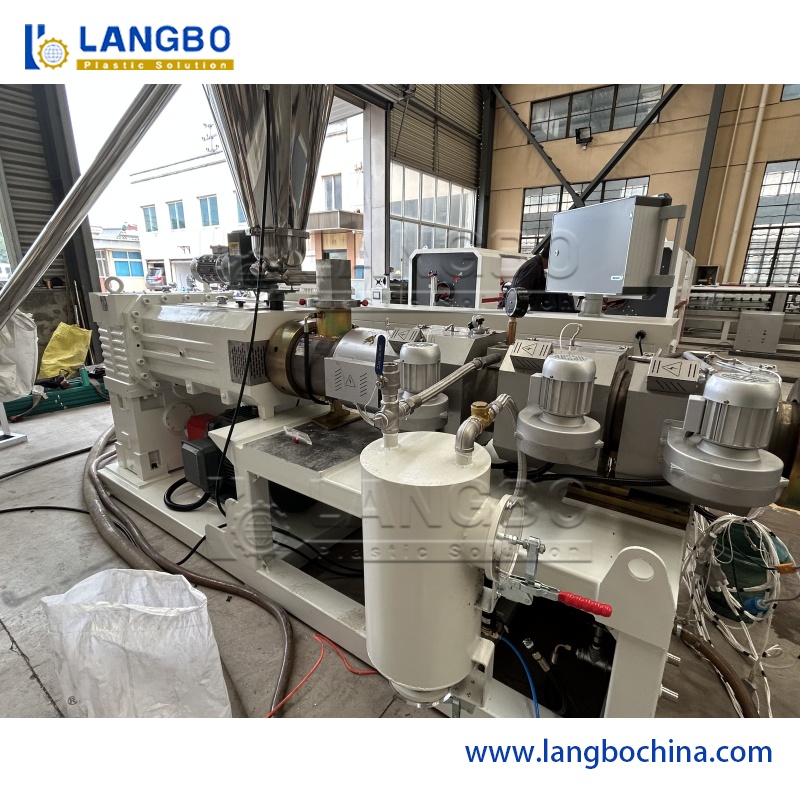

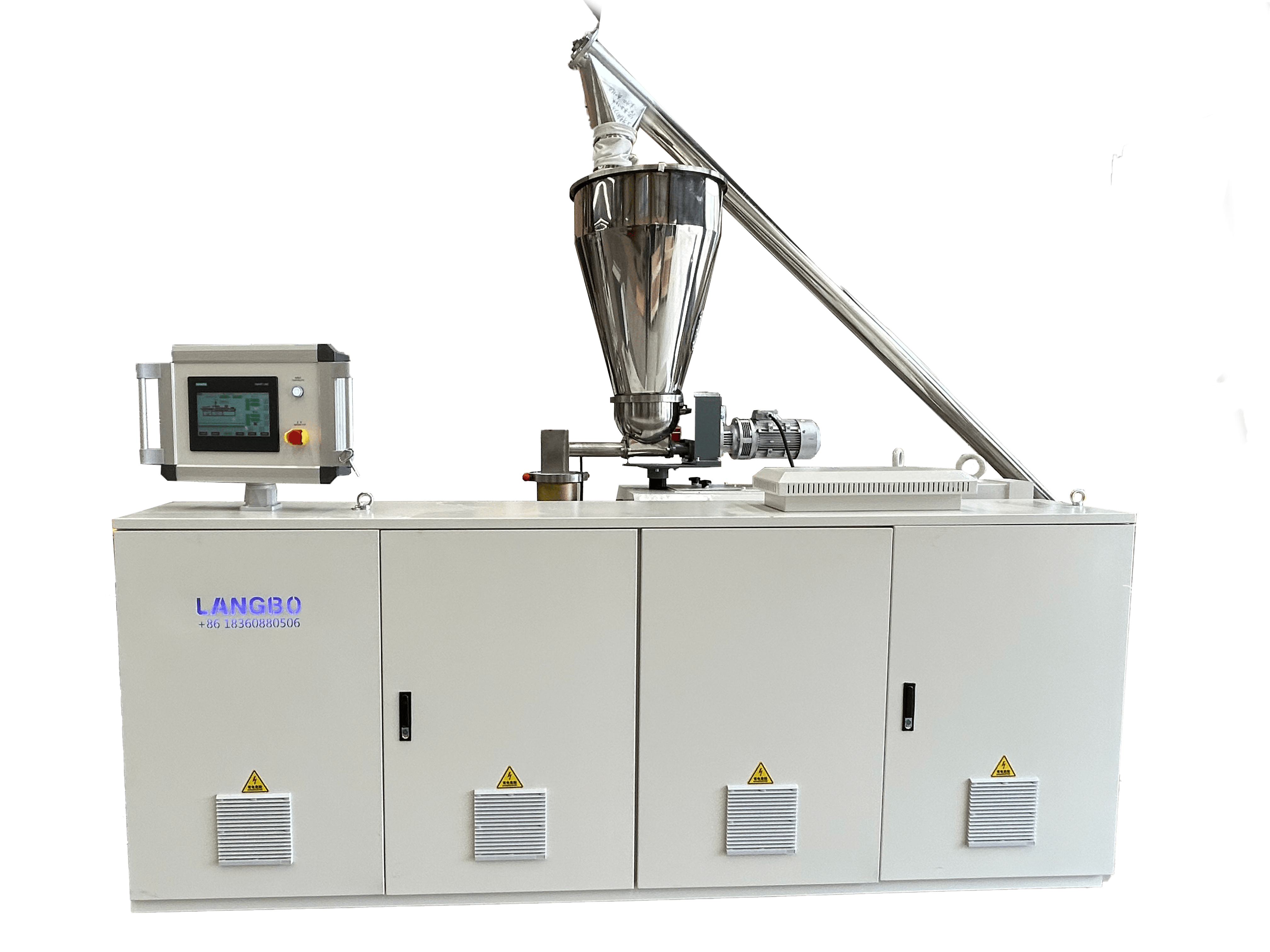

Vaccum suction loading for low noise and no-dust working situation
Spiral loadi

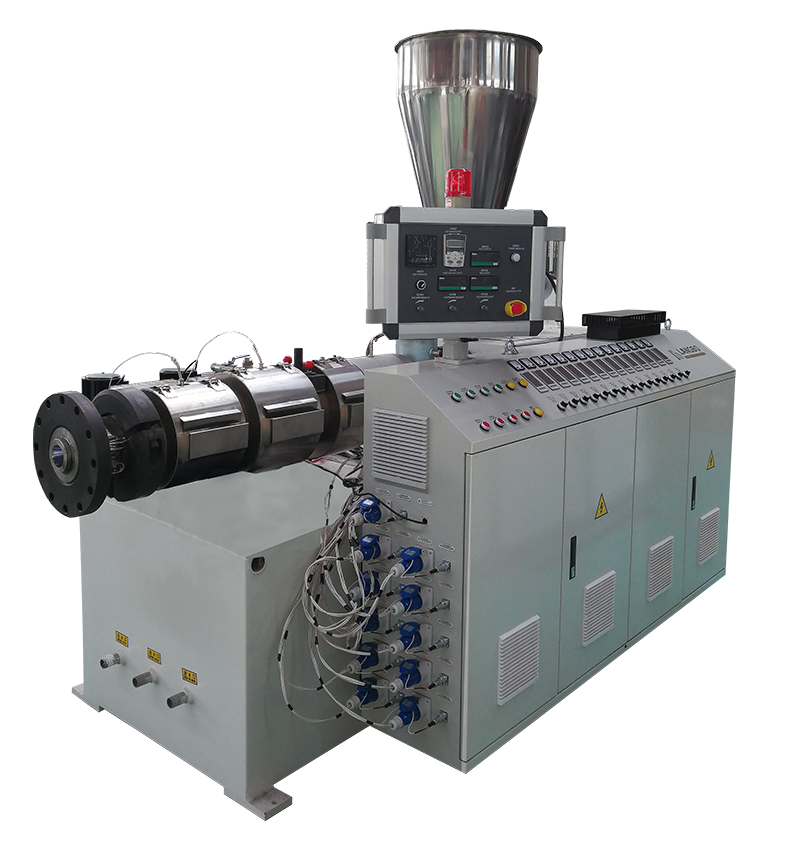

Special design for gentle processing of PVC powder

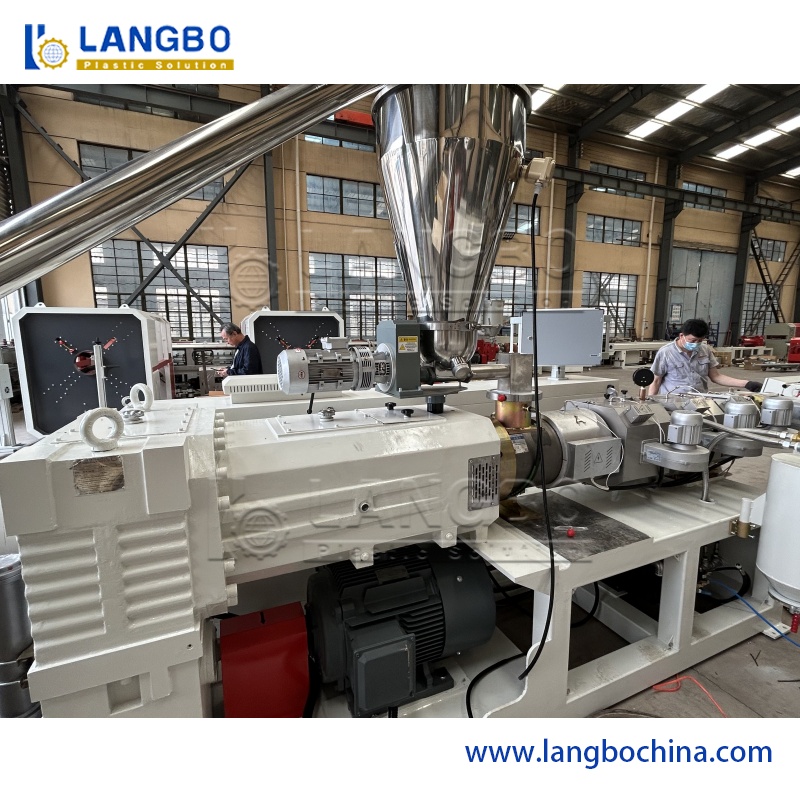

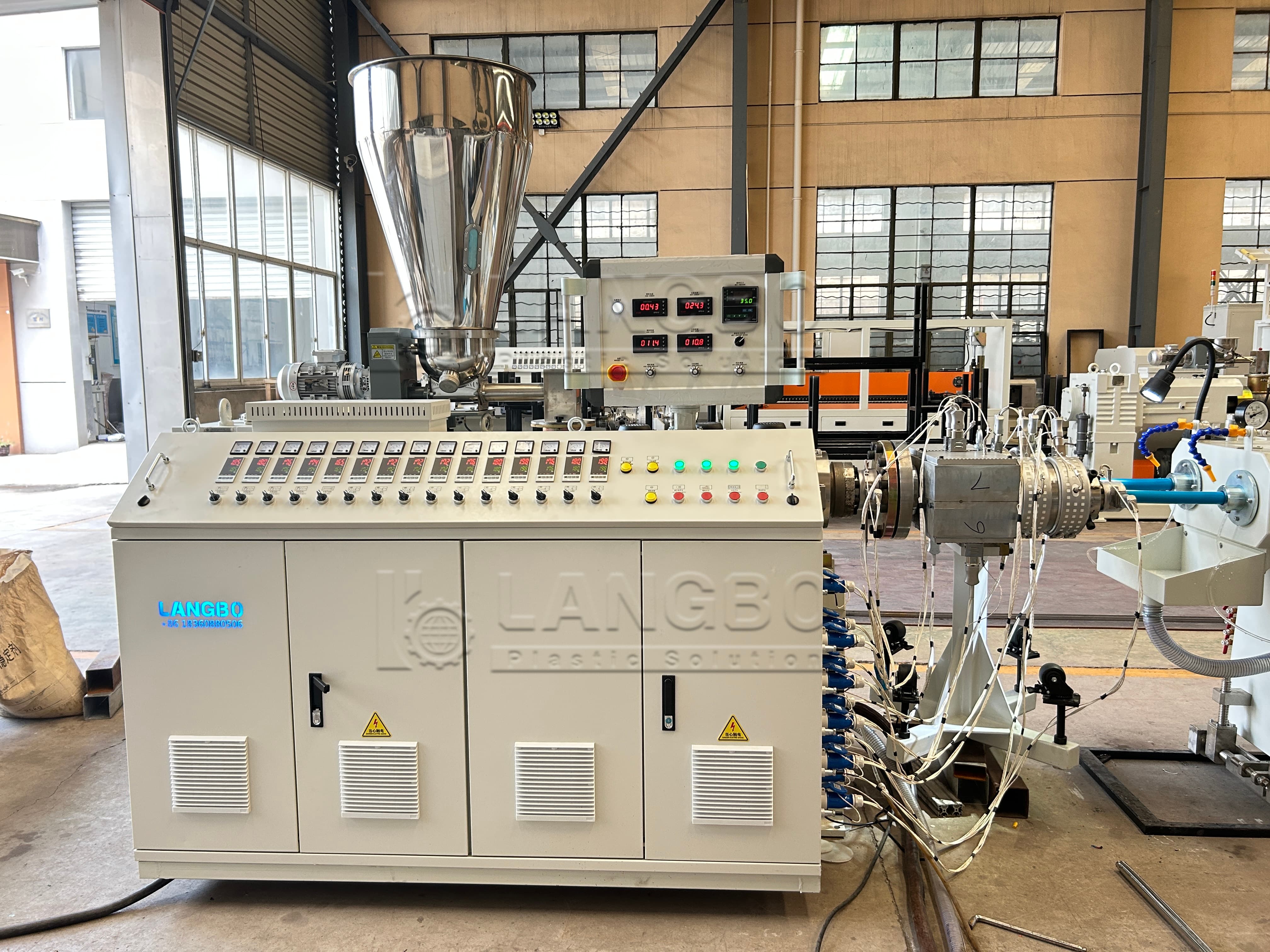

permanent magnet synchronous motor for reducing around 10% energy consumption comparing with DC or AC Motor.

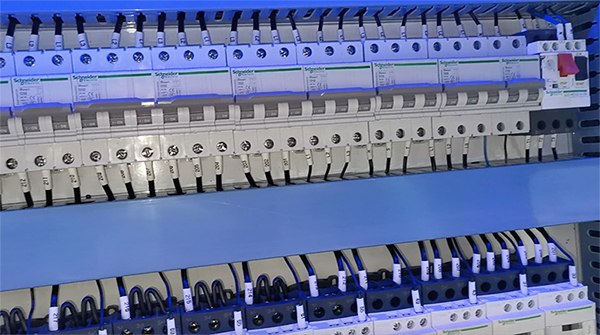

Operator oriented operation l

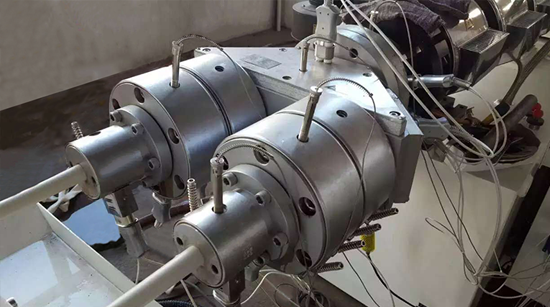

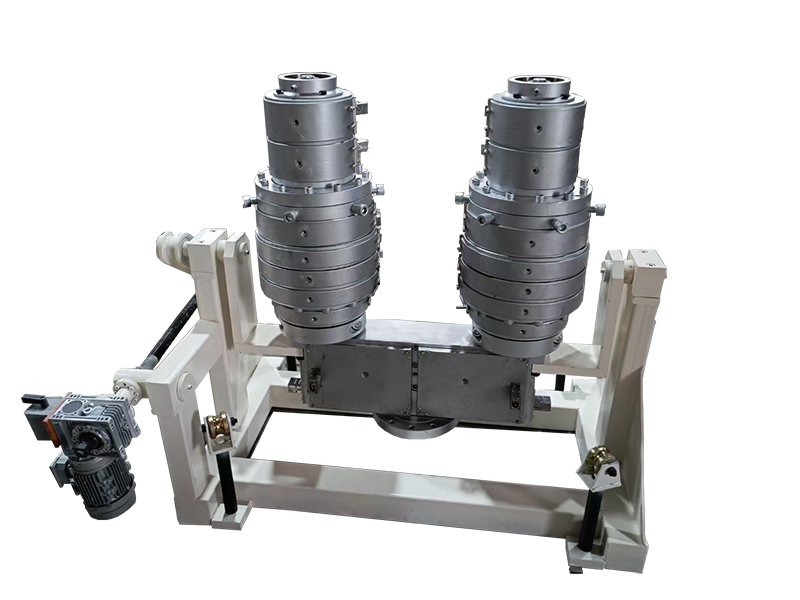

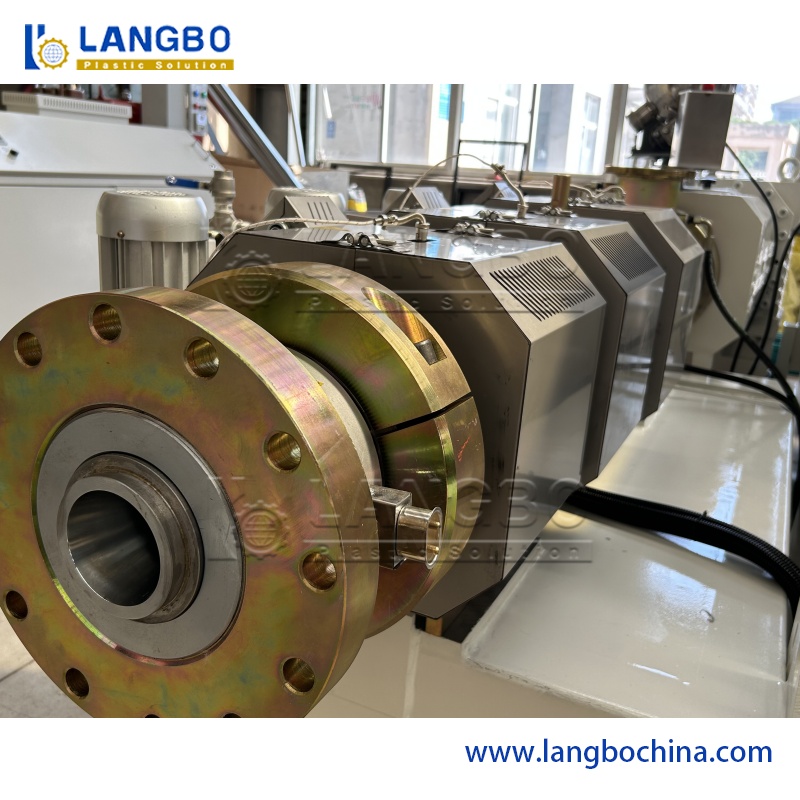

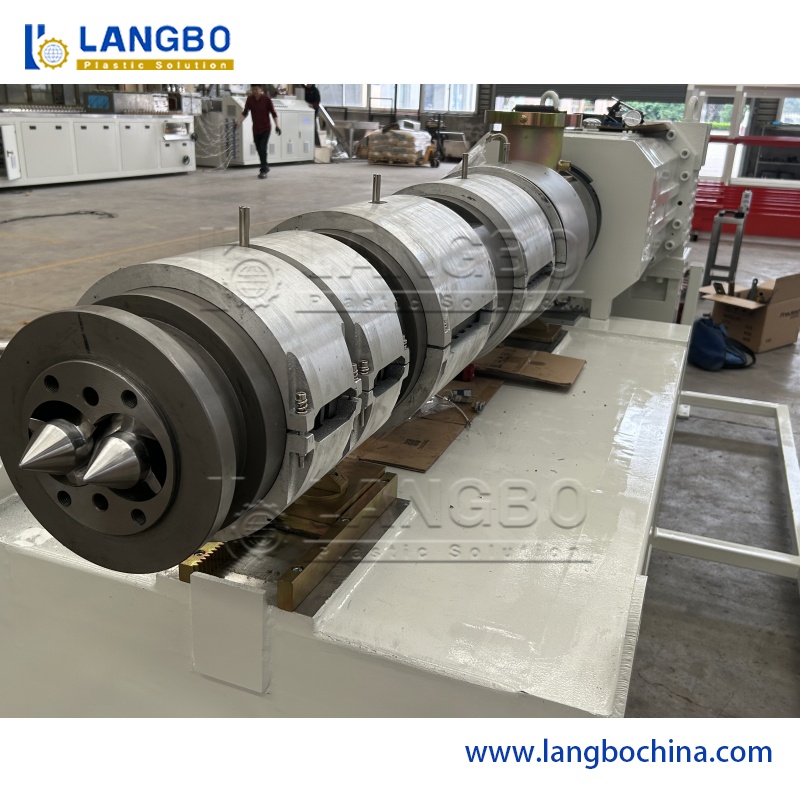

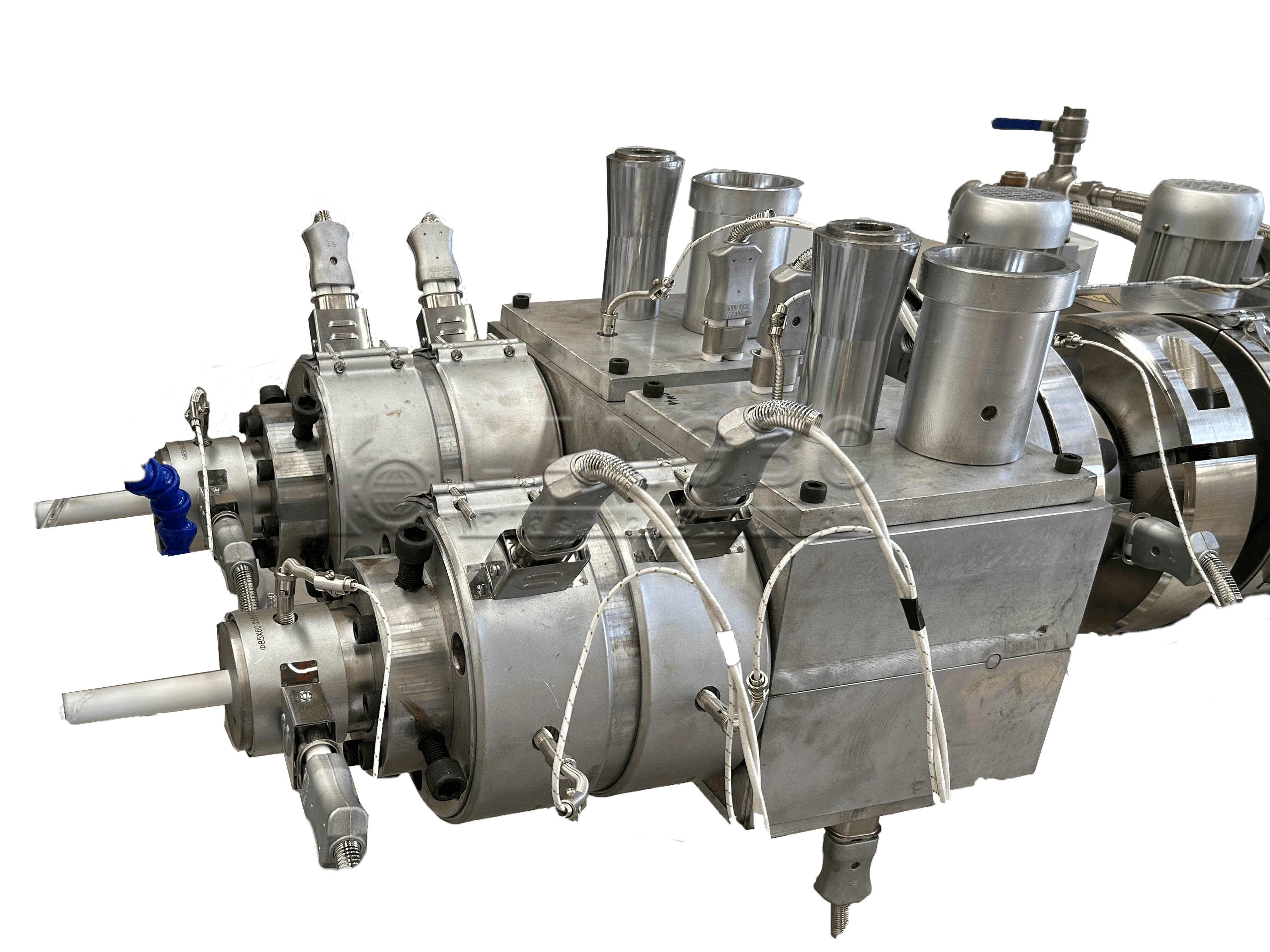

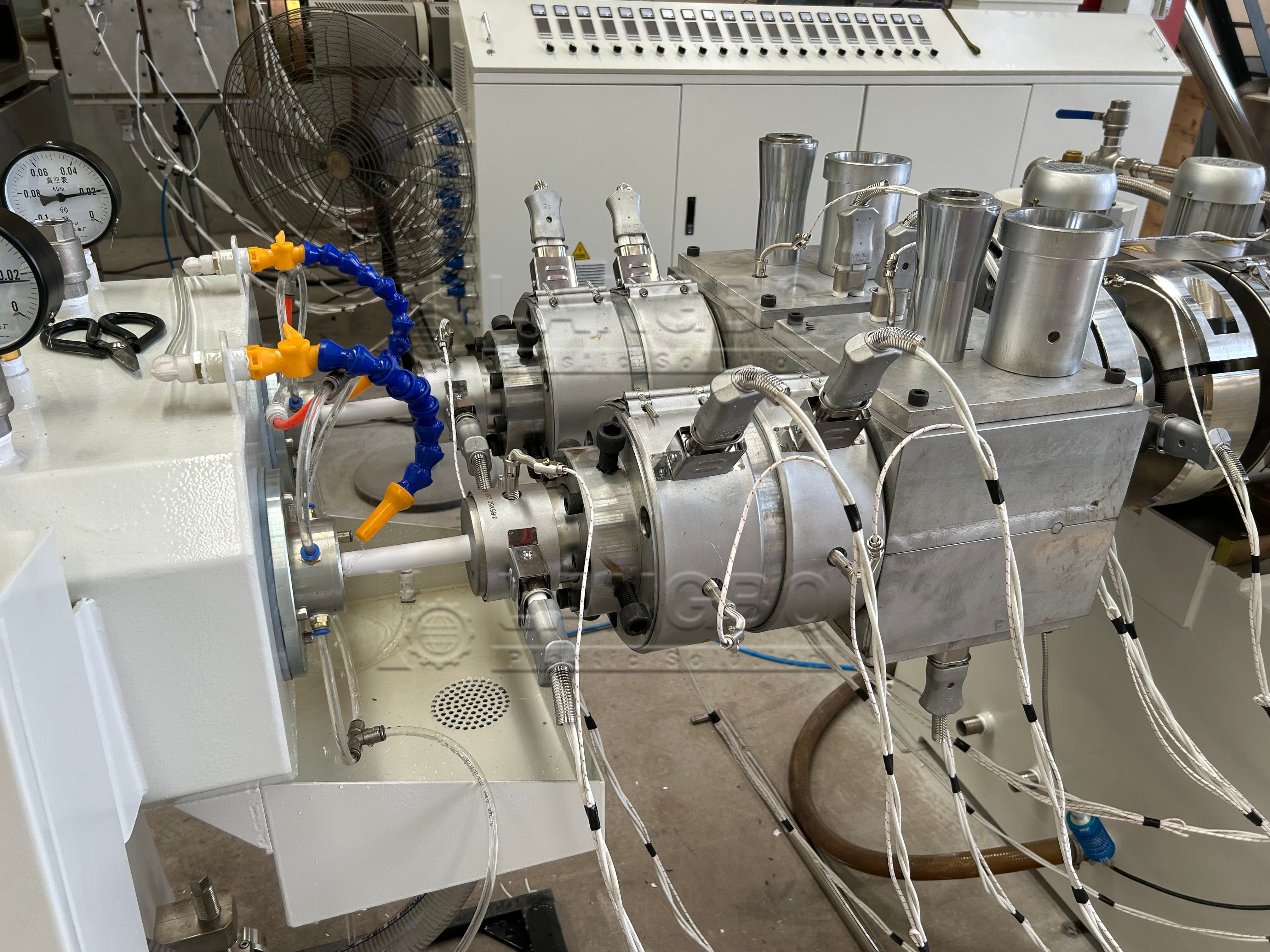

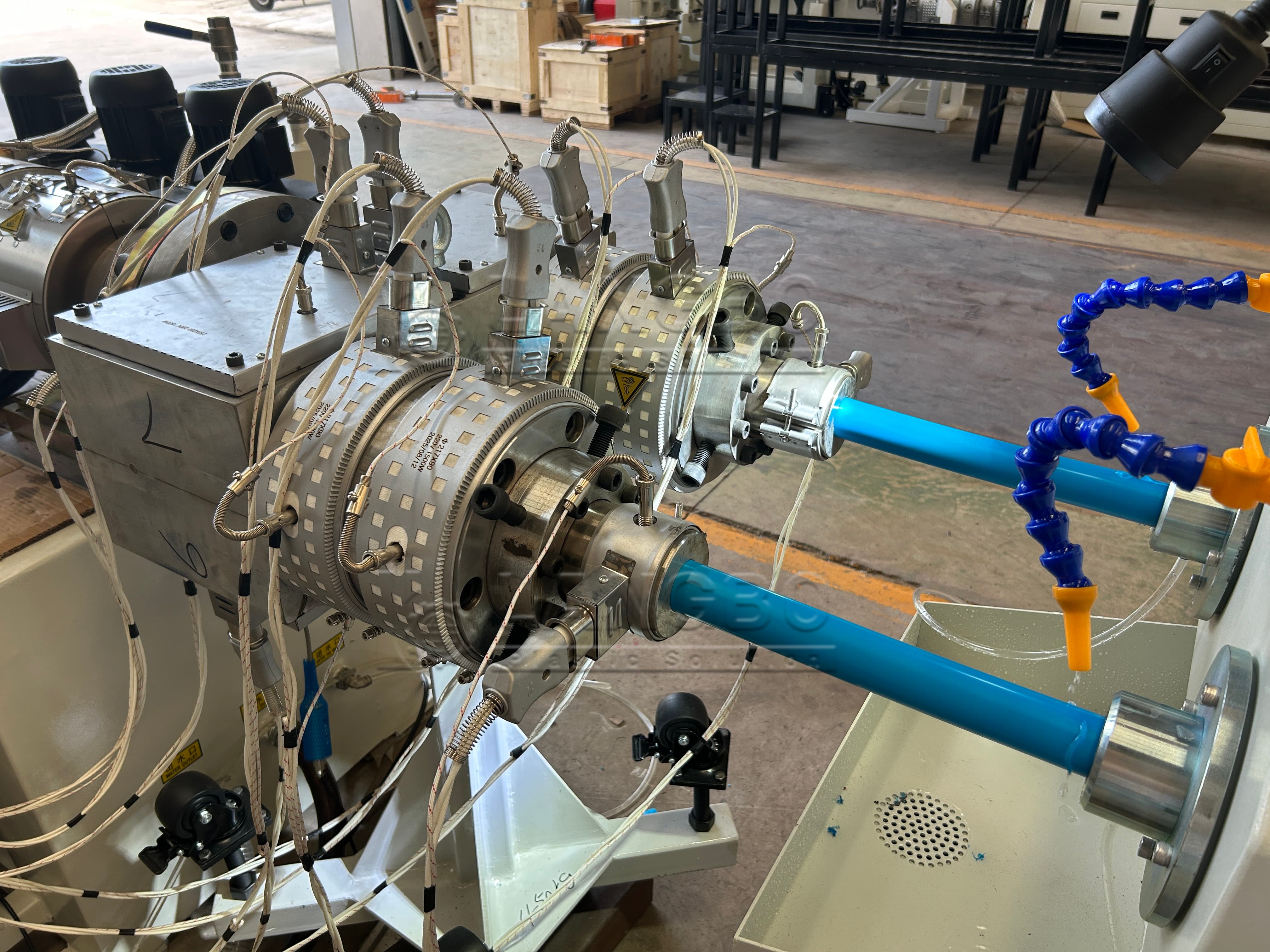

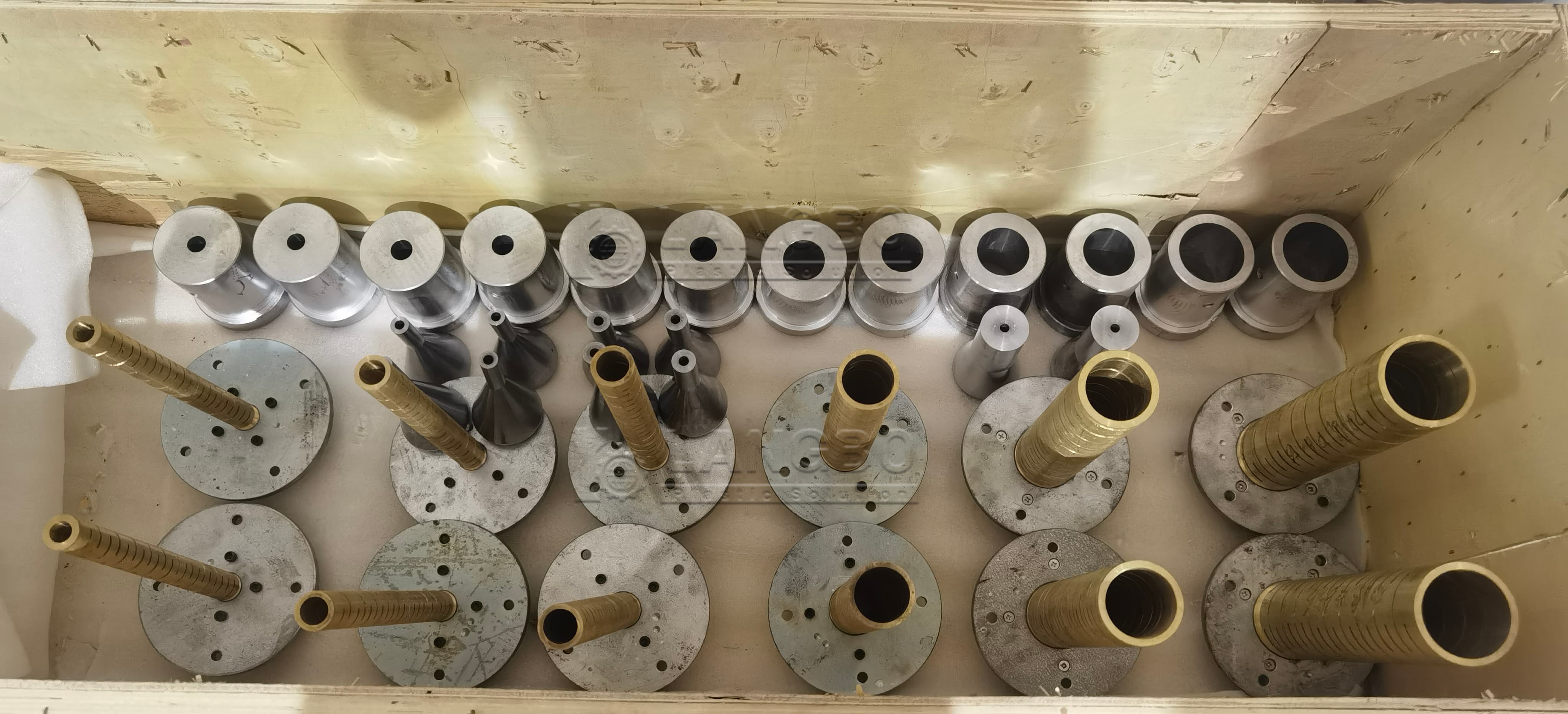

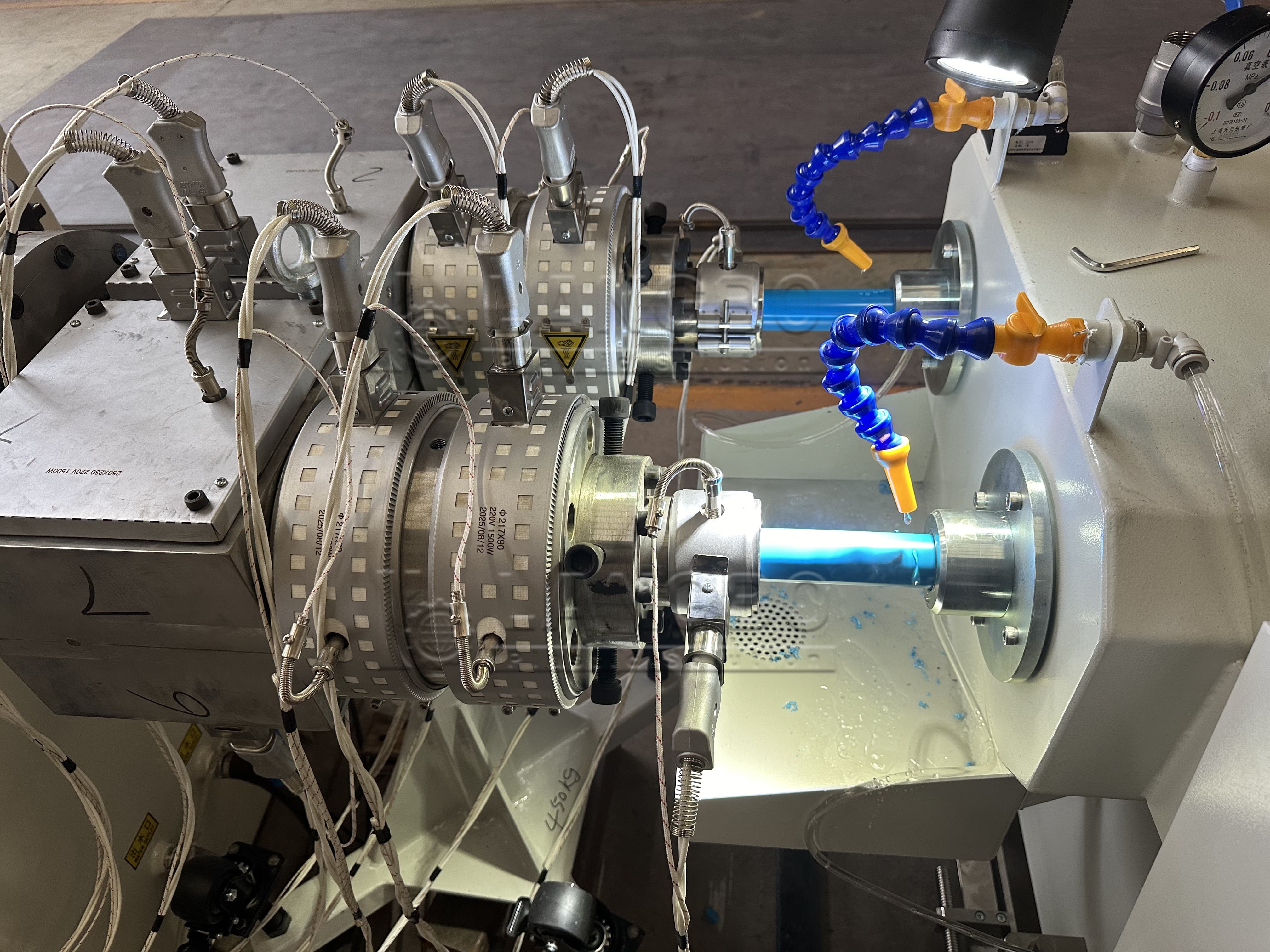

Specially design for flow channel for superb pipe shaping and reasonable melt pressure.
The large compression ratio ensures the excellent plasticizing effect.

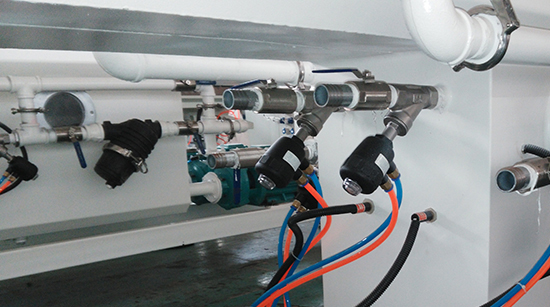

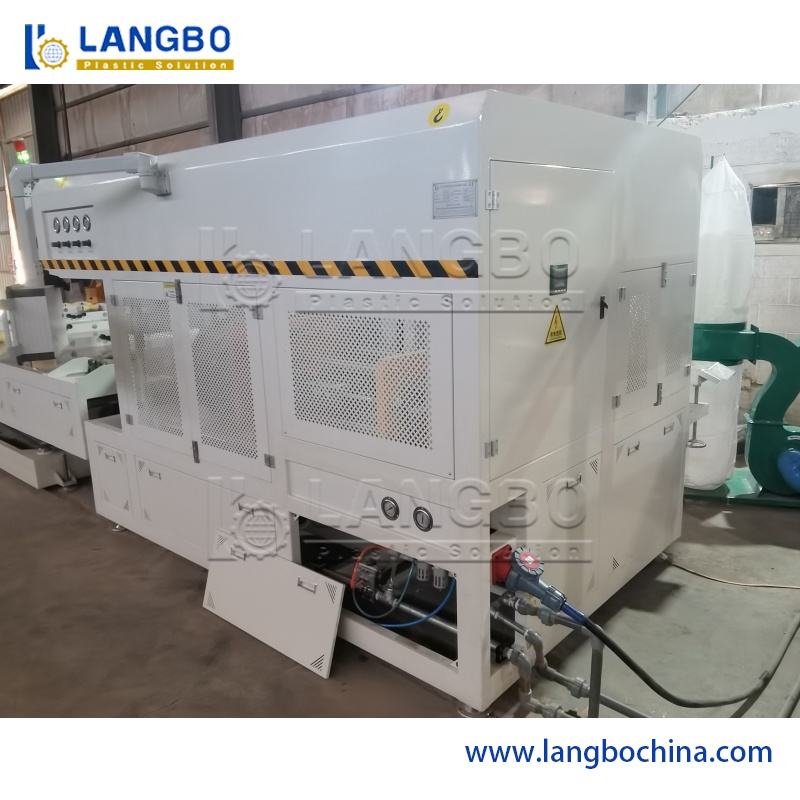

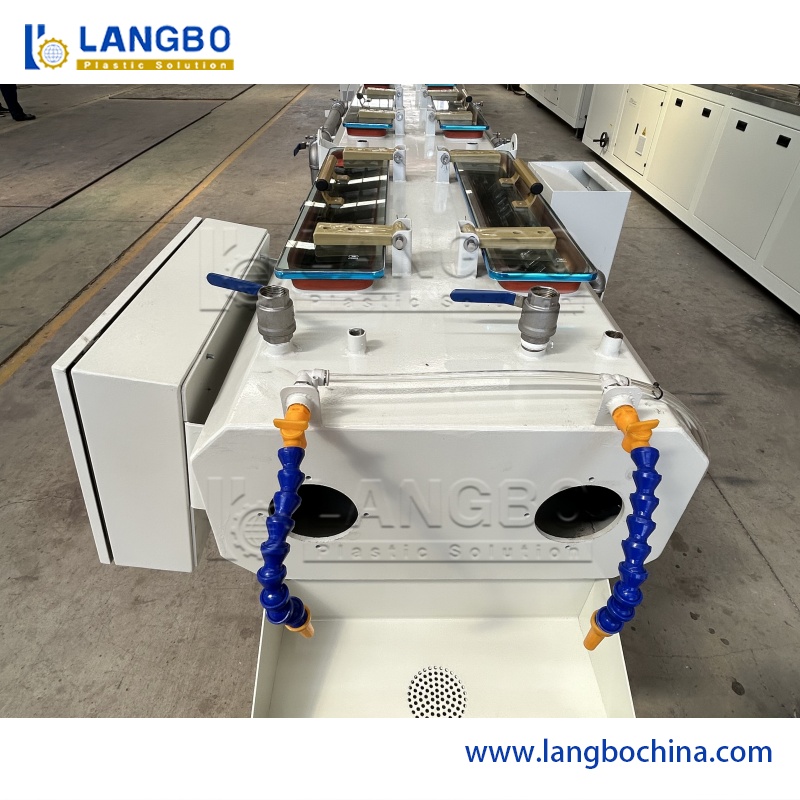

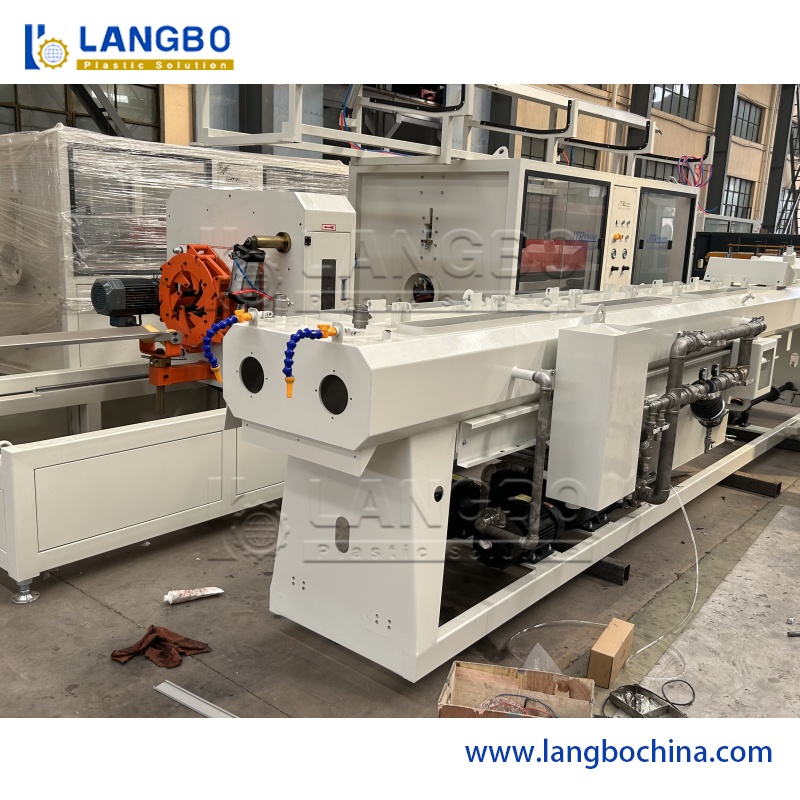

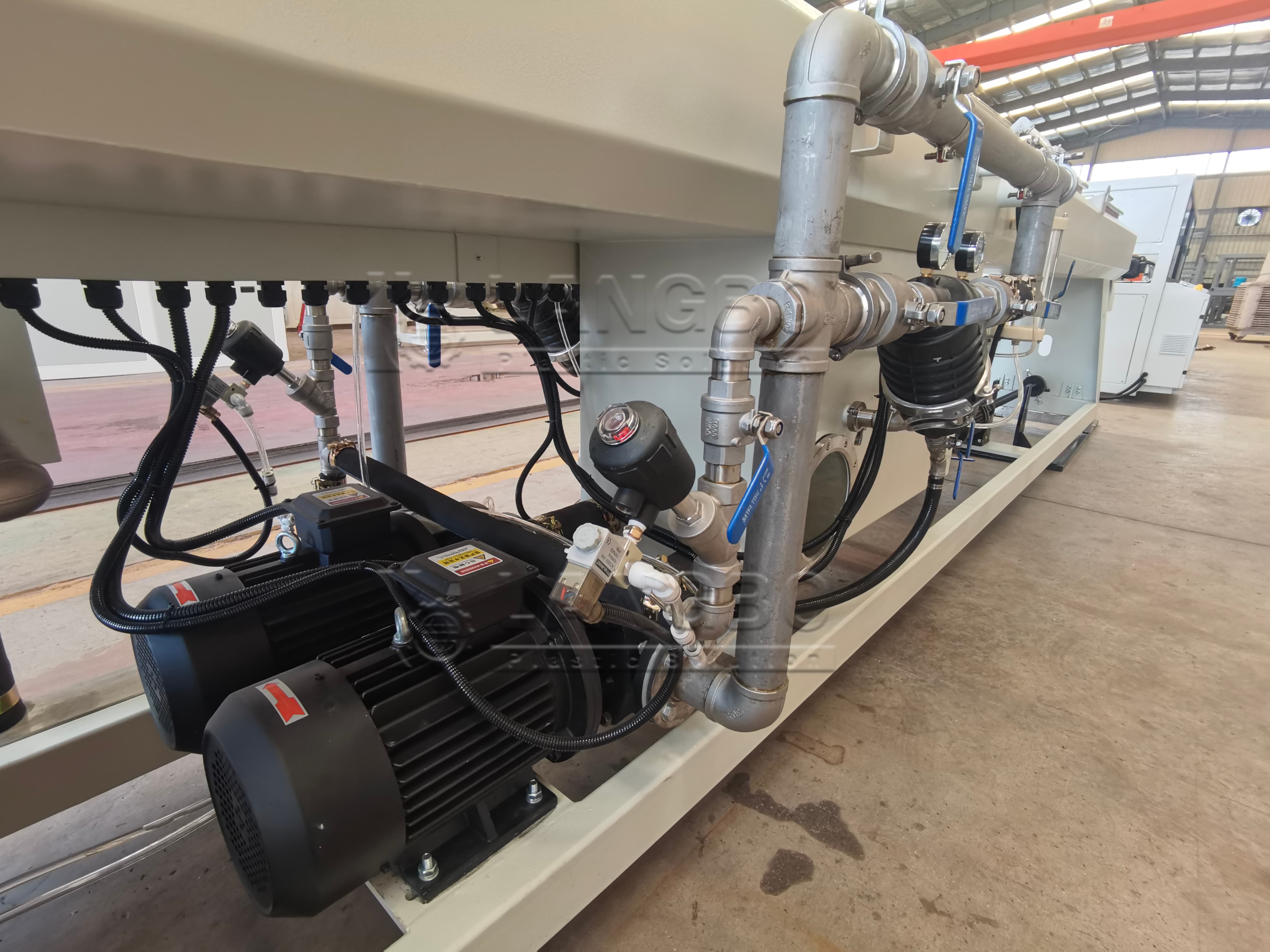

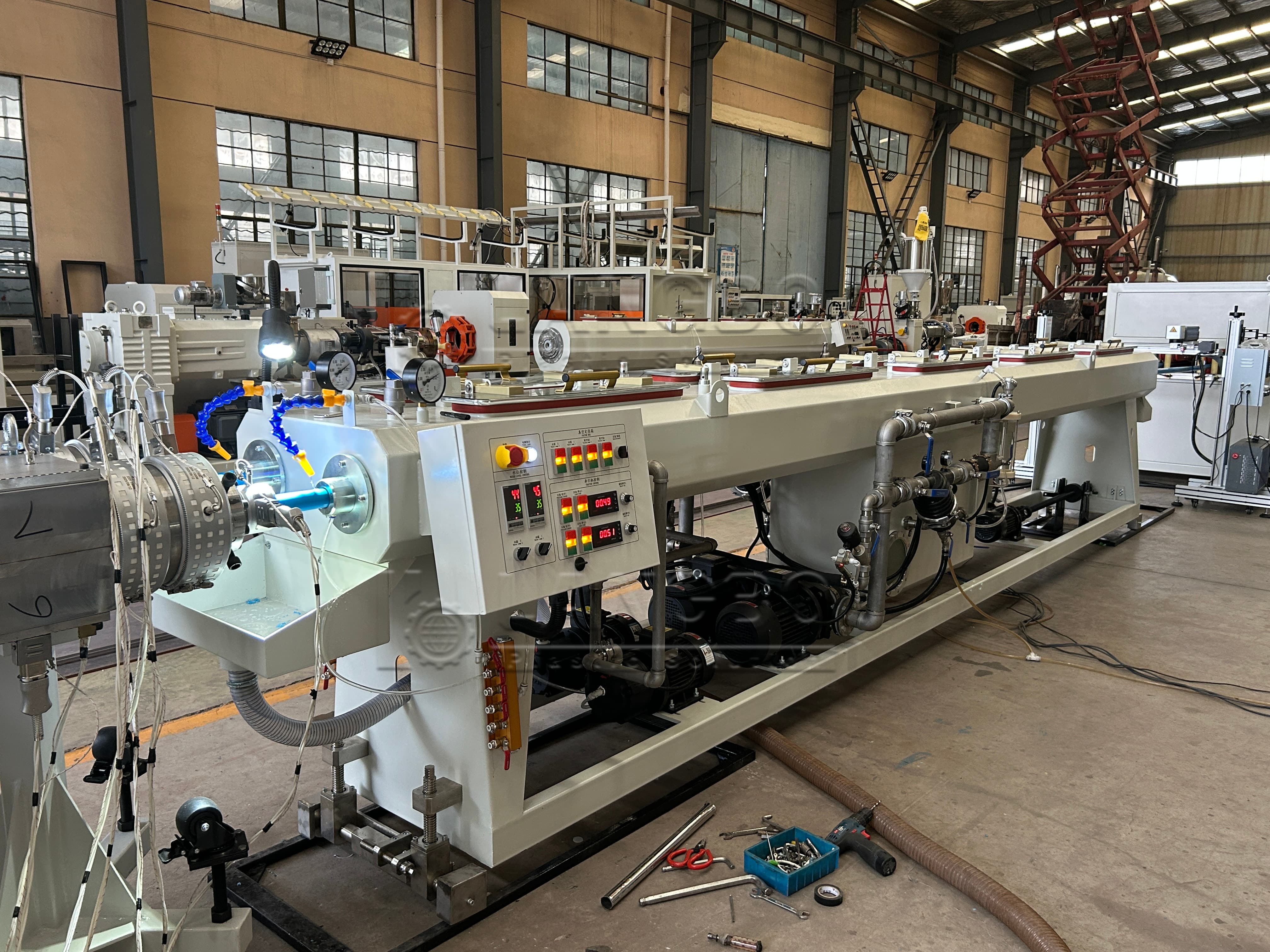

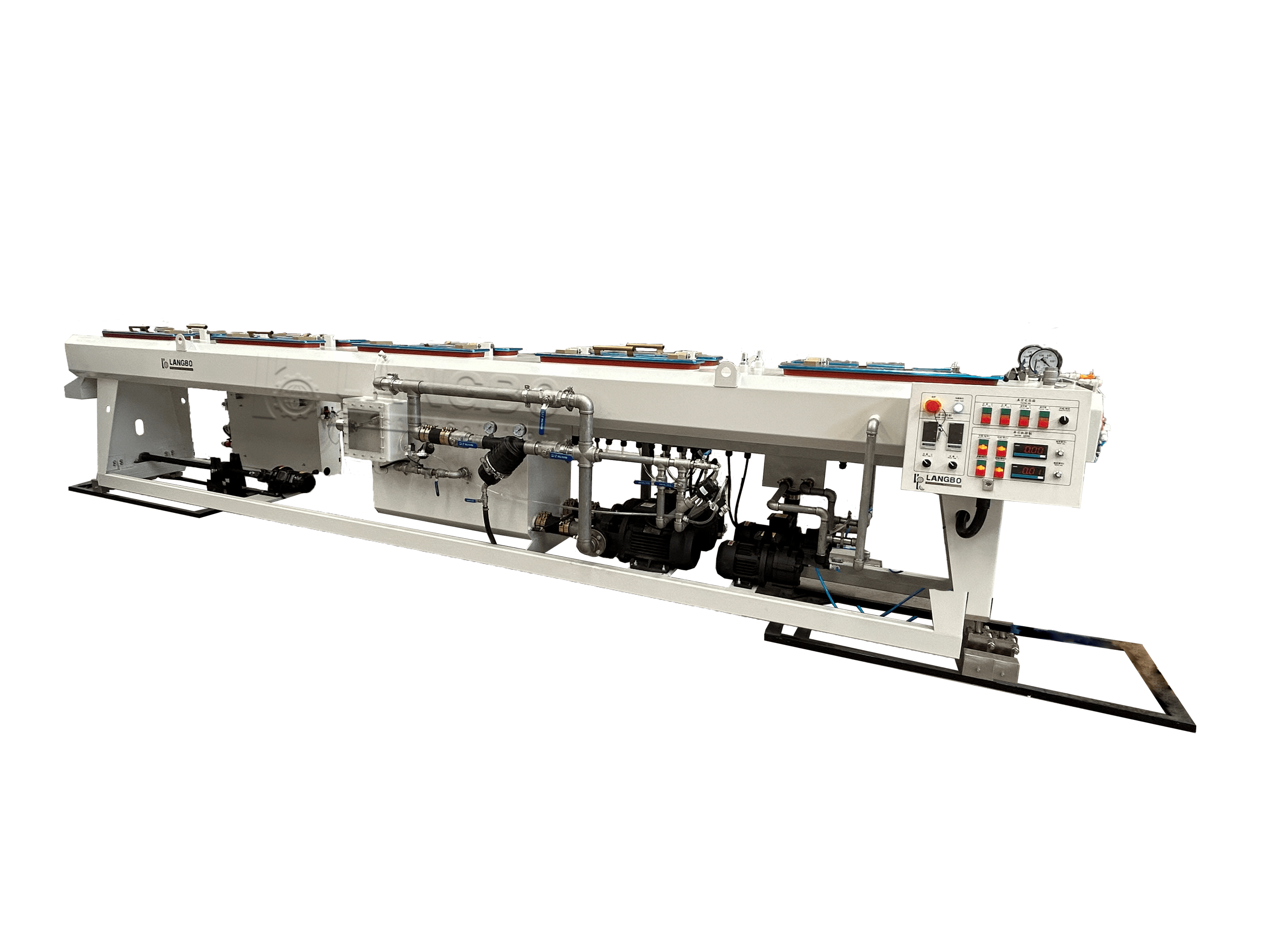

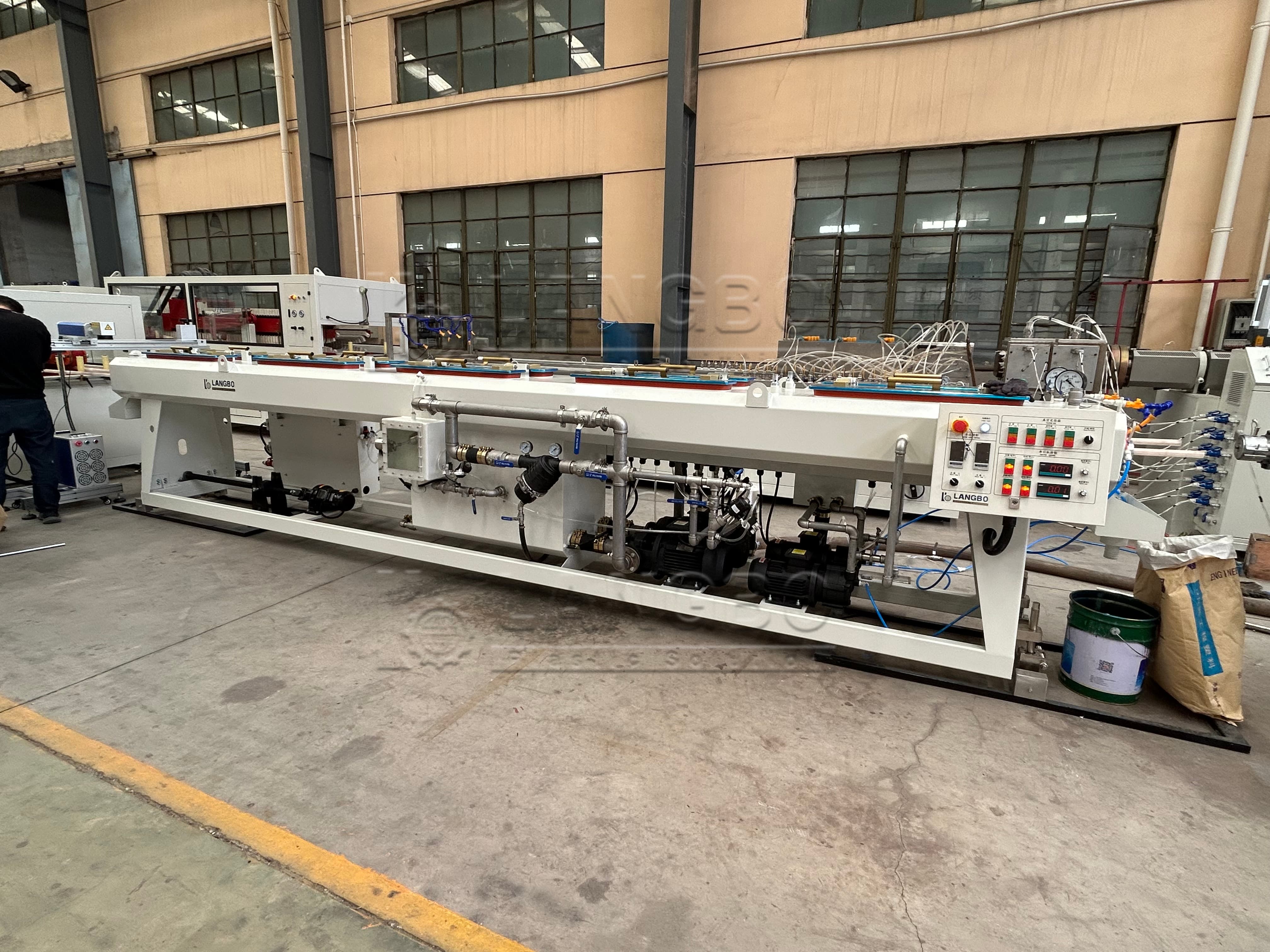

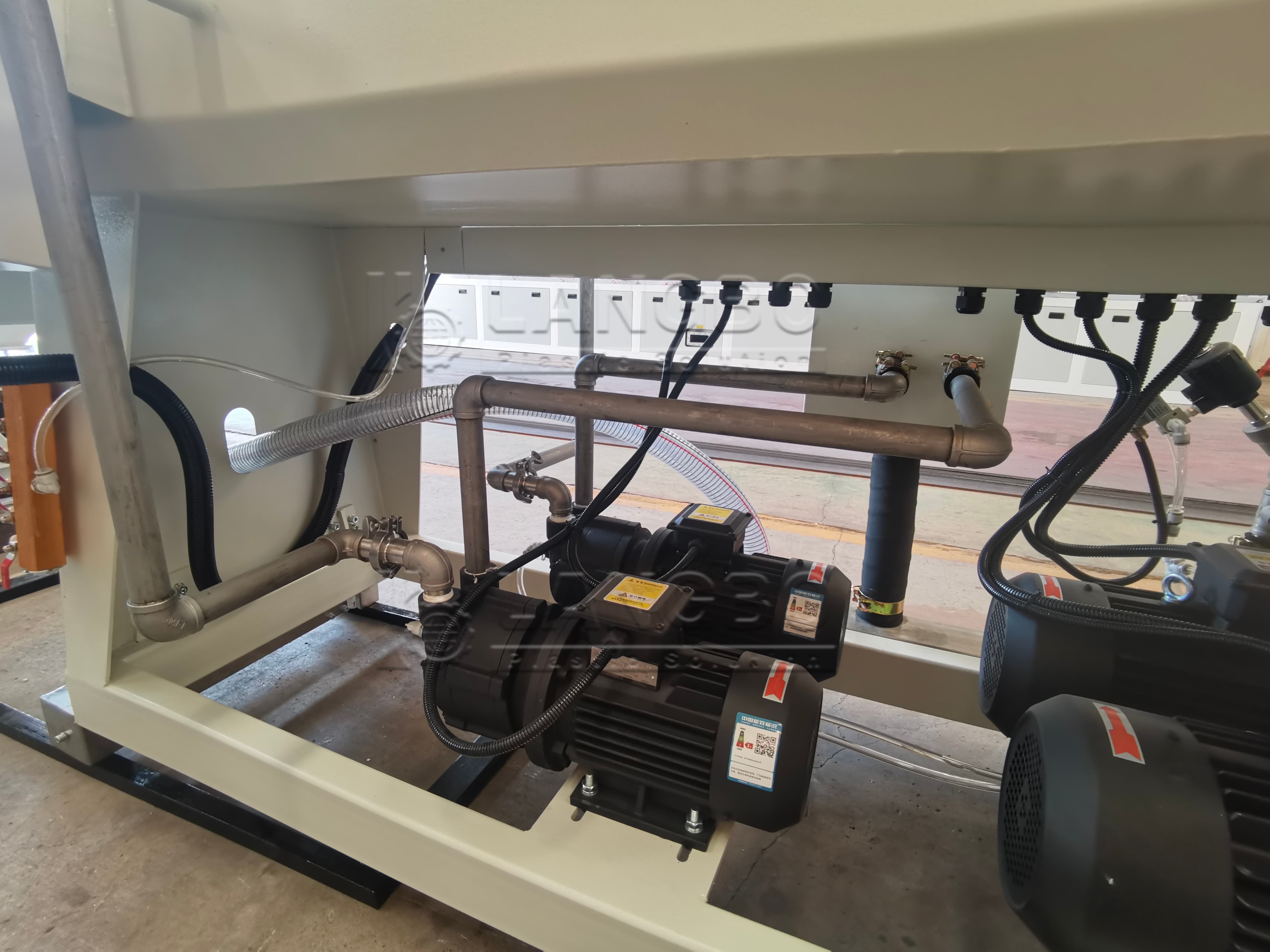

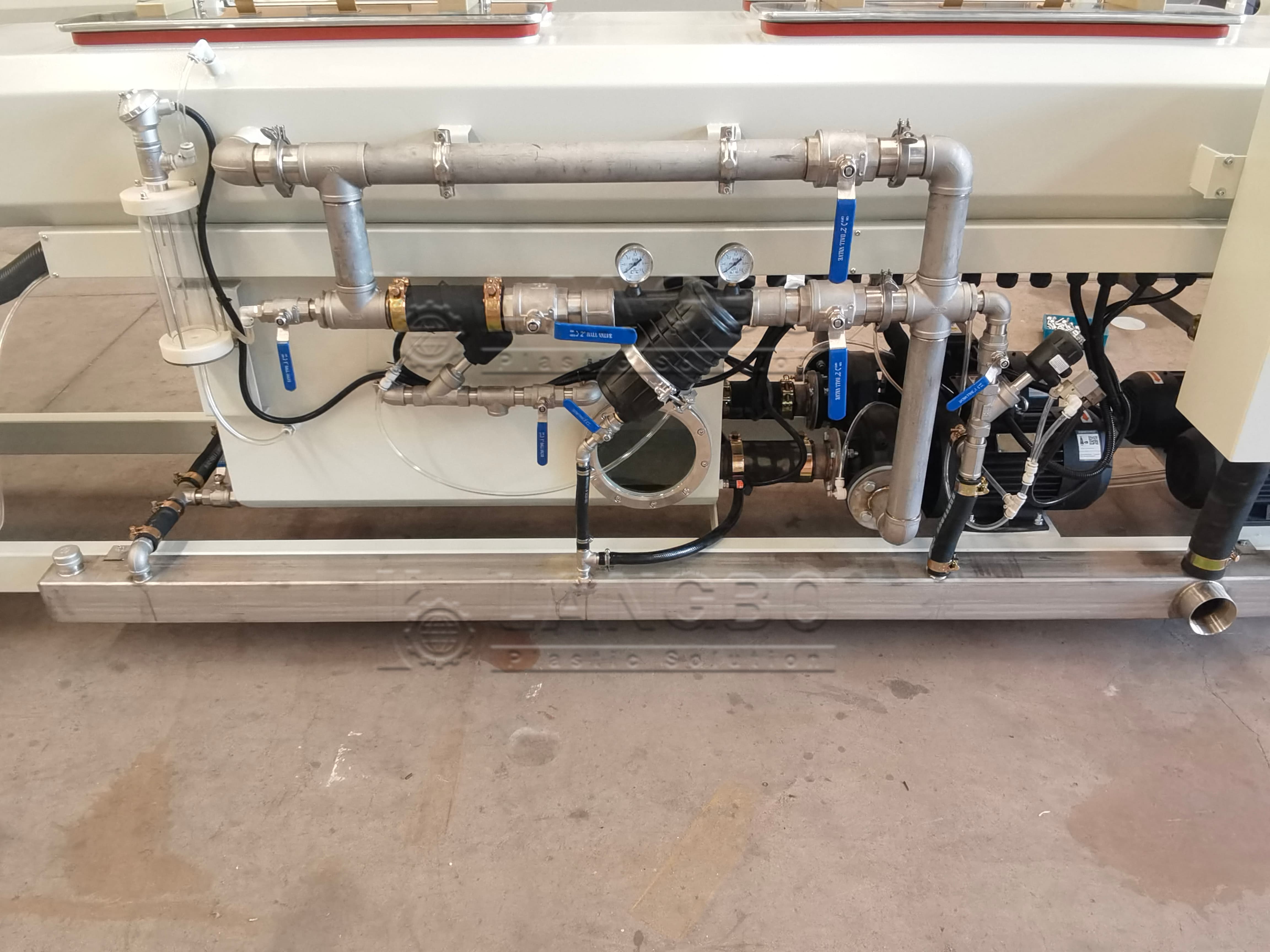

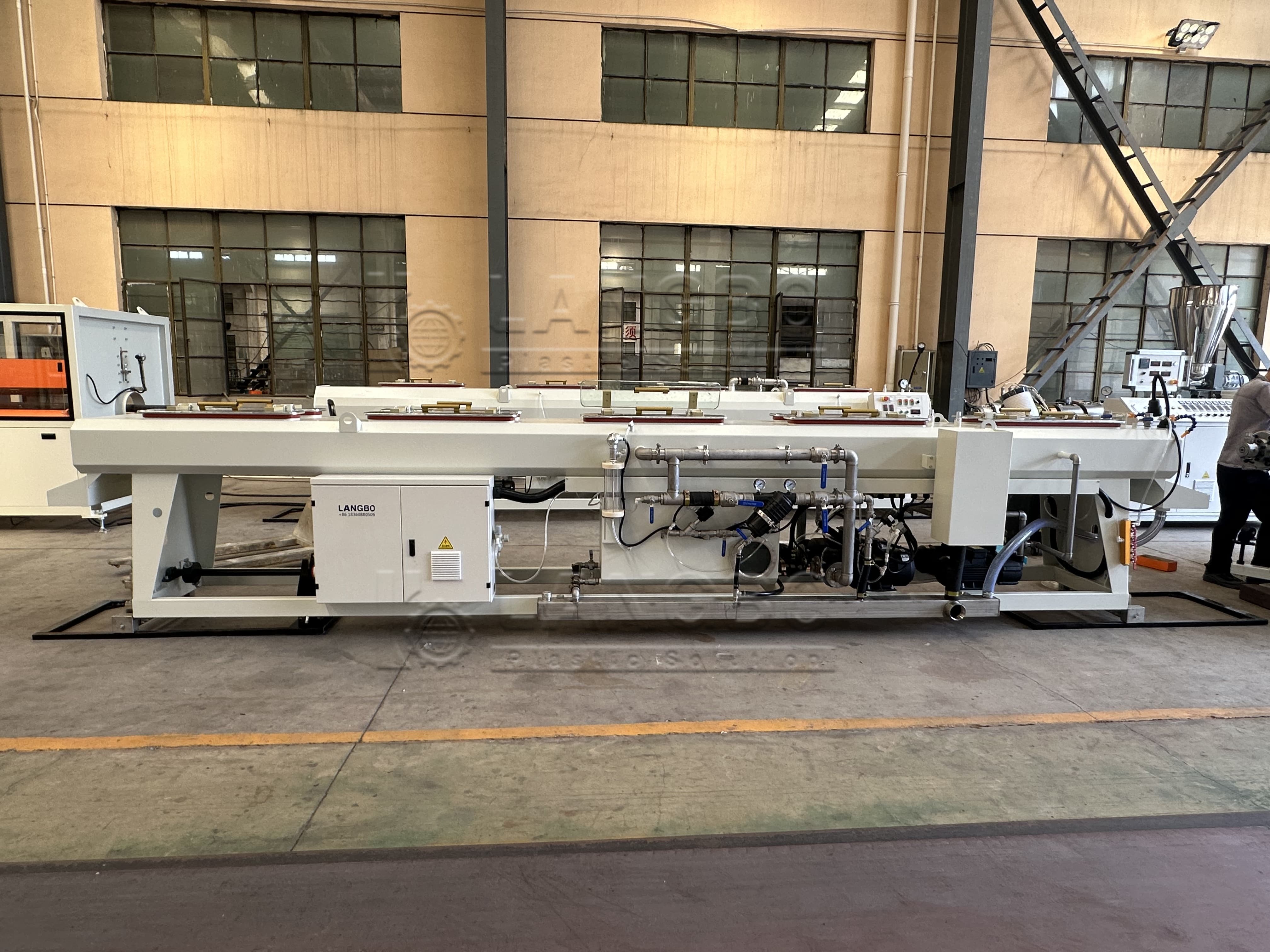

Separately cooling system for double strand with independent pumps system.

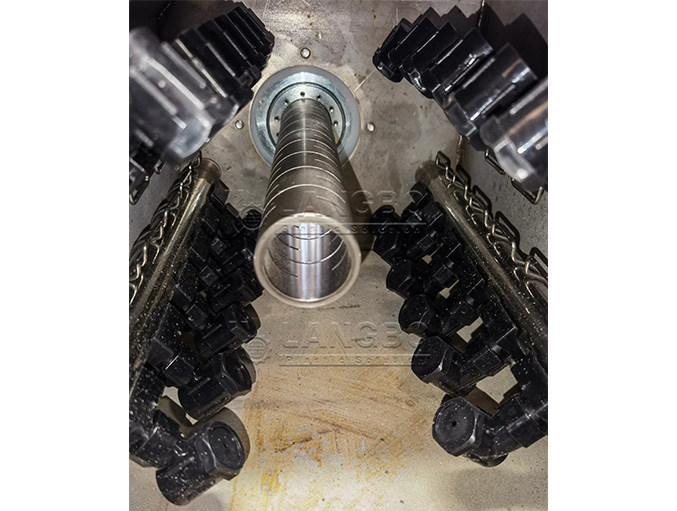

frequency conversion vacuum control system for constant vacuum environment with lowest energy consumption.

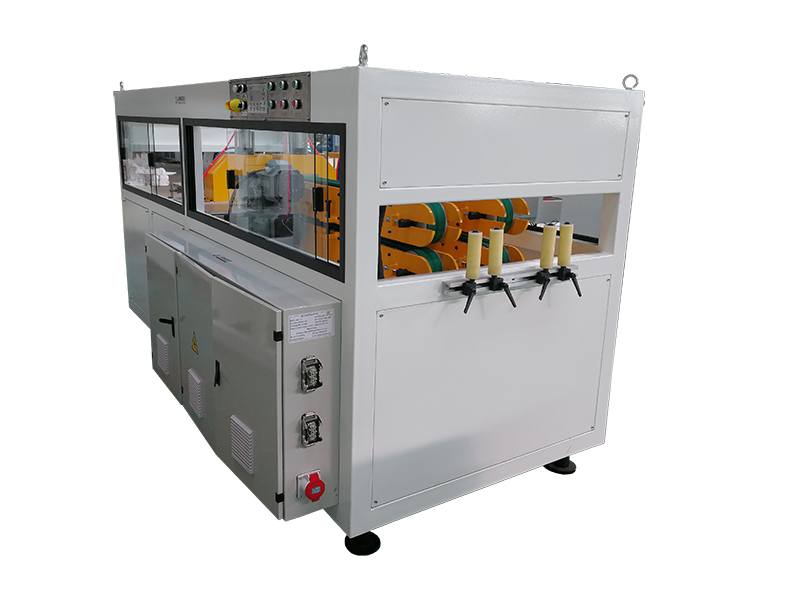

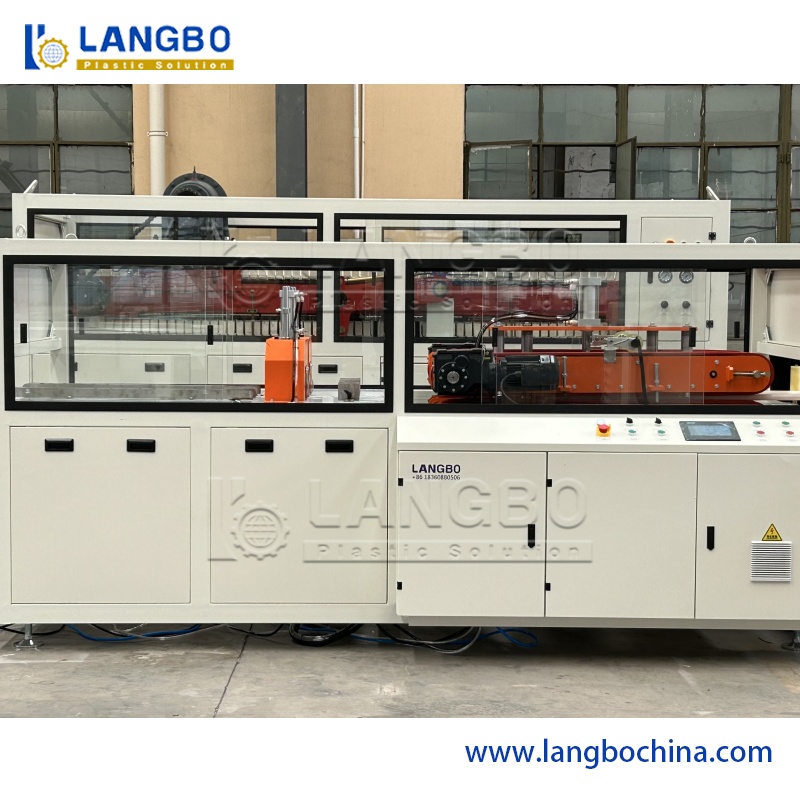

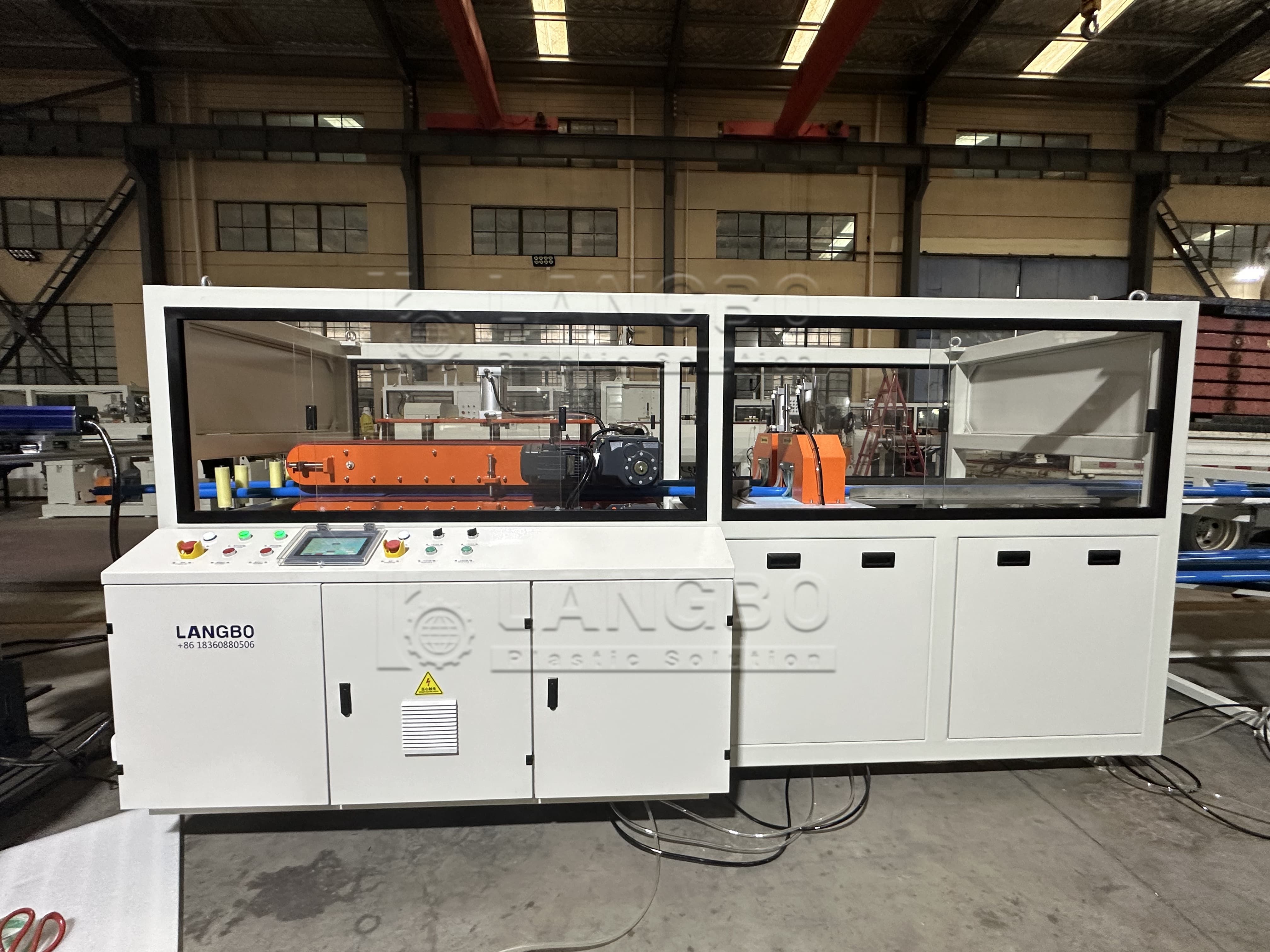

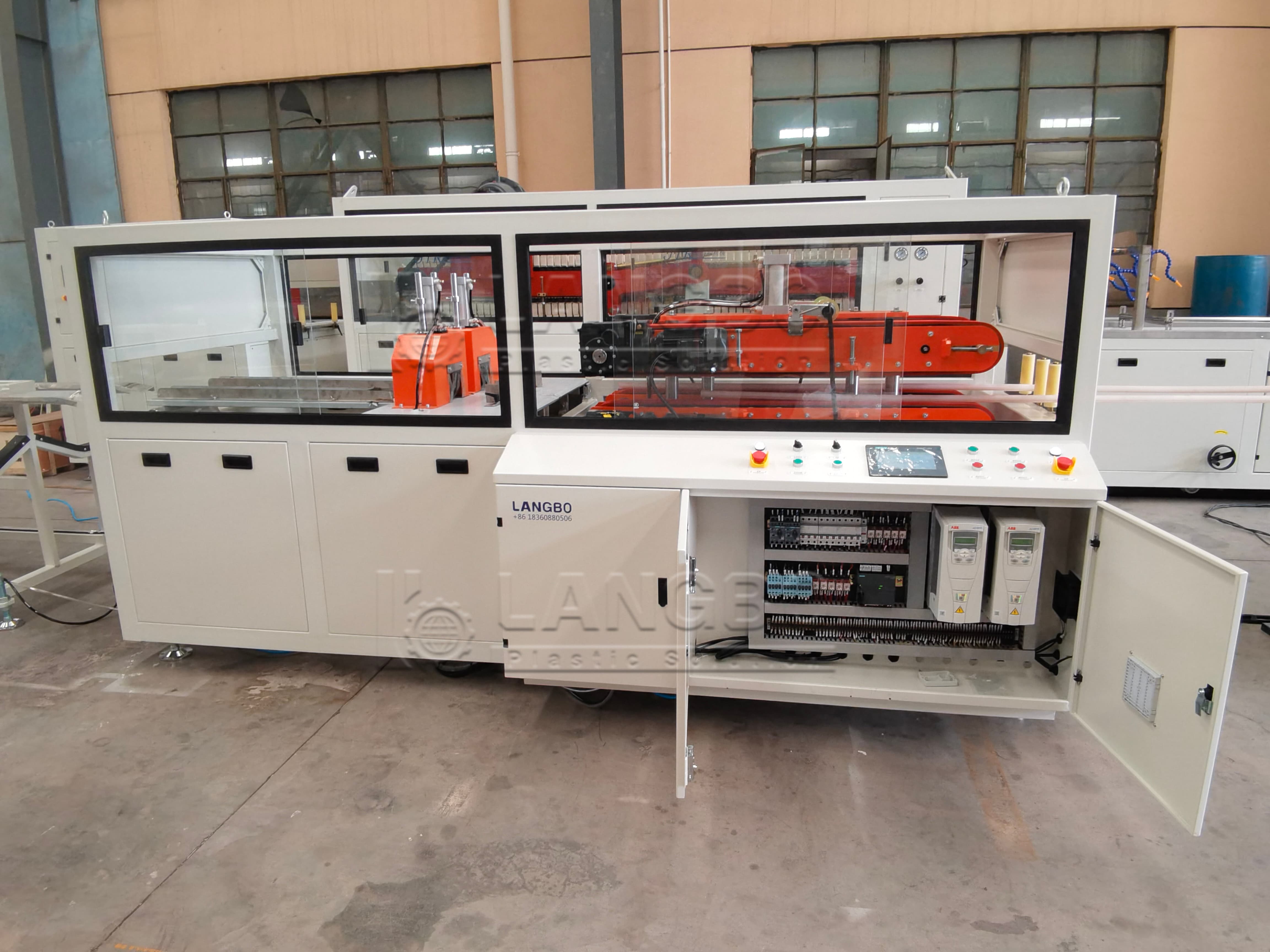

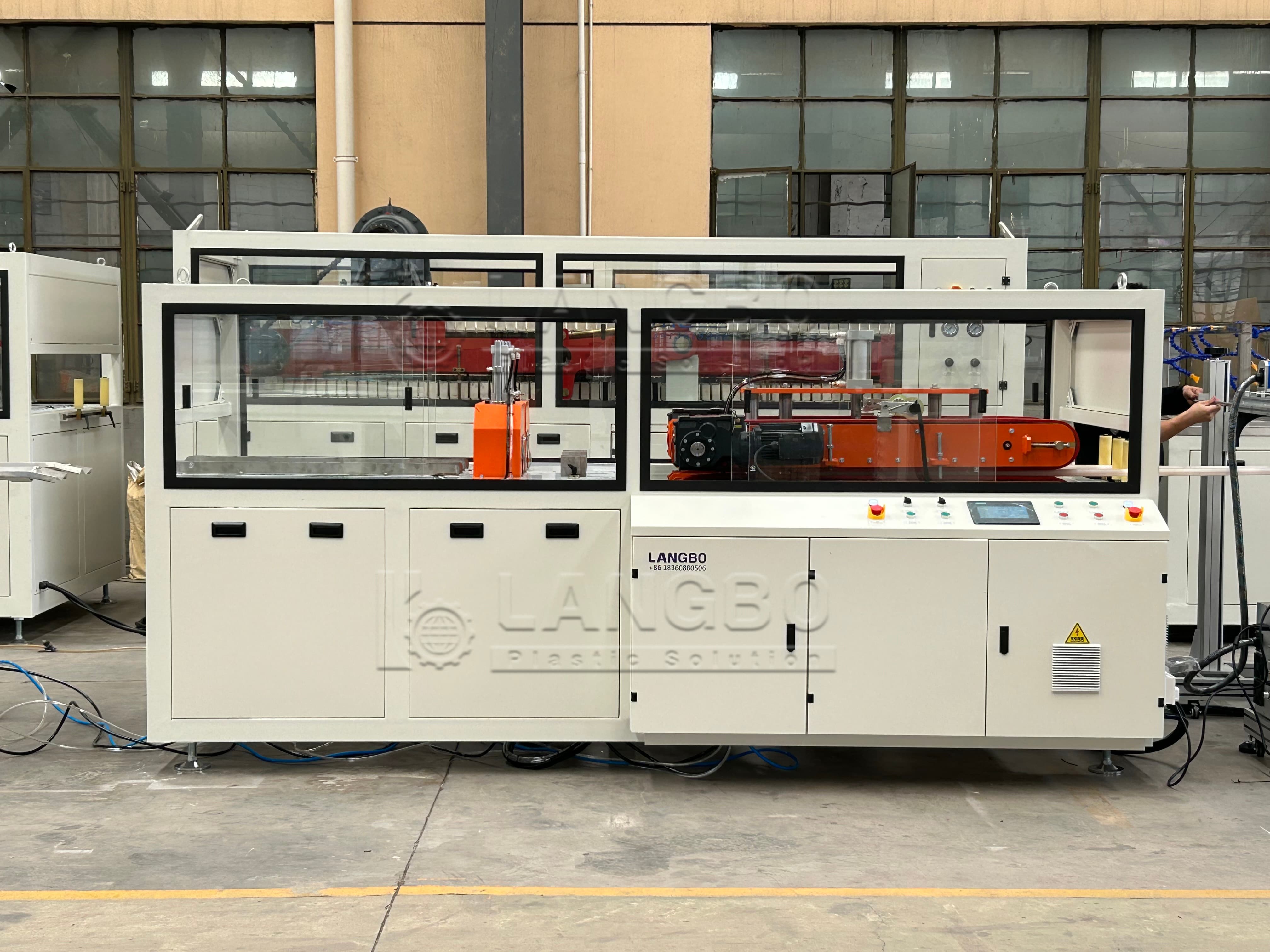

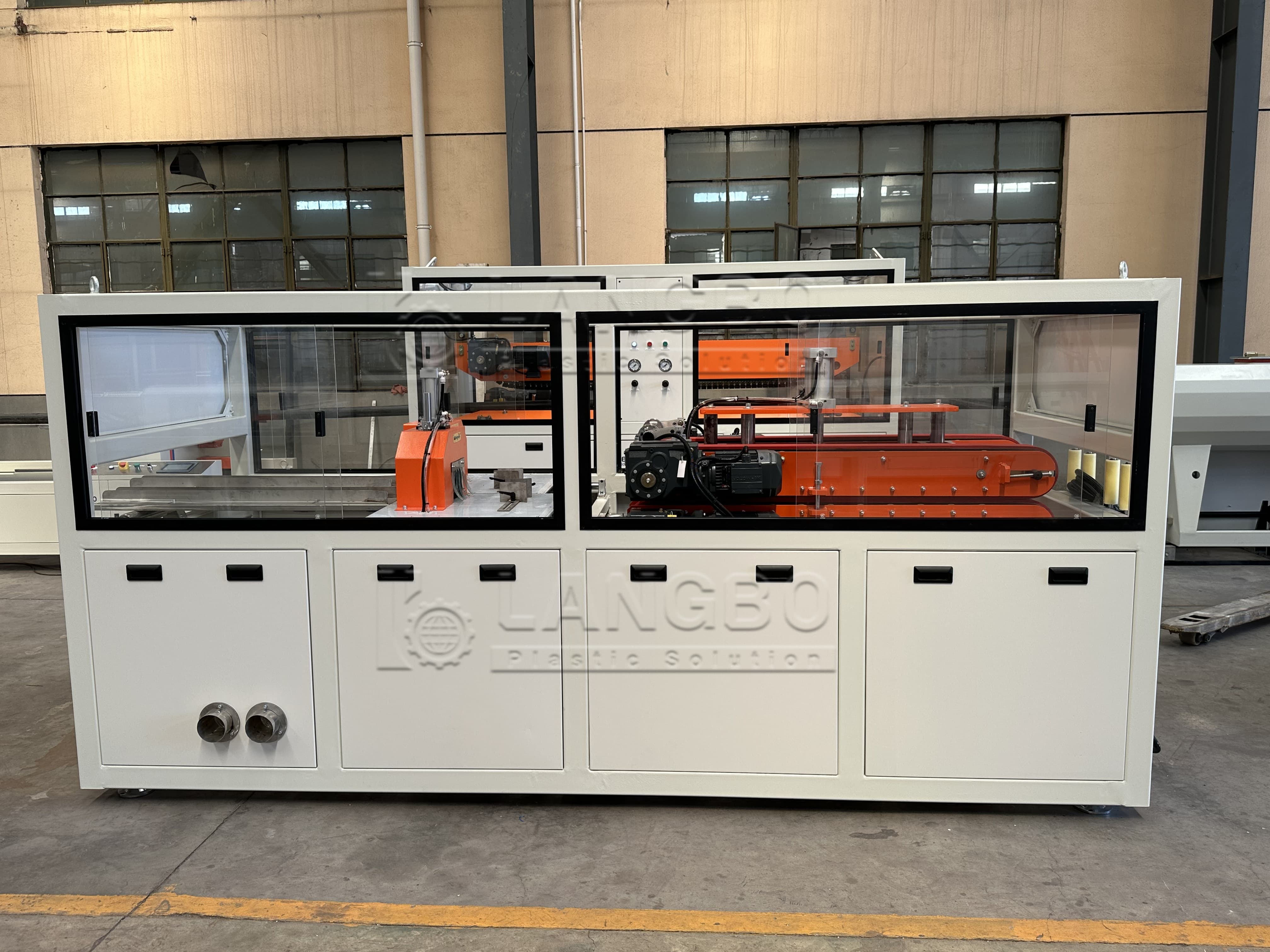

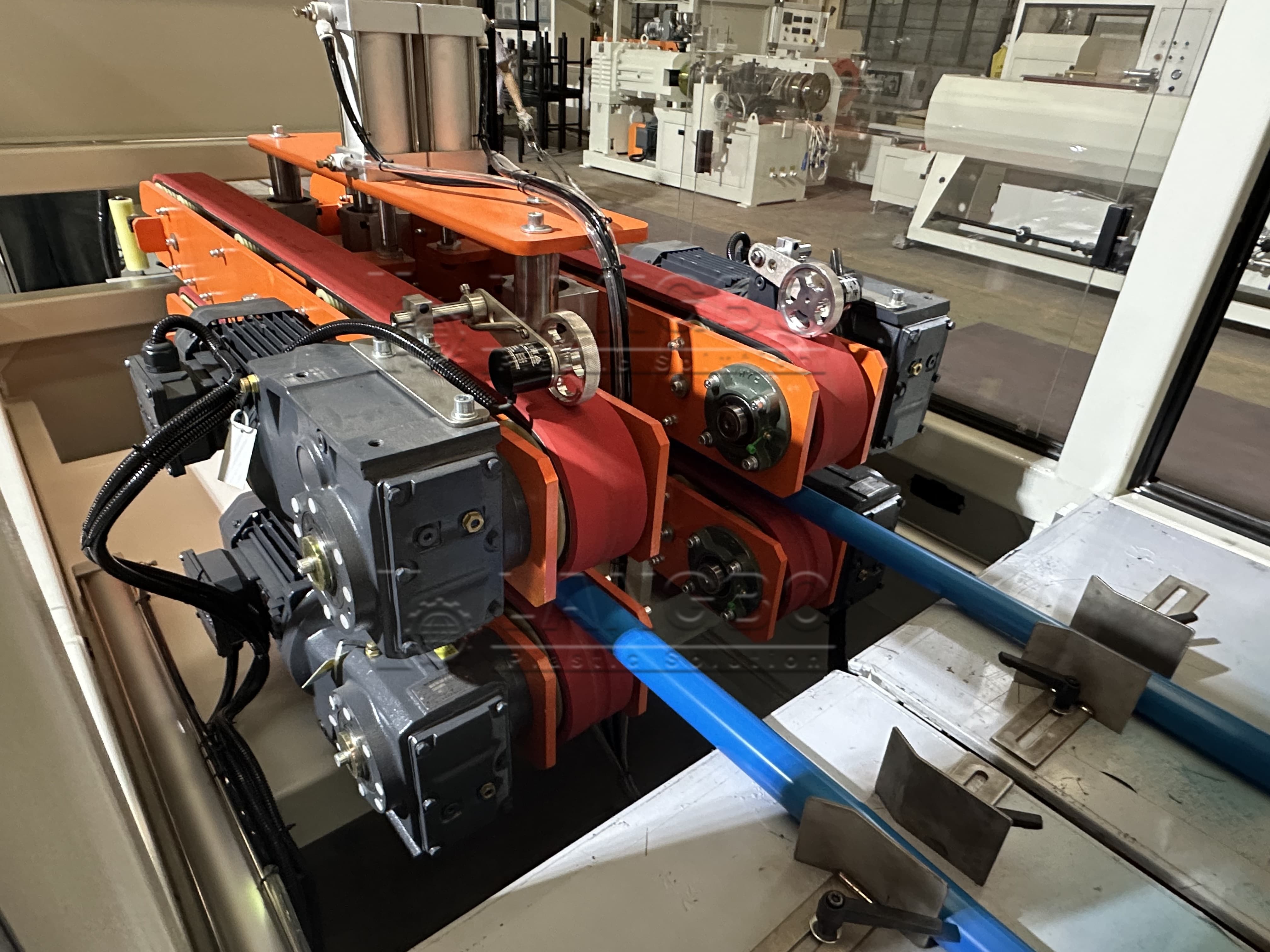

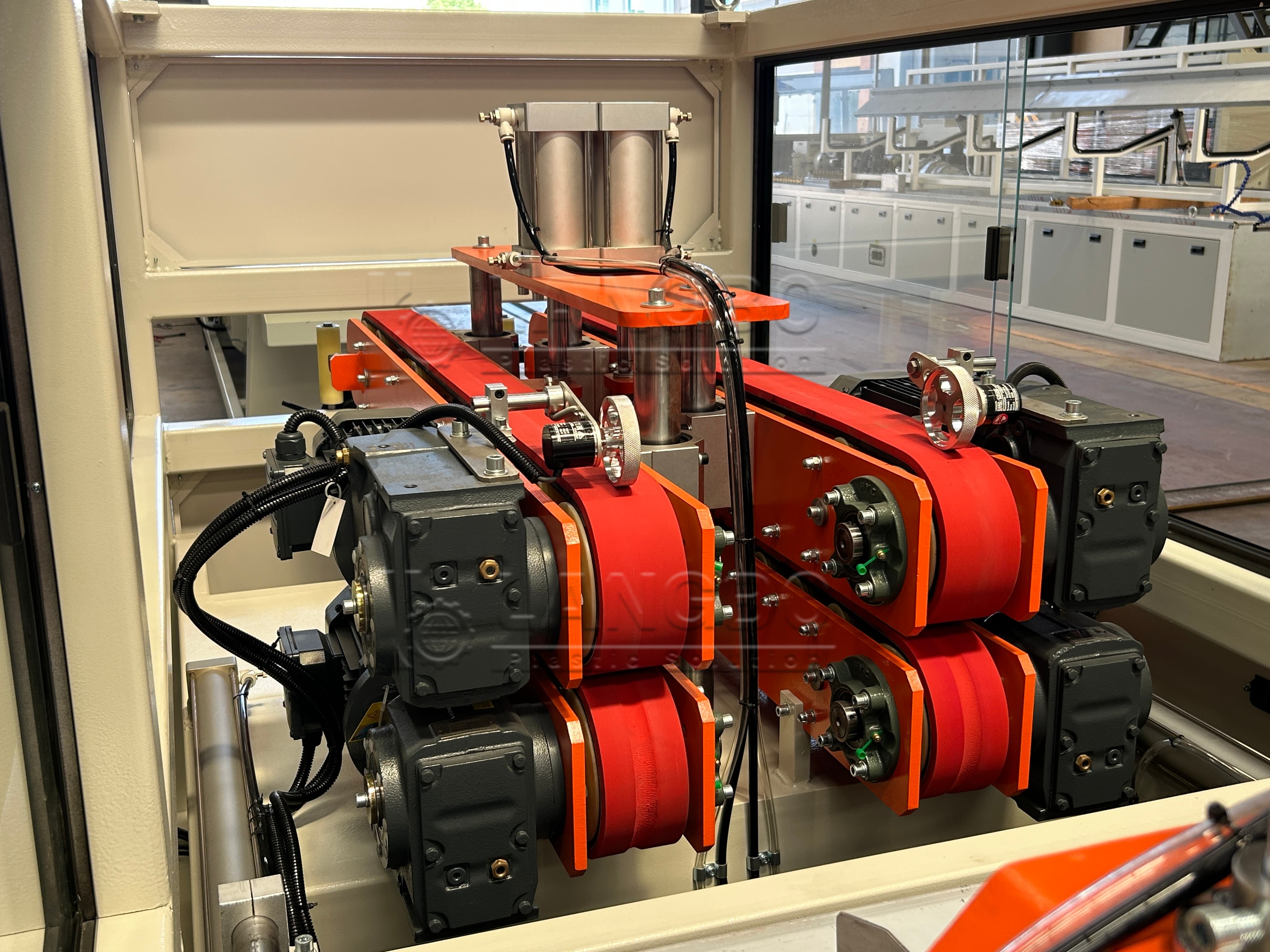

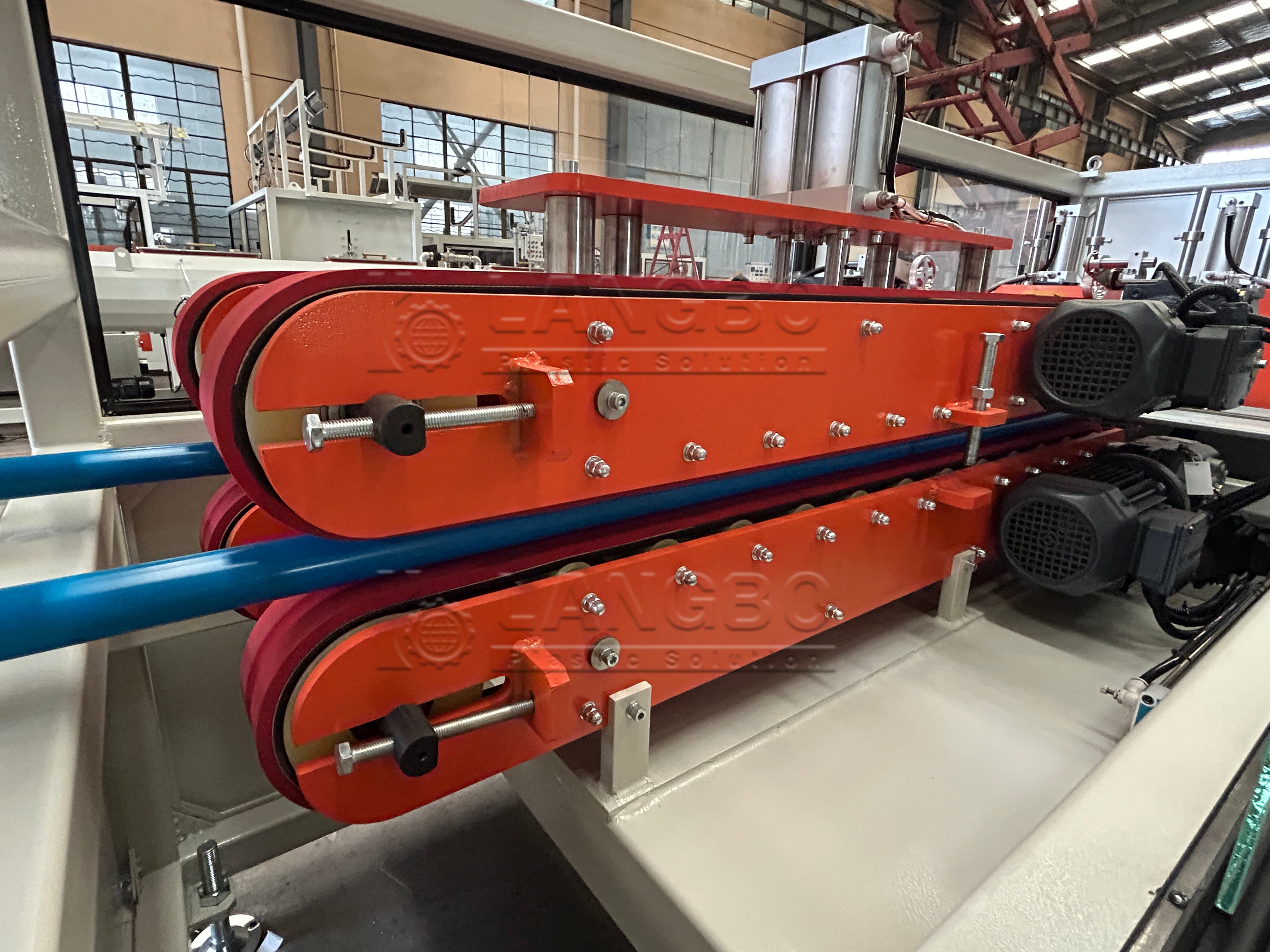

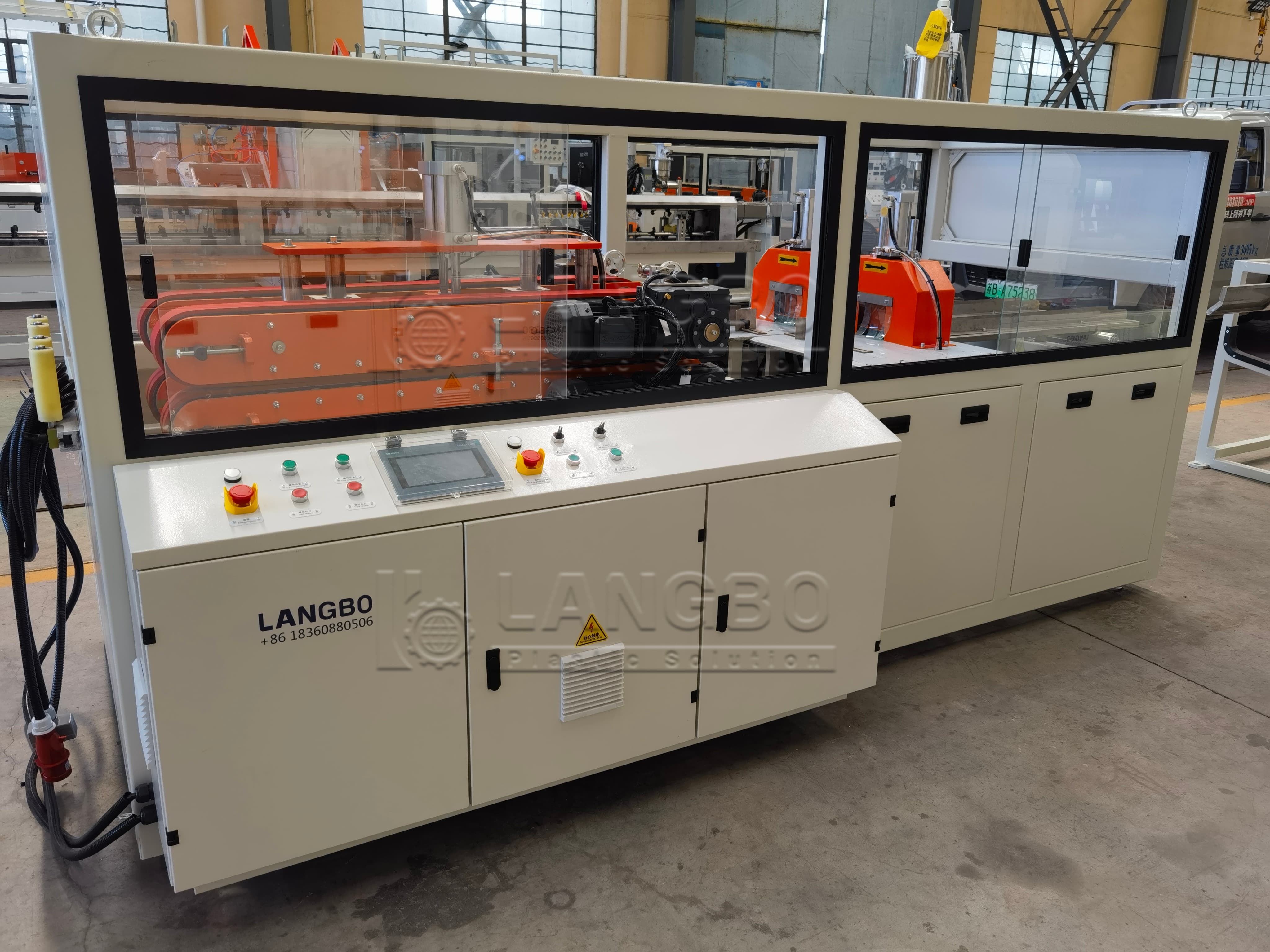

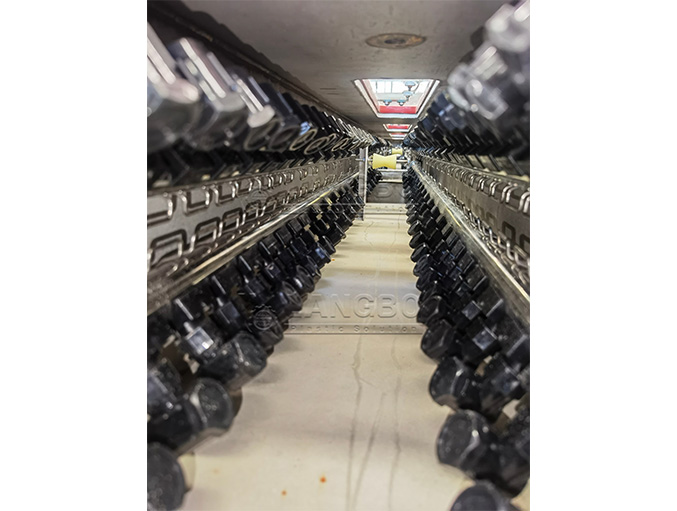

Servo Motor and high-quality reducer for synchronized movement of belt or caterpillar
Customized hauling concept adopted based on certain production requirement

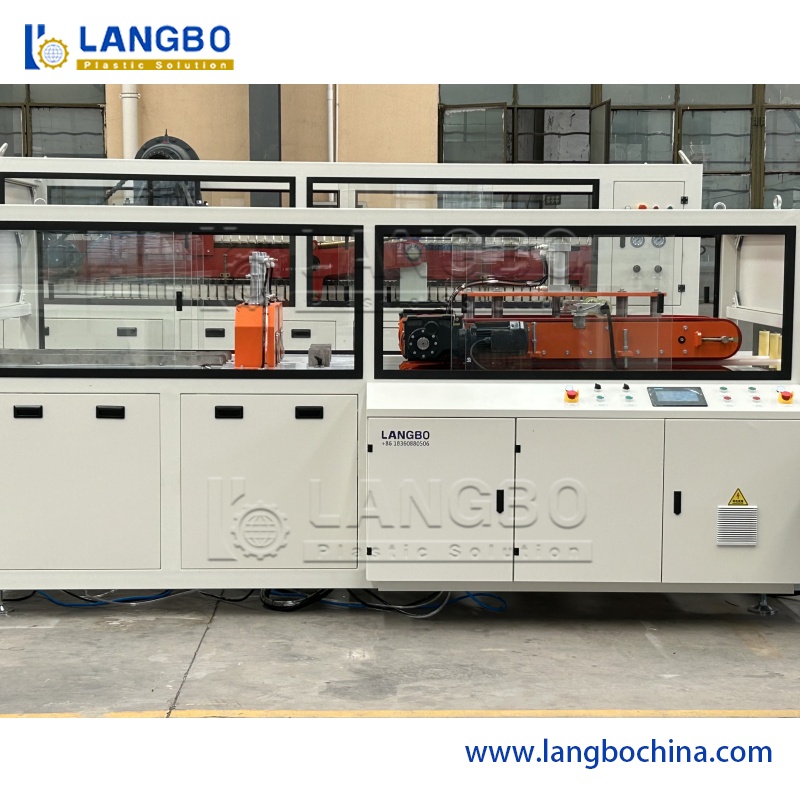

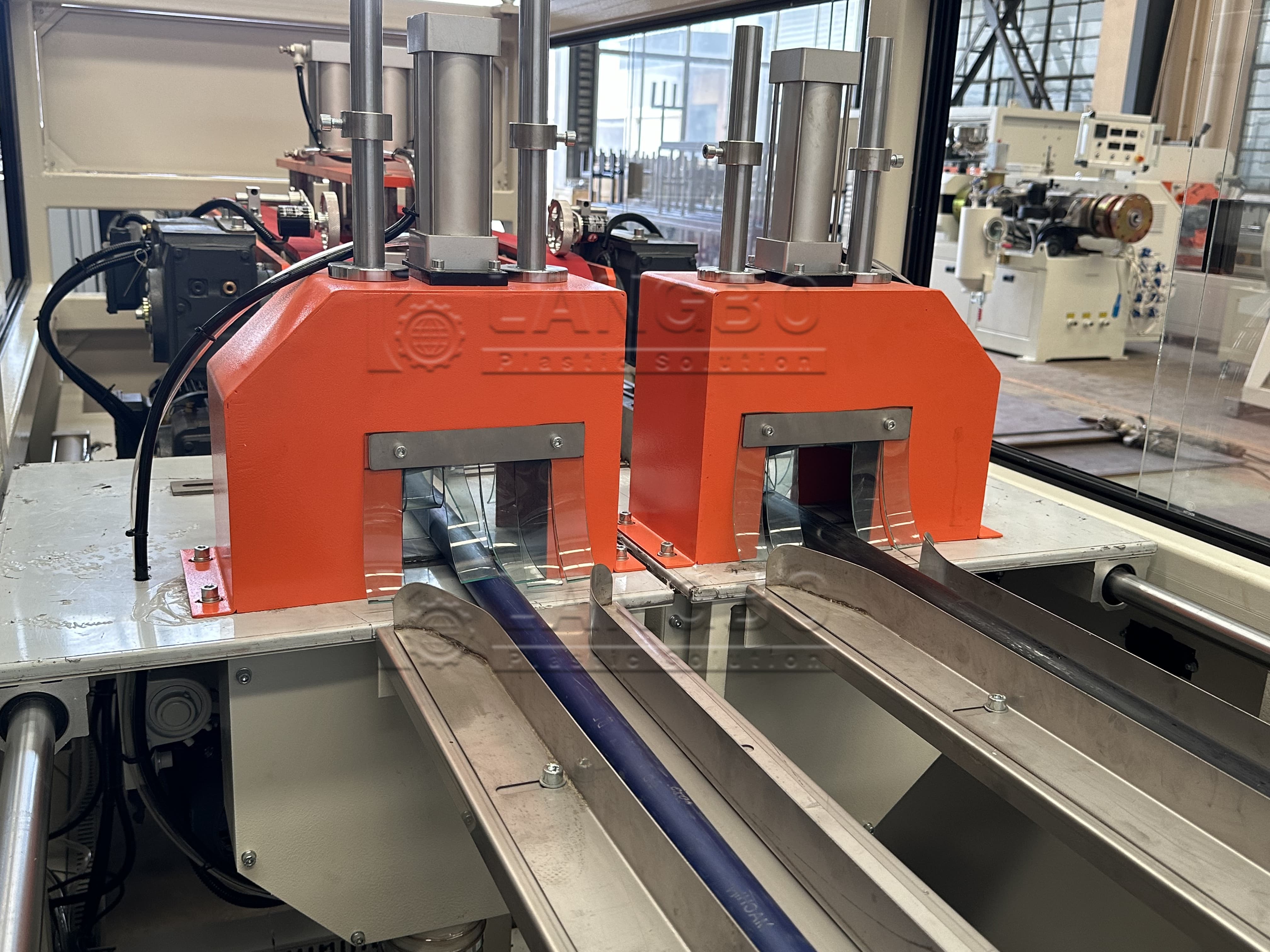

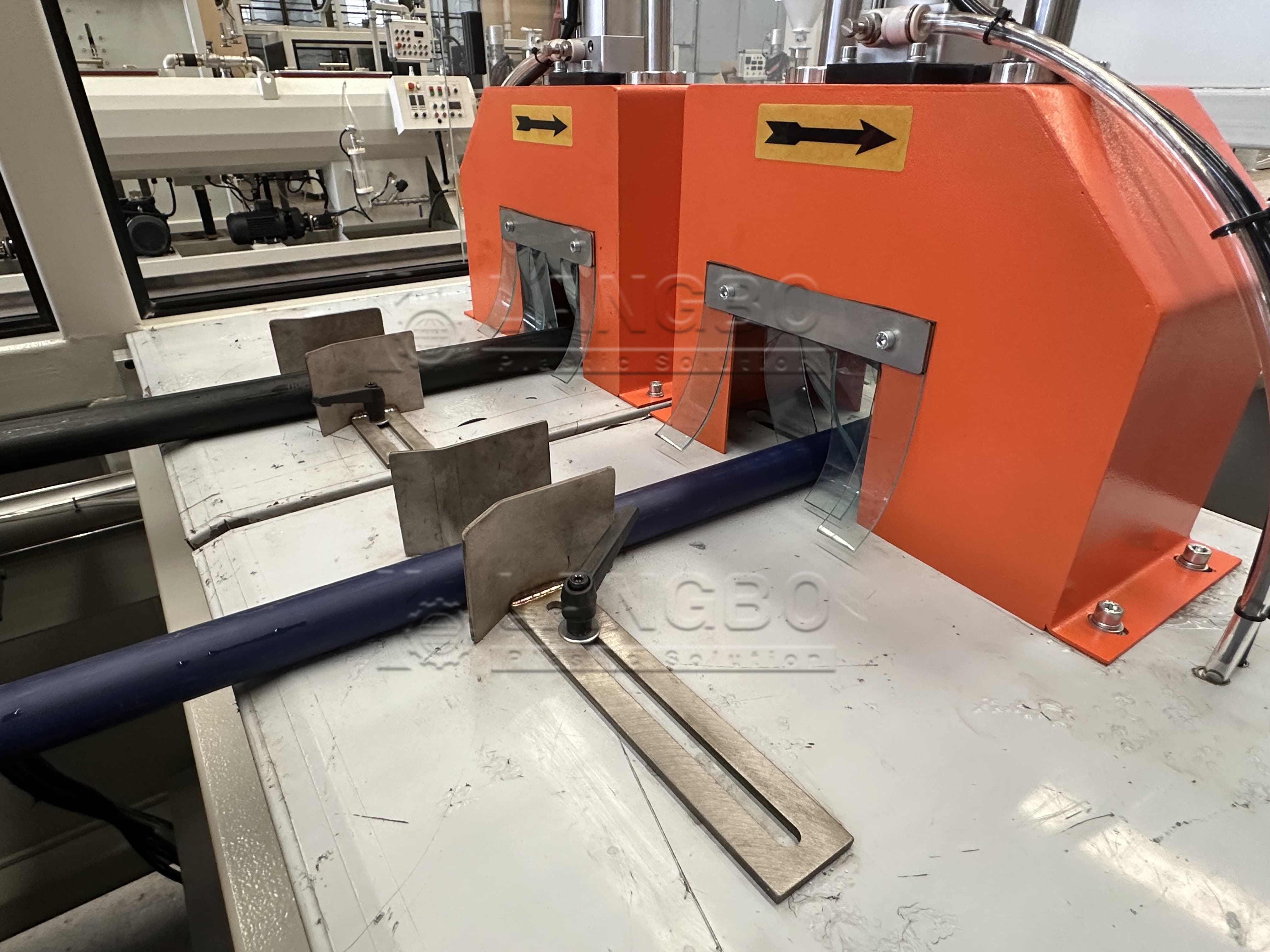

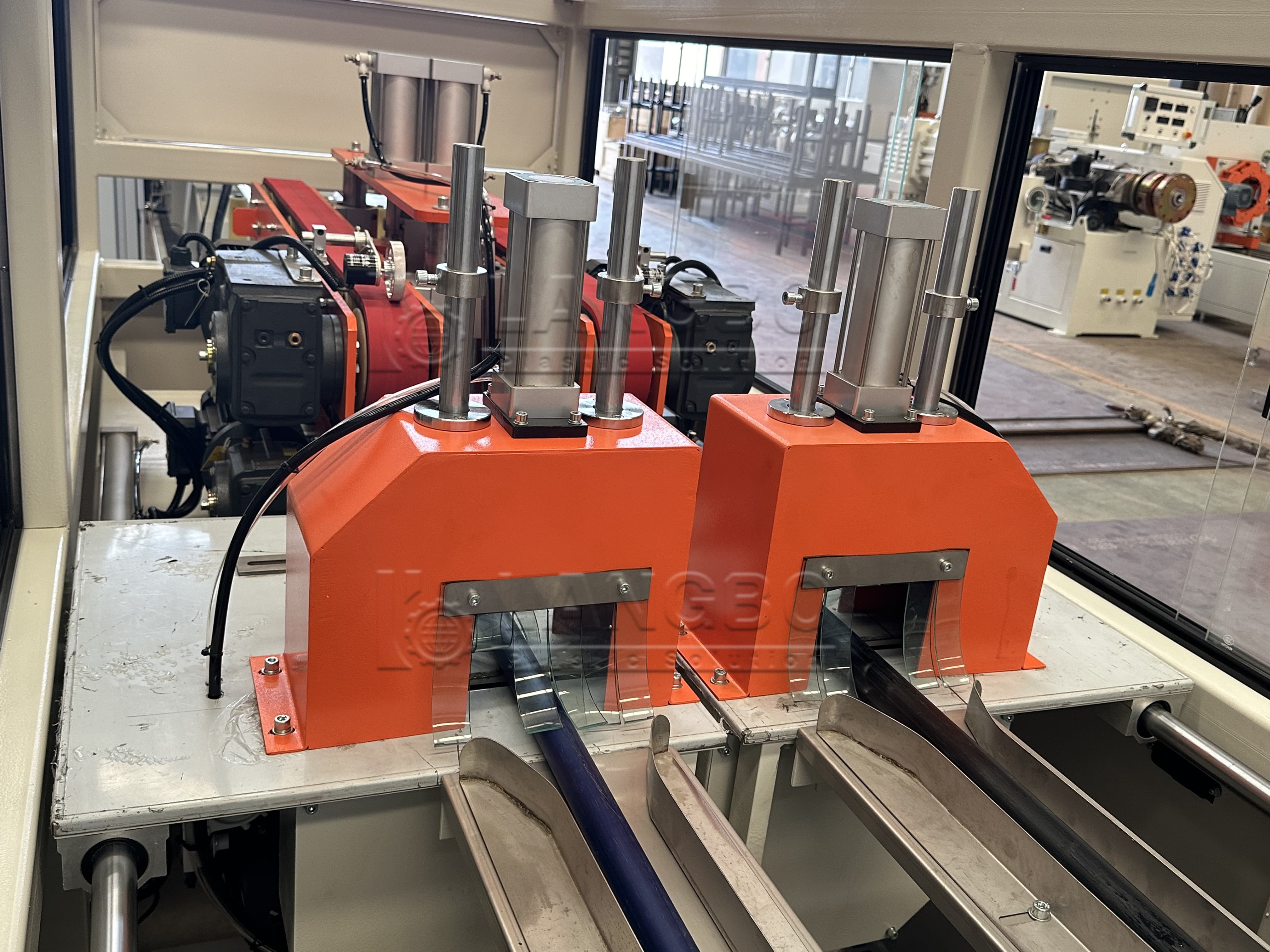

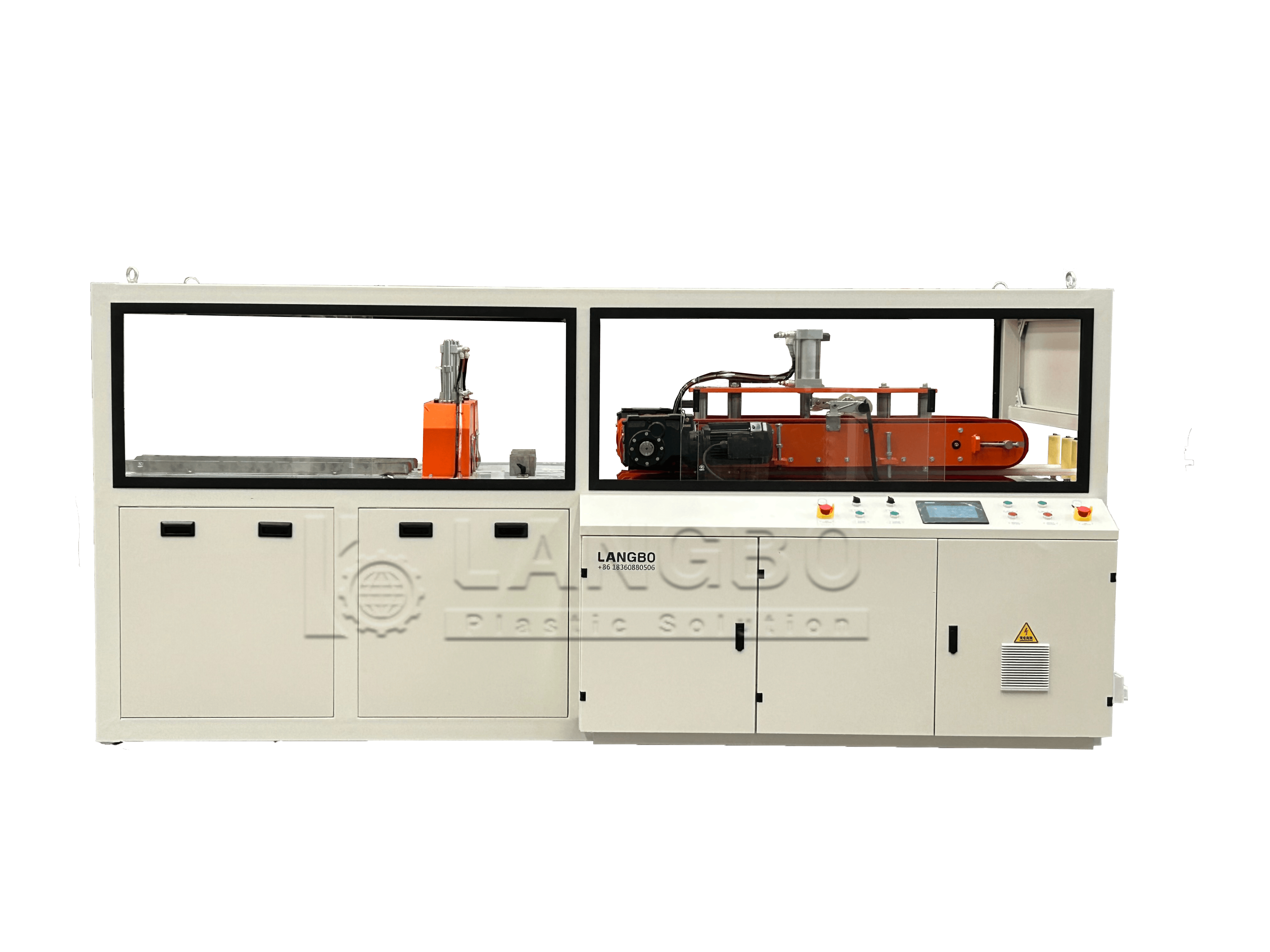

Suitable cutting concept base

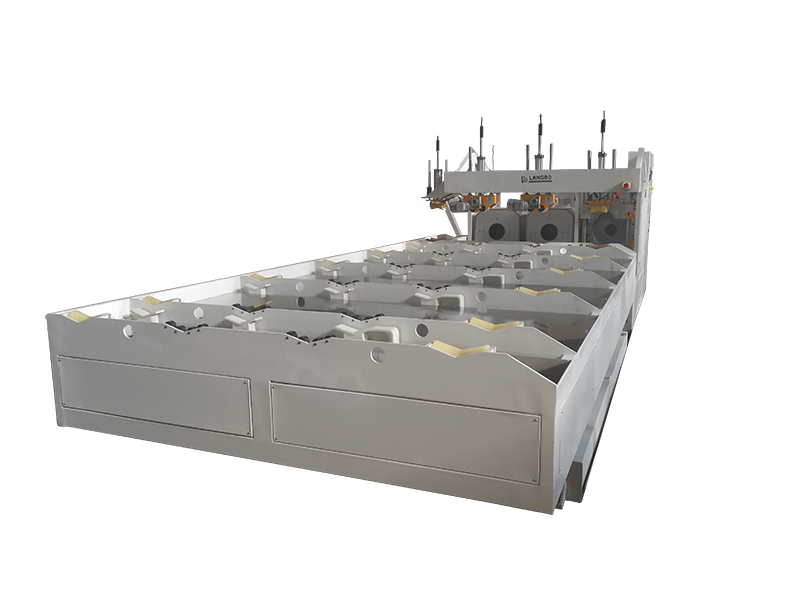

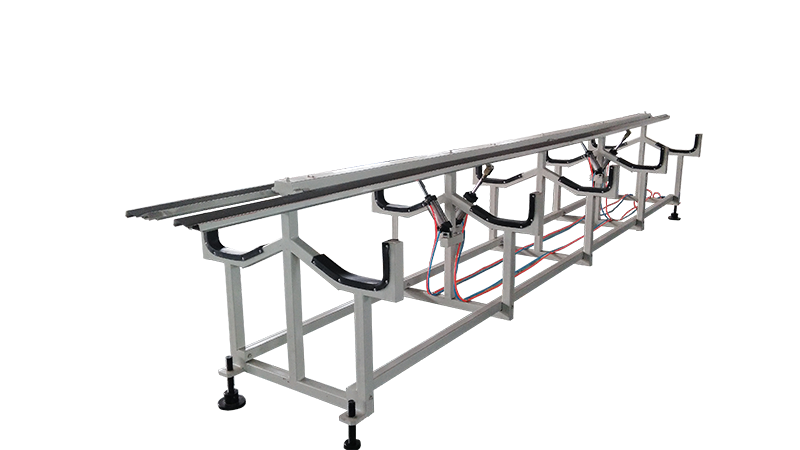

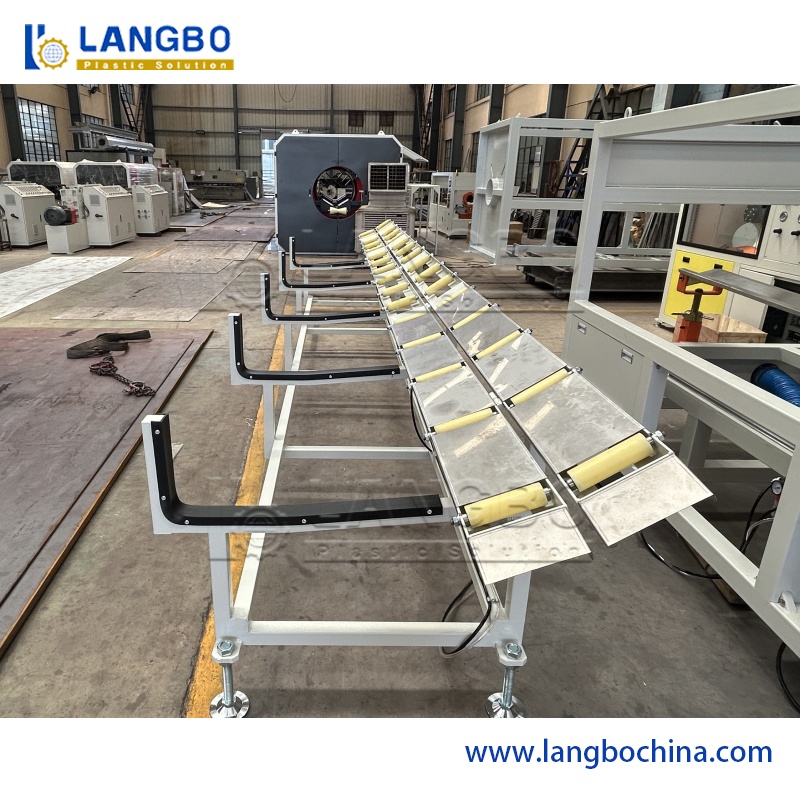

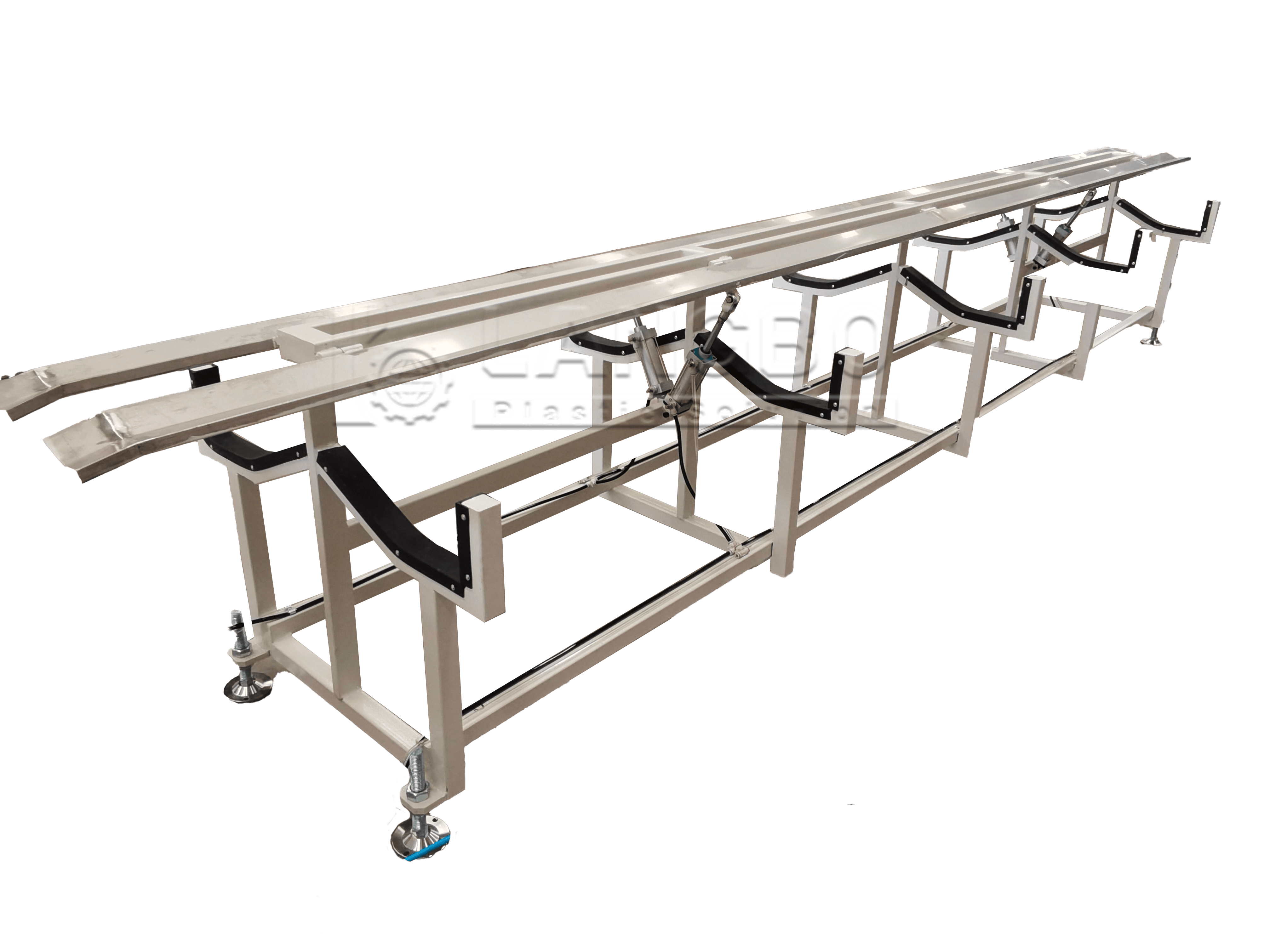

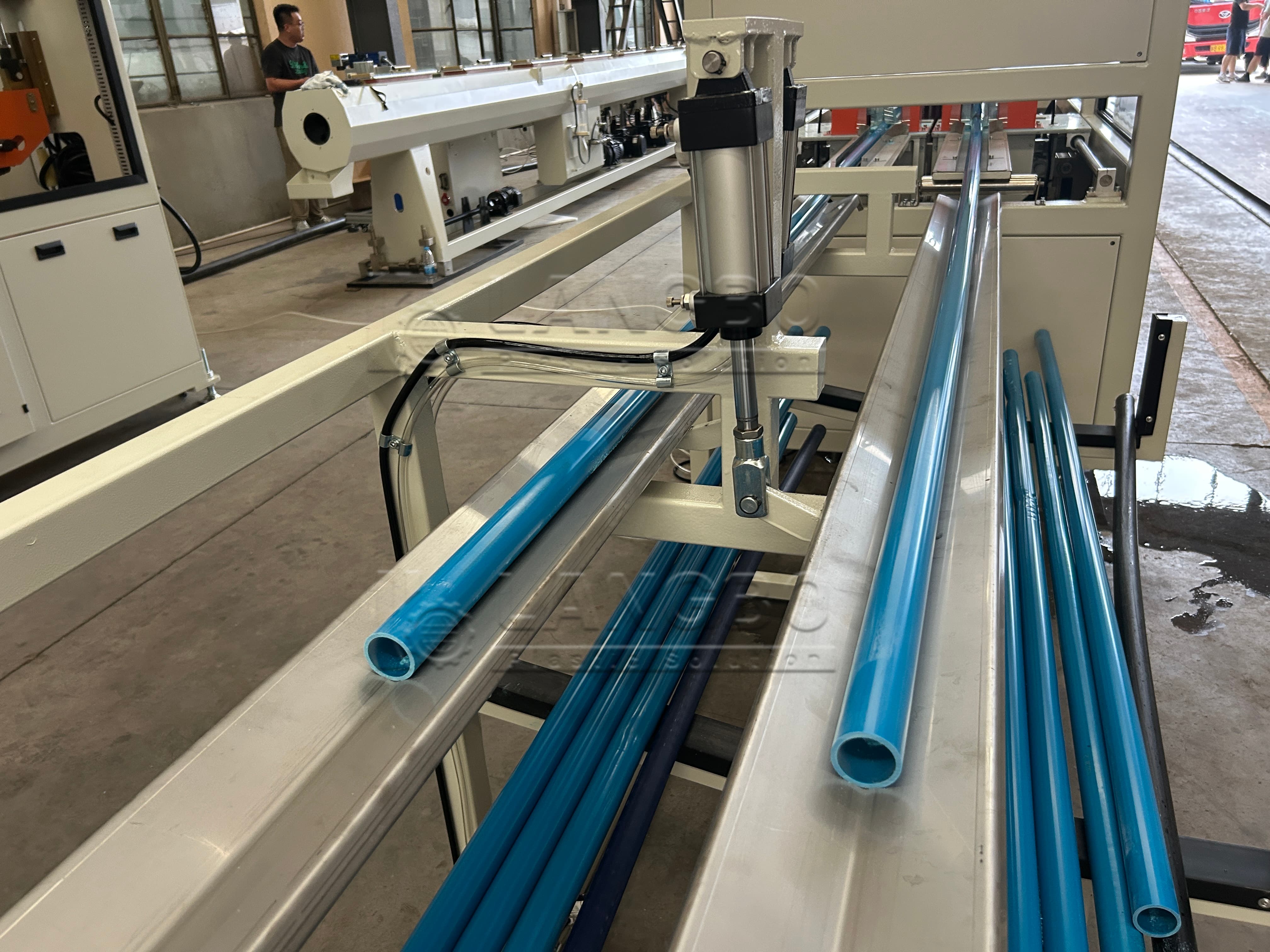

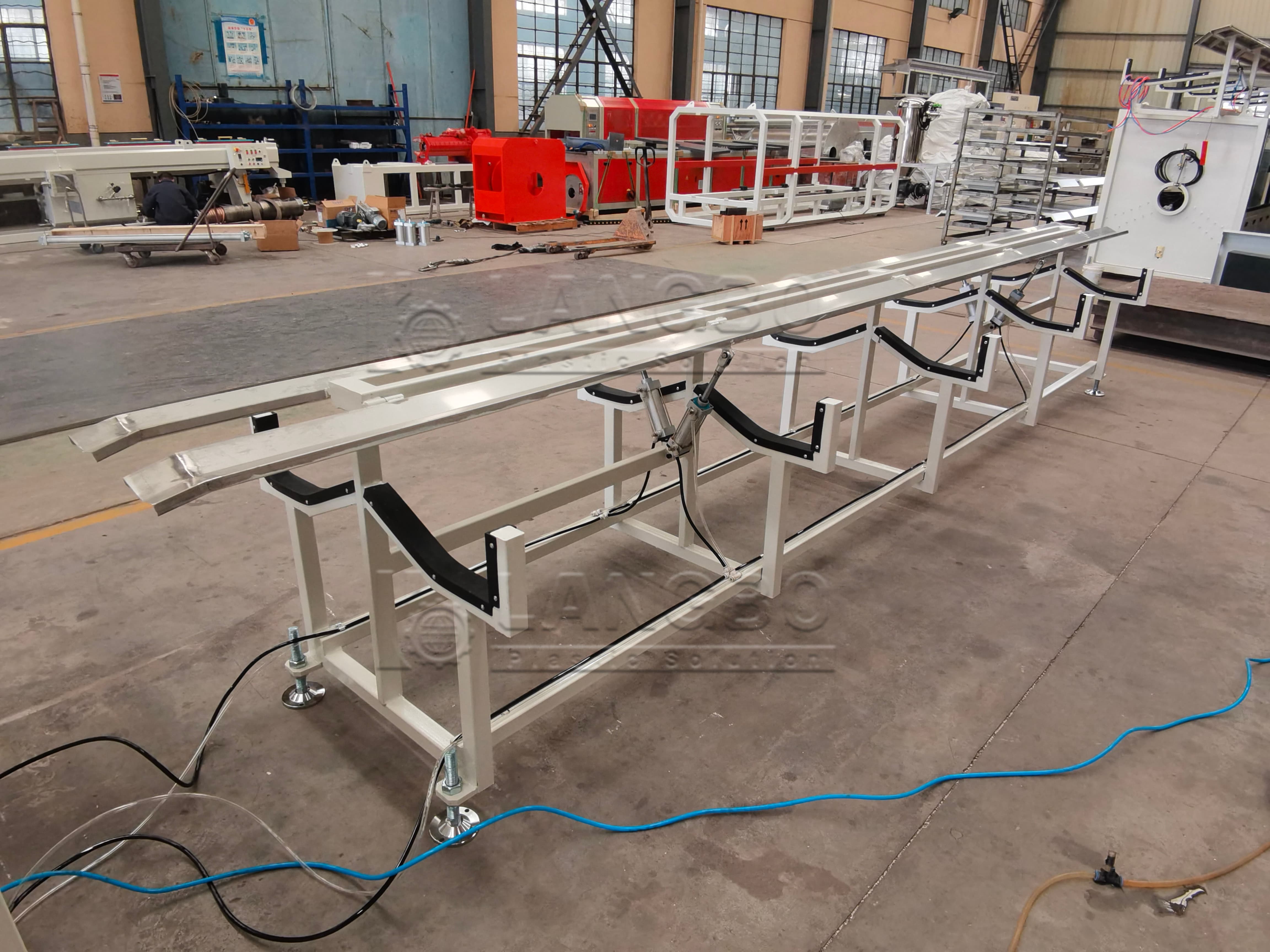

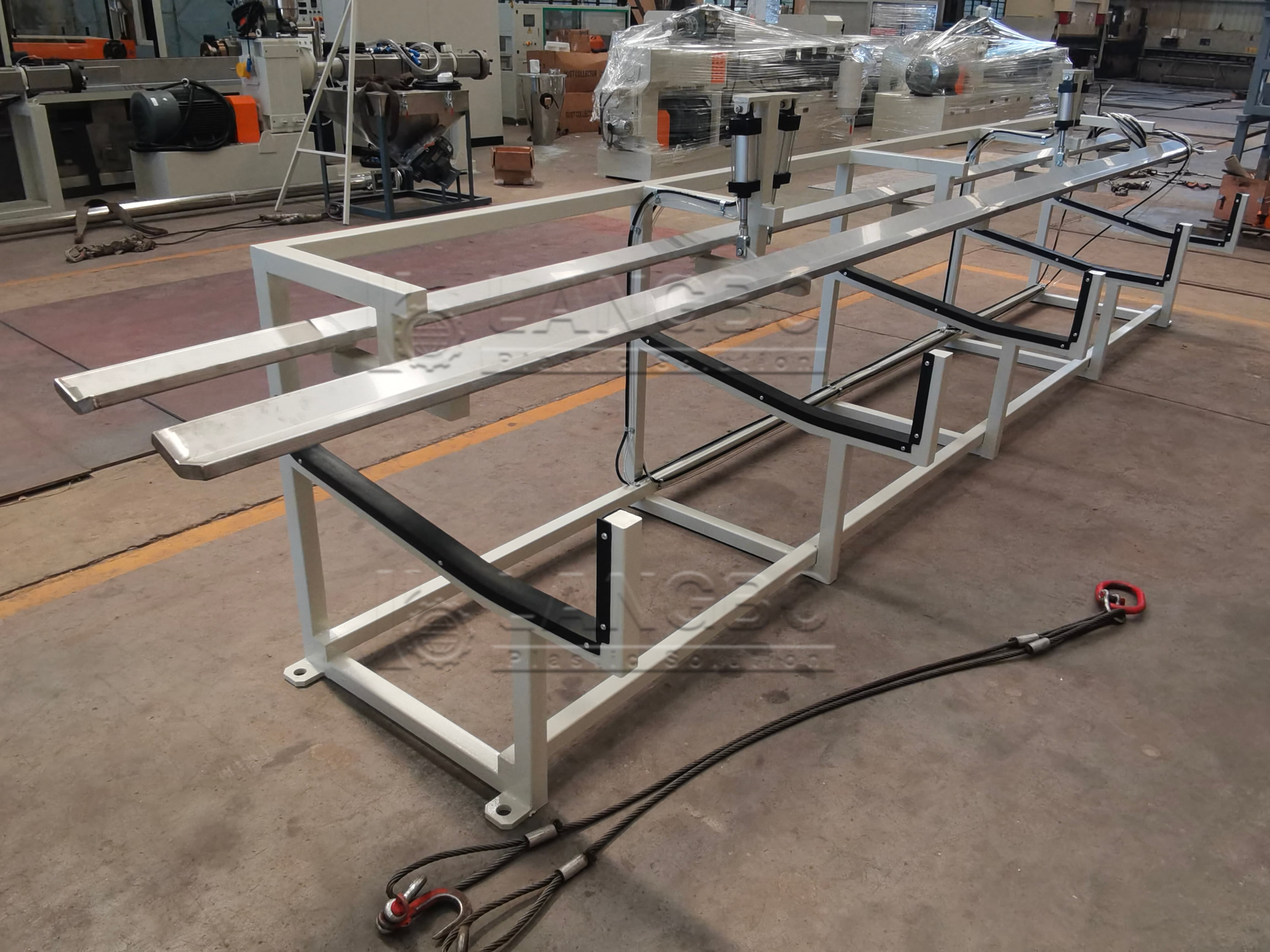

Stable stacker structure and pneumatic driven for pipe reloading
Moving action controlled by PLC program

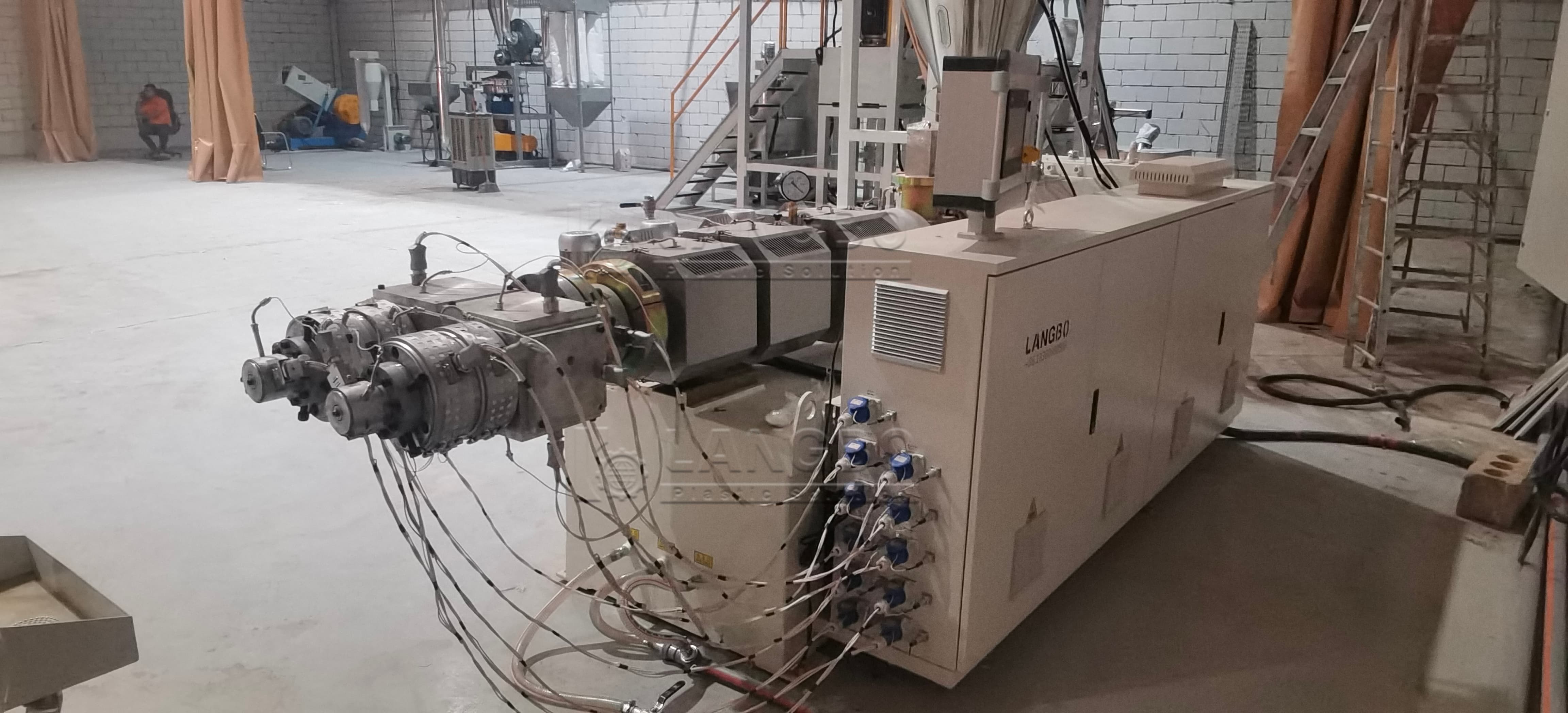

Separate control for both extrusion strand
Two heating position for on-time belling by high line speed
Energy saving by automatic switch of heating element
Customized cooling concept based on production requirement
Tailored Solution
Model
50A
50B
63B
110C
Pipe Range (mm)
16-40
16-50
16-63
16-110
Screw Model
51/105
65/132
65/132
80/156
Production Speed(m/min)
6x2
8x2
10x2
10x2
