PVC Braided Pipe Line
"The braided pipe line runs smoothly with stable output. The braiding layer is uniform and well bonded with the inner and outer PVC layers. "
Highlights
Stable extrusion for inner and outer PVC layers
Uniform braiding structure with consistent mesh density
Reliable synchronization between extrusion and braiding units
Accurate pipe diameter control during continuous production
Suitable for long-term and steady production operation
Tailored Solution
01.

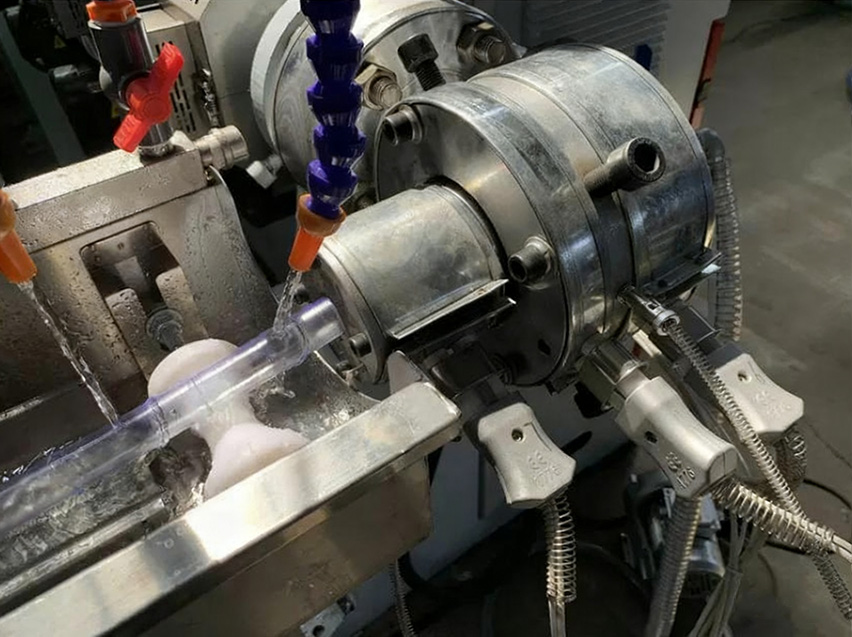

Matched extrusion system for multi-layer pipe structure
According to the customer’s pipe specification and material formulation, the extrusion units for inner and outer layers were selected to ensure stable melt flow and consistent wall thickness during continuous operation.
02.

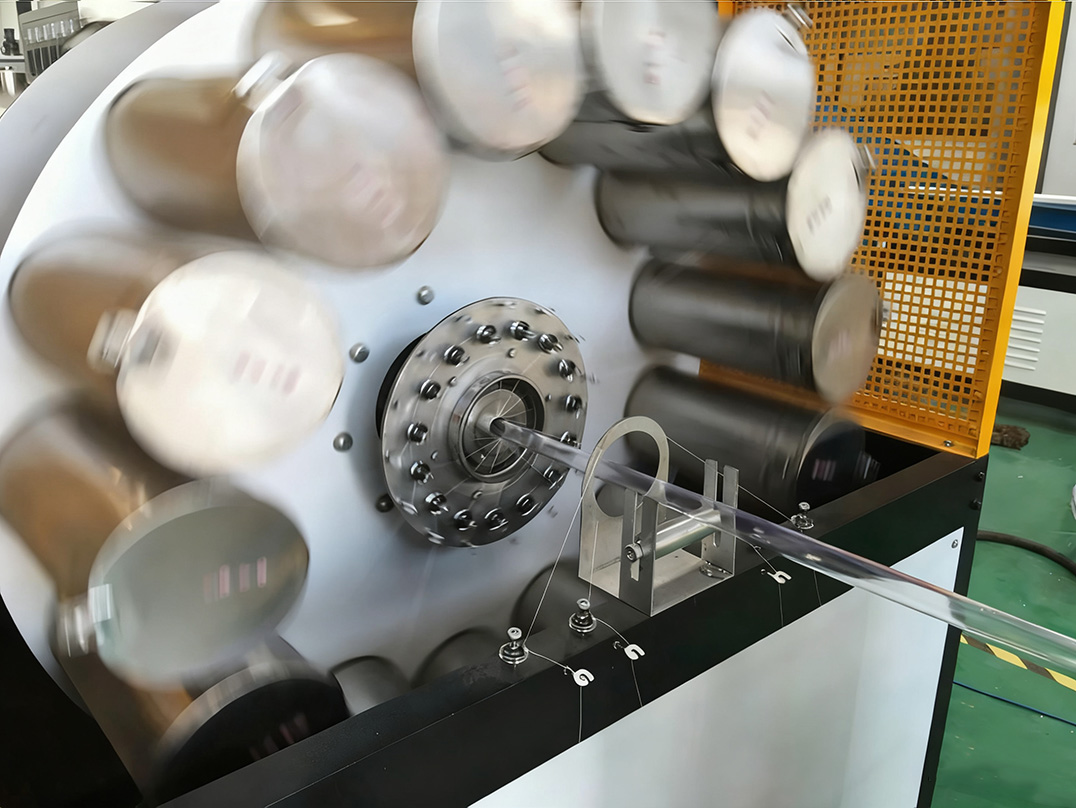

Braiding unit adapted to pipe size and reinforcement requirement
The braiding machine configuration was adjusted based on the required mesh density and pipe diameter range. Stable braiding speed and tension control ensure uniform reinforcement without damaging the inner pipe surface.
03.

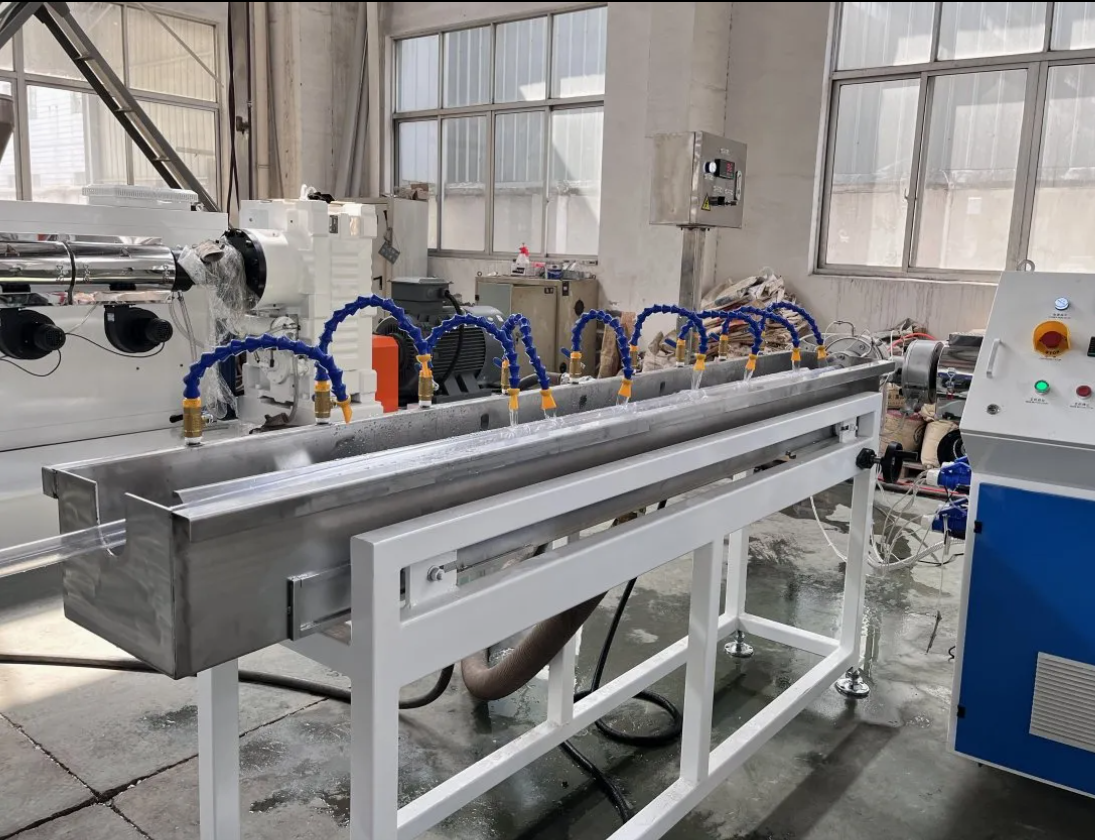

Cooling and haul-off coordination for stable pipe forming
The cooling and haul-off parameters were matched with the extrusion and braiding process to maintain pipe roundness and dimensional stability. This coordination supports smooth operation and reduces adjustment during production.
